Description

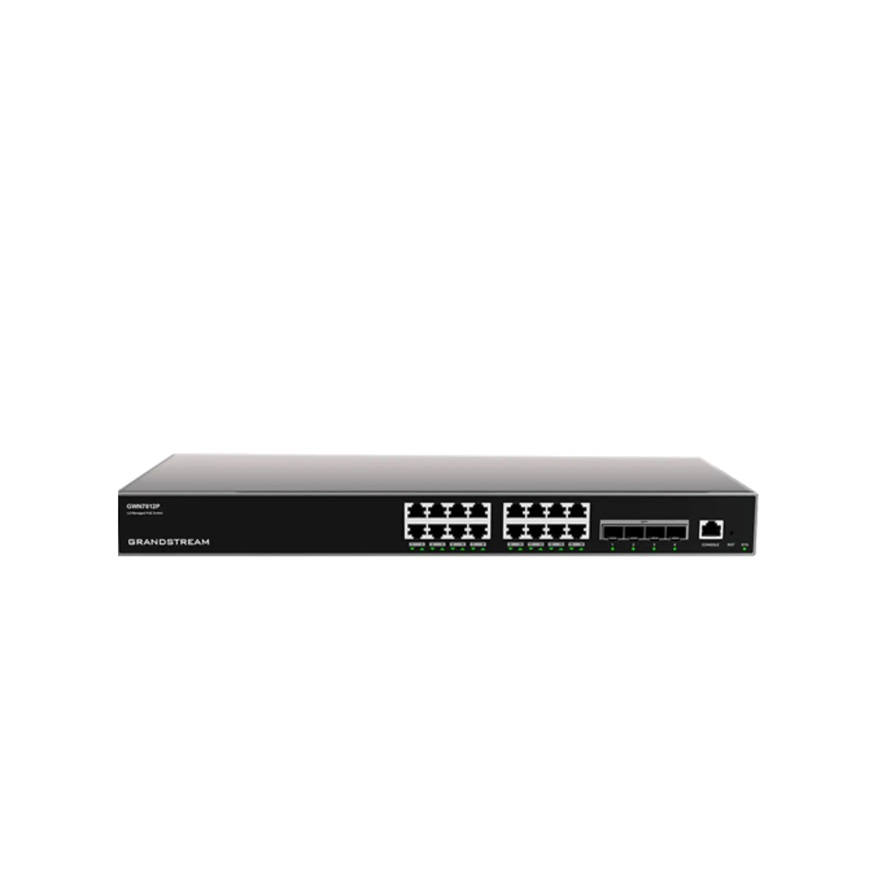

GWN7812P Managed PoE Switch

The GWN7810 series are Layer 3 managed network switches that allow medium-to-large enterprises to build scalable, secure, high performance and smart business networks that are fully manageable. It supports advanced VLAN for flexible and sophisticated traffic segmentation, advanced QoS for prioritization of network traffic, IGMP/MLD Snooping for network performance optimization, and comprehensive security capabilities against potential attacks. The PoE models provide smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints. GWN7810 series can be managed in a number of ways, including the local Web user interface of the GWN7810 series switch and CLI, the command-line interface. The series is also supported by GWN series routers, GDMS Networking and GWN Manager, Grandstream’s cloud and on-premise network management platform. The GWN7810 series are the best value enterprise-grade managed network switches for medium-to-large businesses..



Grandstream GWN7812P Technical Specifications

 Network Protocol

• IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s,
  IEEE 802.3az, IEEE 802.3ad, IEEE 802.3AB, IEEE 802.1p, IEEE 802.1D, IEEE 802.1x

Memory

• 256MB RAM
• 128MB Nand Flash, 8MB Nor Flash

 Jumbo Frame(Bytes)

•  12288

 PoE Standards

•  IEEE 802.3af/at

Gigabit Ethernet Ports

• 16

 10Gigabit SFP+ Ports

• 4
  Note: Support DAC cable, and must be ≤ 5m

 Maximum no. of Supported Modules

• SM-10G: 4
• MM-10G: 4
• RJ45-10G: 2

Console

• 1

# of PoE Ports

• 16

Link Aggregation

• 32

External Redundant Power Supply( RPS)

• N/A

Max Output Power per PoE Port

• 30W

 Max Total PoE Output Power

• 240W

 PoE Standards

• IEEE 802.3af/at

 Surge Protection

• ± 6KV CM and DM for power
• ± 4KV CM for network ports

ESD

• ± 12KV for contact discharge

 Auxiliary Ports

• 1x Reset Pinhole

 Forwarding Mode

• Store-and-forward

 Total non-blocking throughput

• 56Gbps

 Switching Capability

• 112Gbps

Forwarding Rate

• 83.328Mpps

 Packet Buffer

• 12MB

Network Latency

•  Avg<4µs

Stacking

• Yes, Up to 4 devices

Switching

• 16K MAC addresses, including static, dynamic, filtering and sticky MAC address
• 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, MAC-based VLAN, protocol-base VLAN, QinQ
• Private VLAN
• Voice VLAN including auto voice VLAN, tagged OUI and untagged OUI
• 16 VLAN virtual interface with 9216 MTU
• GVRP (pending)
• Spanning tree, 16 instances for STP/RTSP/MSTP/PVST(+)/RPVST(+)
• 1K ARP/NDP

Routing

• 512 (IPv4)/128 (IPv6) routes
• 32 (IPv4)/32 (IPv6) static routing
• Dynamic routing, including RIP, RIPng, OSPF, OSPFv3 and BGP
• Routing Policy

Multicast

• IGMP Snooping with IGMPv2 and IGMPv3, 256 IGMP Snooping groups
• MLD Snooping with MLDv1 and MLDv2, 256 MLD Snooping groups
• MVR

QoS/ACL

• Port priority
• Priority mapping
• Queue scheduling, including SP, WRR, WFQ, SP-WRR and SP-WFQ
• Traffic shaping
• Rate limit
• 4K ACL for Ethernet, IPv4 and IPv6

DHCP

• DHCP server, DHCP relay, DHCP Option 82, 60, 160 and 43

Maintenance

• Fan and PWR/RPS monitoring
• CPU and memory monitoring
• SNMP including SNMPv1, SNMPv2c, SNMPv3
• RMON
• LLDP&LLDP-MED
• Backup and restore
• Syslog
• Diagnostics including Ping, Traceroute, Mirroring including SPAN and RSPAN, UDLD(TBD) and copper test
• Upgrade via FTPS / TFTP / HTTP / HTTPS or local upload, mass provisioning using DHCP Option / TR-069 (pending) / GDMS Networking / GWN Manager / GWN Series Routers

Security

• User hierarchical management and password protection, HTTPS, SSH, Telnet
• Identity authentication including 802.1X and MAC authentication
• AAA authentication including RADIUS, TACACS+
• Storm control
• Port isolation, port security, sticky MAC
• Filtering MAC address
• IP/IPv6 source guard, DoS attack prevention, ARP inspection
• DHCP/DHCPv6 Snooping
• Loop protection including BPDU protection, root protection and loopback protection
• Kensington Security Slot (Kensington Lock) support

Mounting

• Desktop, Wall-Mount, or Rack-Mount(rack-mounting kits included)

System LEDs

•  1x tri-color LED for device tracking and status indication

Power Supply LEDs

• N/A

 Data Transferring LEDs

• 20x green-color LEDs

 PoE Powered LEDs

• 16x yellow-color LEDs

Fan

• 2

Environmental

• Operation: 0°C to 45°C, humidity 10-90% RH(Non-condensing)
• Storage: -10°C to 60°C, humidity: 5% to 95% RH(Non-condensing)

Dimensions (L x W x H)

• 440mm(L)x200mm(W)x44mm(H)

Unit Weight

•  3.03Kg

Package Content

• 1x Switch, 1x 1.2m(10A) AC Cable, 1x 25cm Ground Cable, 4x Rubber Footpads, 1x Power Cord Anti-Trip, 8x Screws (KM 3*6), 1x Quick Installation Guide, 1x Console Cable(Optional)
•  2x Rack-Mounting Kits

Compliance

•  FCC, CE, RCM, IC, UKCA
