Description

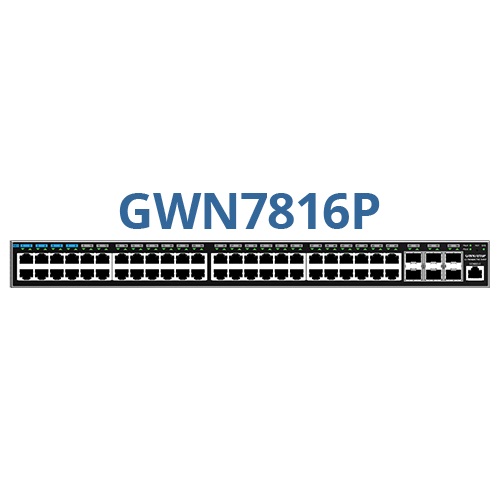

GWN7816P Managed PoE Switch

The GWN7816(P) are 48-port Layer 3 managed network switches that allow medium-to-large enterprises to build scalable, secure, high performance and smart business networks that are fully manageable. It supports advanced VLAN for flexible and sophisticated traffic segmentation, advanced QoS for prioritization of network traffic, IGMP/MLD Snooping for network performance optimization, and comprehensive security capabilities against potential attacks. The GWN7816P provids smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints. The GWN7816(P) can be managed in several ways, including the local Web user interface of the switch, and CLI, the command-line interface. It is also supported by GDMS Networking and GWN Manager, Grandstream’s cloud and on-premise network management platform, and GWN Series Router. With an advanced set of features, comprehensive security protection, and flexible management options, the GWN7816(P) is ideal for enterprises and medium-to-large businesses who require high-performance networks with maximum capacity and control.



Grandstream GWN7816P Technical Specifications

 Network Protocol

• IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s,
  IEEE 802.3az, IEEE 802.3ad, IEEE 802.3AB, IEEE 802.1p, IEEE 802.1D, IEEE 802.1x

 PoE Standards

•  IEEE 802.3af/at/bt

Gigabit Ethernet Ports

• 48

 10Gigabit SFP+ Ports

• 6
  Note: Support DAC cable, and must be ≤ 5m

 Maximum no. of Supported Modules

• SM-10G: 6
• MM-10G: 6
• RJ45-10G: 3

Console

• 1

# of PoE Ports

• 48

PSUs

•  1 PSU of 920W by default, support 1 Hot swap PSU(Purchased Separately

Max Output Power per PoE Port

•  60W(1-8,PoE++

 Max Total PoE Output Power

•  740W with 1 PSU

 PoE Standards

•  IEEE 802.3af/at/bt

 Surge Protection

• ± 4KV CM and ± 2KV DM for power
• ± 4KV CM for network ports

ESD

• ± 12KV for contact discharge

 Auxiliary Ports

• 1x Reset Pinhole

 Forwarding Mode

• Store-and-forward

 Total non-blocking throughput

• 108Gbps

 Switching Capability

• 1216Gbps

Forwarding Rate

• 160.704Mpps

 Packet Buffer

• 16Mb

Network Latency

•  Avg<4µs

Switching

• 32K MAC addresses, including static, dynamic, filtering and sticky MAC address
• 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, MAC-based VLAN, protocol-based VLAN, QinQ
• Private VLAN
• Voice VLAN including auto voice VLAN, tagged OUI and untagged OUI
• 32 VLAN virtual interface with 9216 MTU
• 2K ARP/NDP
• GVRP(pending)
• 32 link aggregation
• Spanning tree, 64 instances for STP/RTSP/MSTP/PVST(+)/RPVST(+)
• ERPS (pending)

Routing

• 12K(IPv4)/4K(IPv6) routes
• 32(IPv4)/32(IPv6) static routing
• Policy routing (pending)
• Dynamic routing, including RIP, RIPng, OSPF, OSPFv3 and BGP
• Routing Policy
• VRRP(pending)

Multicast

• IGMP Snooping with IGMPv2 and IGMPv3, 256 IGMP Snooping groups
• MLD Snooping with MLDv1 and MLDv2, 256 MLD Snooping groups
• MVR

QoS/ACL

• Port priority
• Priority mapping
• Queue scheduling, including SP, WRR, WFQ, SP-WRR and SP-WFQ
• Traffic shaping
• Rate limit
• 4K ACL for Ethernet, IPv4 and IPv6

DHCP

• DHCP server, DHCP relay, DHCP Option 82, 60, 160 and 43

Maintenance

• CPU and memory monitoring
• Fault detection and alarm for power supply and fan
• SNMP including SNMPv1, SNMPv2c, SNMPv3
• RMON
• LLDP&LLDP-MED
• Backup and restore
• Syslog
• Diagnostics including Ping, Traceroute, Mirroring including SPAN and RSPAN, UDLD(TBD) and copper test
• Upgrade via FTPS / TFTP / HTTP / HTTPS or local upload, mass provisioning using DHCP Option / TR-069 (pending) / GDMS Networking / GWN Manager / GWN Series Routers

Security

• User hierarchical management and password protection, HTTPS, SSH, Telnet
• Identity authentication including 802.1X and MAC authentication
• AAA authentication including RADIUS, TACACS+
• Storm control
• Port isolation, port security, sticky MAC
• Filtering MAC address
• IP/IPv6 source guard, DoS attack prevention, ARP inspection
• DHCP/DHCPv6 Snooping
• Loop protection including BPDU protection, root protection and loopback protection
• Kensington Security Slot (Kensington Lock) support

Mounting

•  Desktop, or Rail-Mount (rack-mounting kits included

LEDs

• 1x tri-color LED for device tracking and status indication
• 2x bi-color LEDs for per power supply PSU1/2
• 54x green-color LEDs for data transferring
• 48x yellow-color LEDs for PoE powered (GWN7816P)

Fan

• 4

Environmental

• Operation: 0°C to 45°C, humidity 10-90% RH(Non-condensing)
• Storage: -10°C to 60°C, humidity: 5% to 95% RH(Non-condensing)

Dimensions (L x W x H)

•  440mm(L)x380mm(W)x44mm(H)

Unit Weight

• 6Kg

Package Content

• 1x Switch
• 1x 1.2m AC Cable
• 1x 25cm Ground Cable
• 4x Rubber Footpads
• 1x Power Cord Anti-Trip
• 2x Front Rack-Mounting Kits
• 2x Rear Rack-Mounting Kits
• 2x Rear Slideways
• 16x Screws(KM 3*6
• 1x Simplified Quick Installation Guide
• 1x Regulatory Paper

 Hot-Swappable PSU

• Available for Separate Purchase

Compliance

•  FCC, CE, RCM, IC, UKCA
