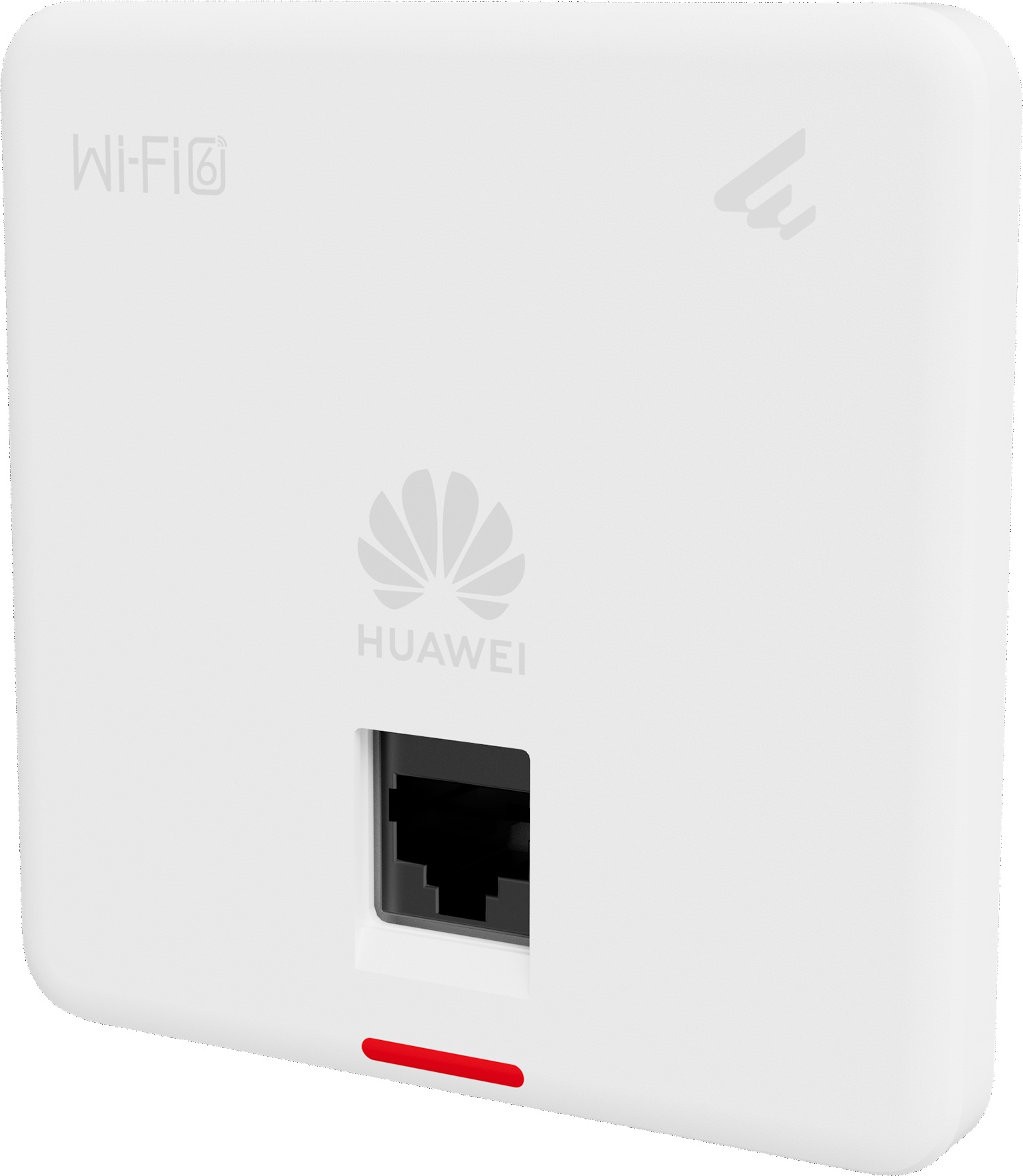

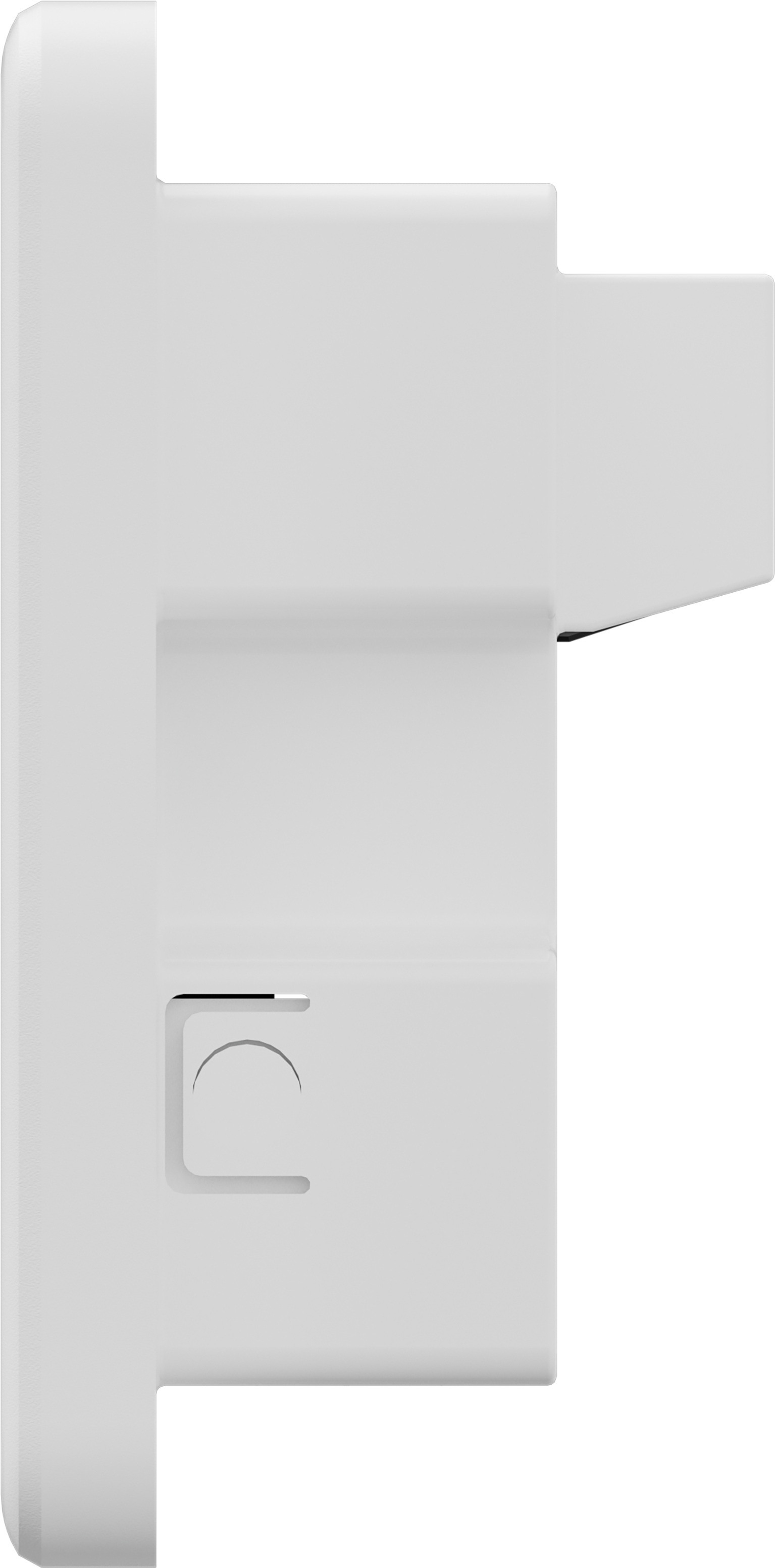

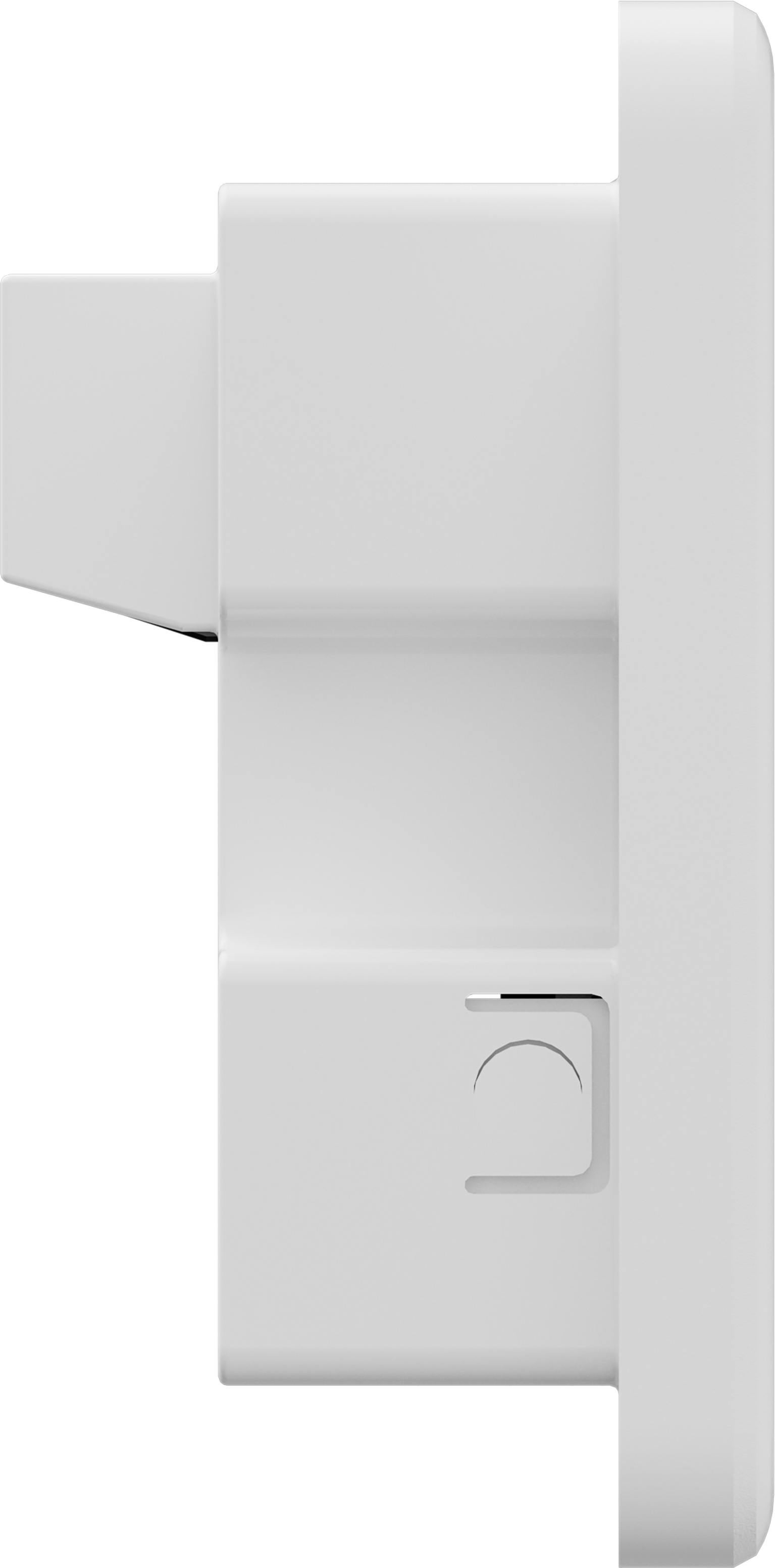

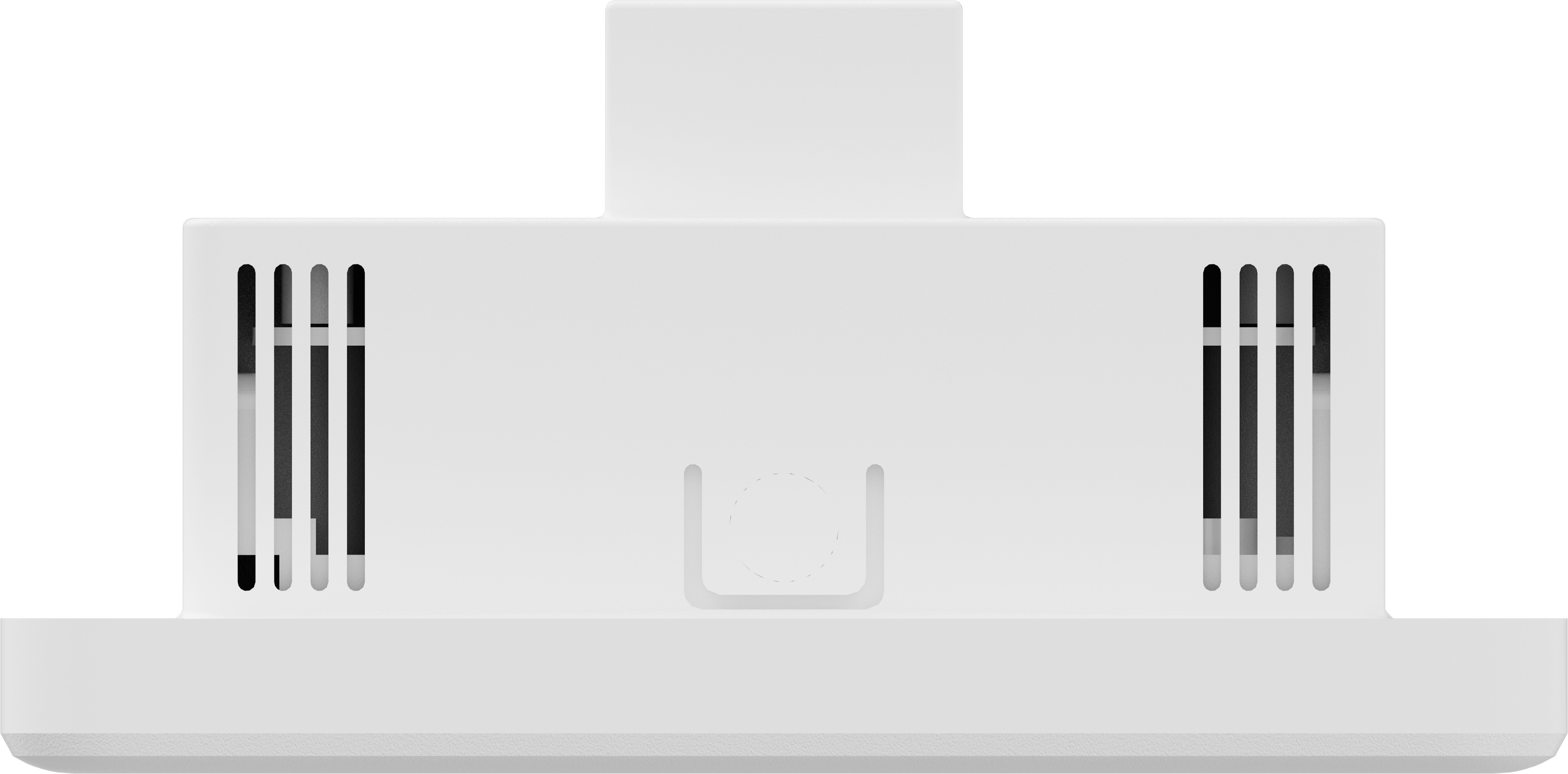

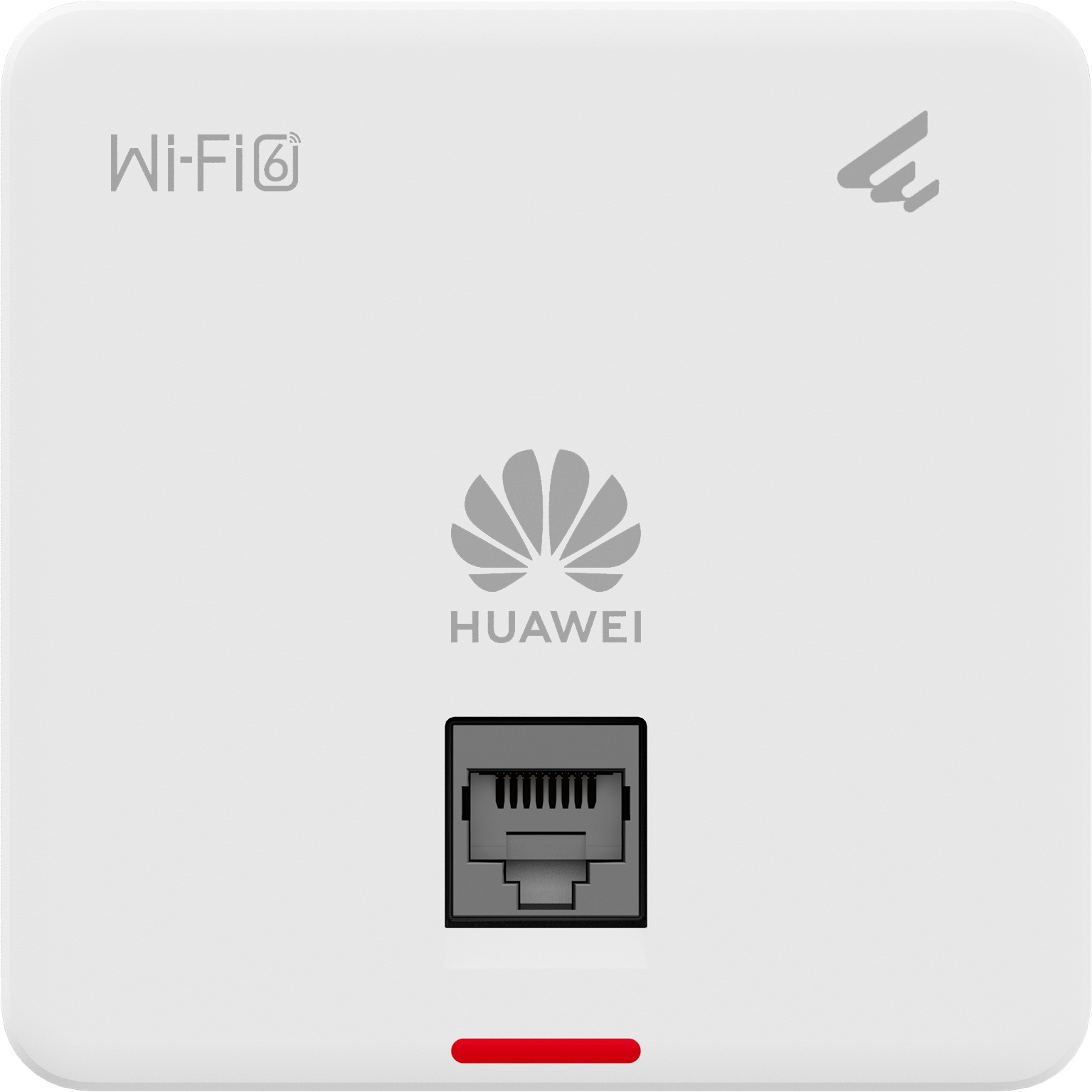

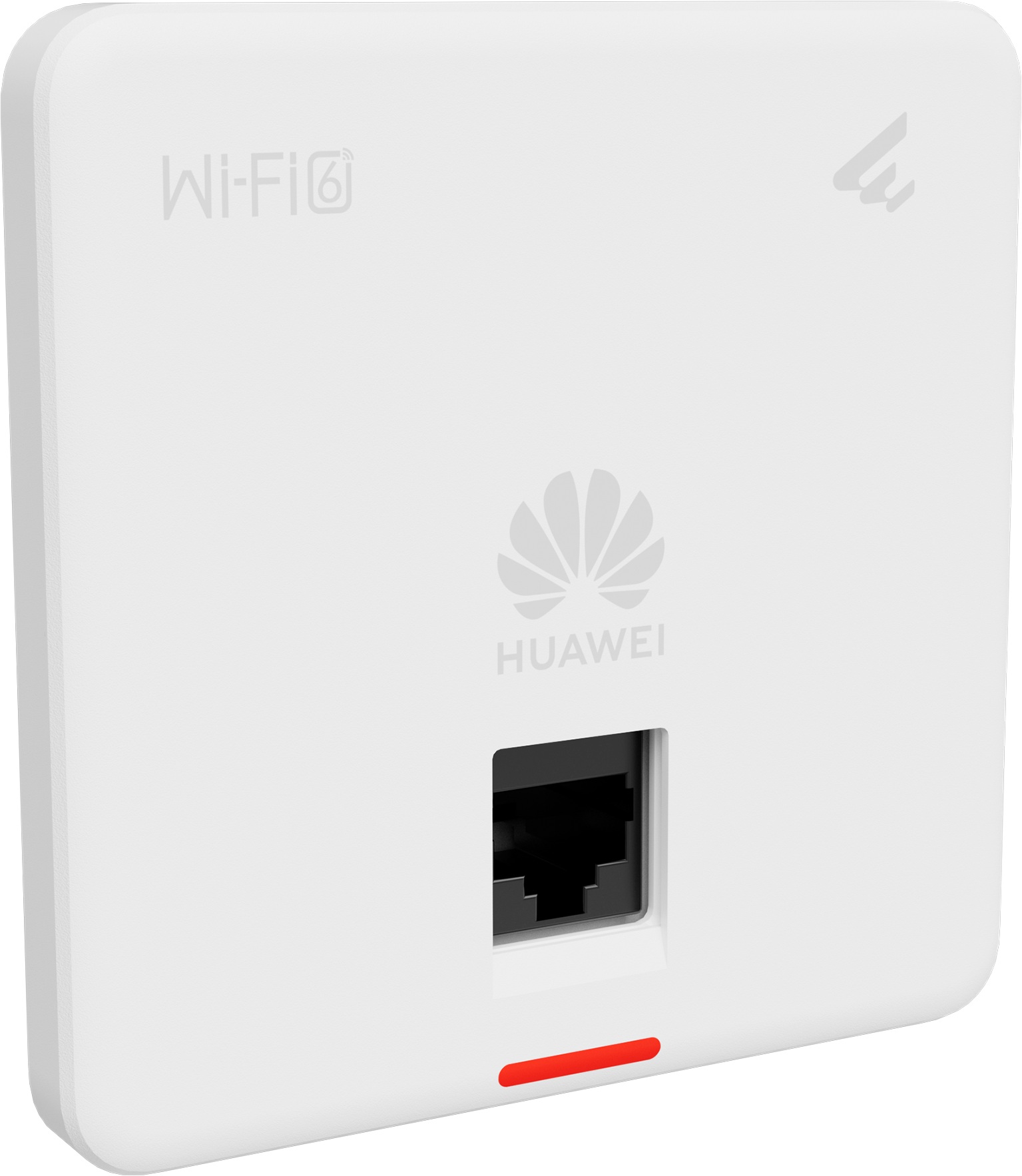

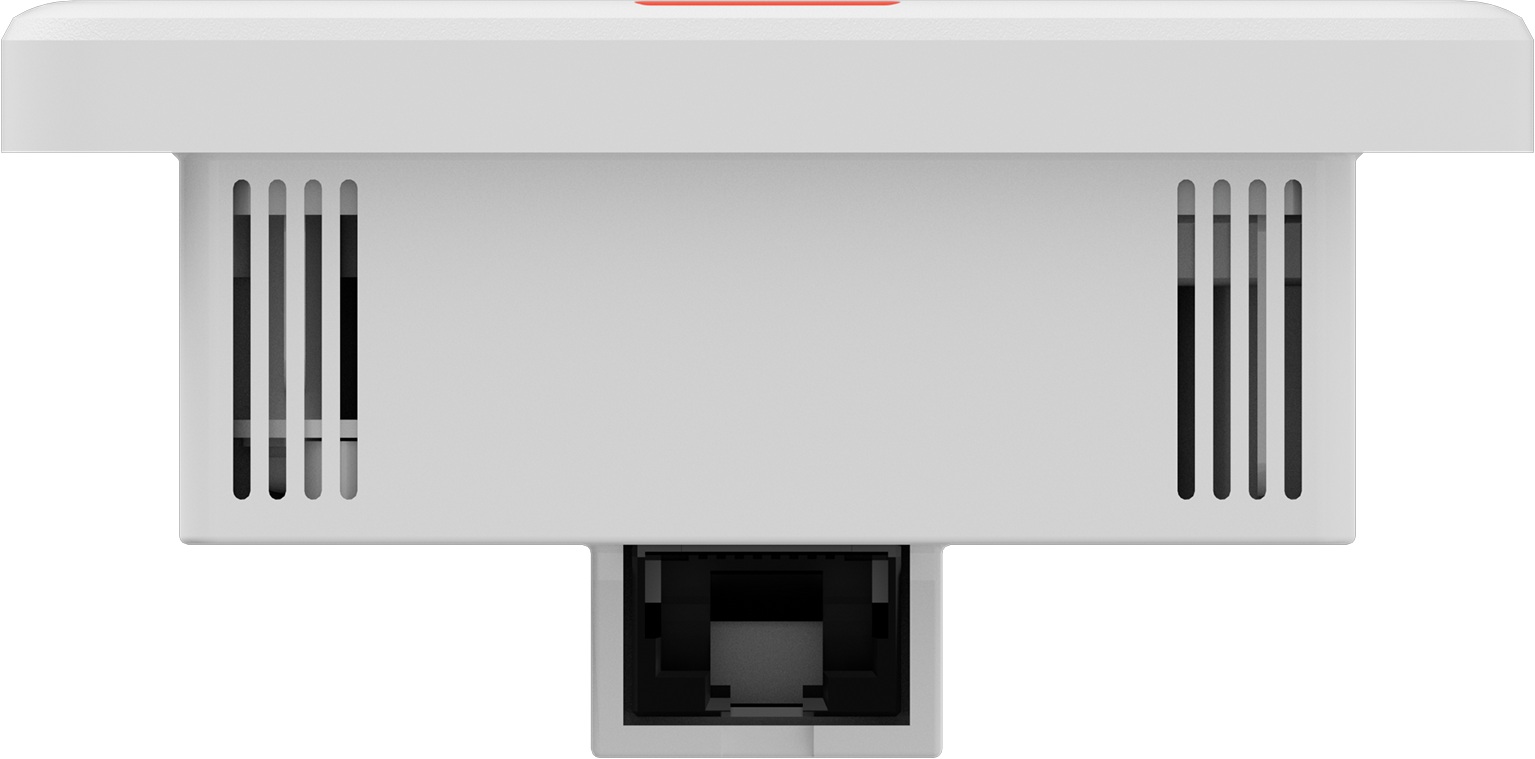

Huawei AP160 – Dual Band – Wi-Fi 6 – Wall Plate Indoor Access Point

Huawei AP160 – Dual Band – Wi-Fi 6 – Wall Plate Indoor Access Point

Rp 1.698.300

  • The AP can provide wireless services through 2.4 GHz (2×2 MIMO) and 5 GHz (2×2 MIMO) radios.
  • The AP has one GE electrical port in the uplink and one GE electrical port in the downlink.
  • Leveraging an intelligent switchover algorithm, built-in smart antennas dynamically adjust signal coverage directions and strengths. This perfectly adapts to environment changes while maintaining accurate and stable coverage for STAs anywhere, significantly improving wireless experience.
  • It can work in Fit, Fat, or cloud mode.
SKU: KSS-AP160 Categories: , , Tag:

Description

Huawei eKitEngine AP160 is a Wi-Fi 6 (802.11ax) wall plate 86×86 access point (AP) with an 8 mm ultra-thin panel. It provides services
simultaneously on the 2.4 GHz (2×2 MIMO) and 5 GHz (2×2 MIMO) frequency bands, achieving a maximum device rate of 1.775 Gbps. This AP features high bandwidth, high concurrency, and compact size, facilitating flexible deployment and saving customer investment. It is ideal for indoor coverage scenarios such as enterprise workplaces, commercial real estates, and budget chain hotels.

Product Information

  • Model: AP160 (Wi-Fi 6 indoor access point, dual-band 2×2, smart antenna, PoE powered)
  • Part Number: 50086816

Ports

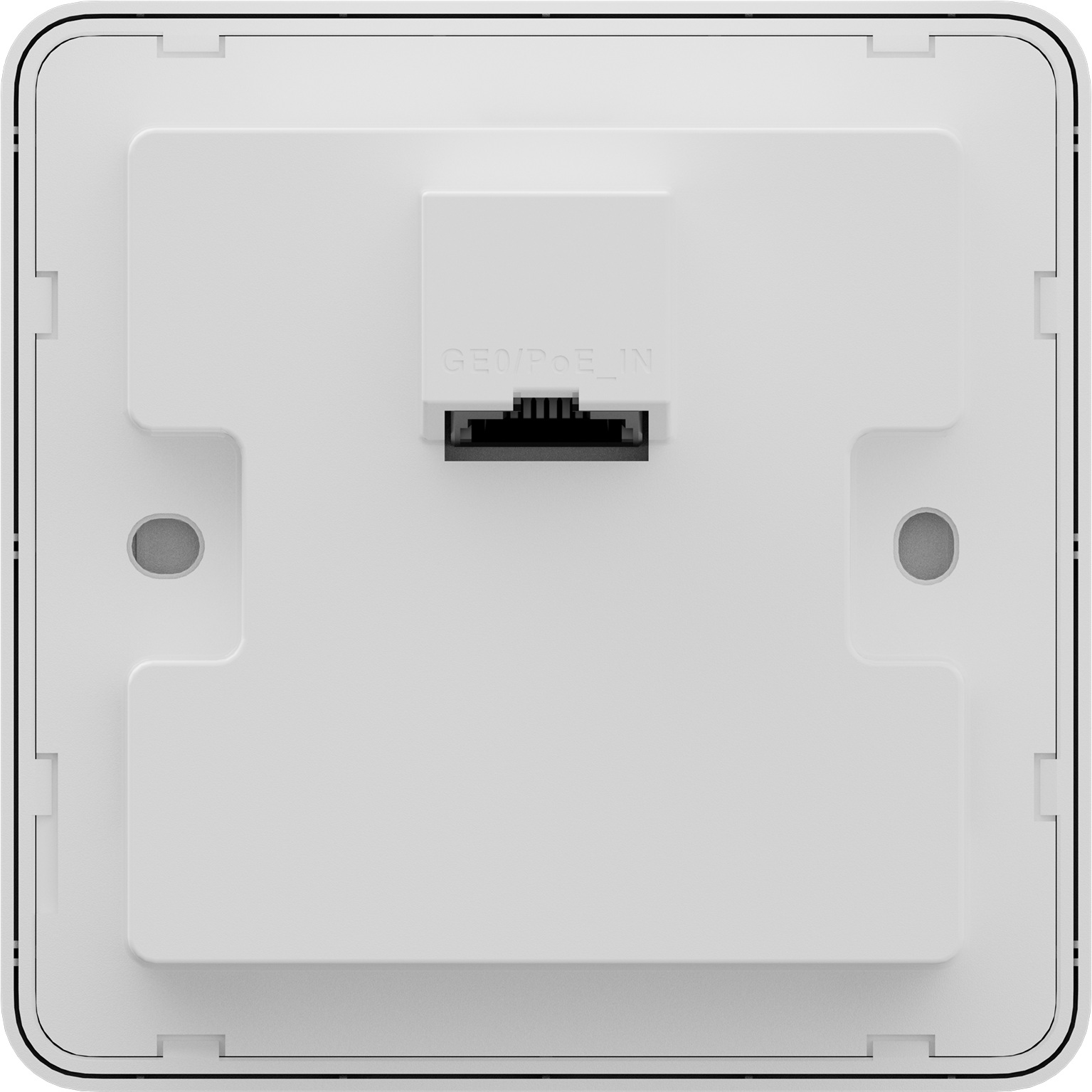

  • GE (RJ45) x2: 10M/100M/1000M auto-sensing Ethernet ports
  • Console Port: None
  • USB: Not supported
  • IoT Slot: Not supported
  • BLE: Not supported

Technical Specifications

  • Installation Type: Junction Box (86 mm)
  • Dimensions (without packaging): 86 mm × 86 mm × 42.5 mm (3.39 in × 3.39 in × 1.67 in)
  • Dimensions (with packaging): 98 mm × 117 mm × 73 mm (3.86 in × 4.61 in × 2.87 in)
  • Weight (without packaging): 0.14 kg (0.31 lb)
  • Weight (with packaging): 0.24 kg (0.53 lb)
  • Storage: NAND Flash 256 MB
  • Maximum Power Consumption: 9.1 W
  • Maximum Heat Dissipation: 29.5 BTU/hour
  • Power Supply Mode: PoE (IEEE 802.3af)
  • Input Voltage Range: PoE 802.3af
  • Service Port Surge Protection: PoE port, common mode 4 kV (1.2/50 μs, 42 ohms), criterion C
  • PoE OUT: Not supported
  • Operating Frequency Band: 2.4 GHz, 5 GHz
  • Radio Number: 2
  • MIMO Spatial Streams:
    • 2.4 GHz: 2×2
    • 5 GHz: 2×2
  • Wi-Fi Standards:
    • 2.4 GHz: 802.11b/g/n/ax
    • 5 GHz: 802.11a/n/ac Wave 2/ax
  • Radio Interface: Built-in smart antennas
  • Antenna Gain:
    • 2.4 GHz: 3 dBi/chain (peak), 3 dBi combined
    • 5 GHz: 2 dBi/chain (peak), 1 dBi combined
  • Maximum Transmit Power:
    • 2.4 GHz: 17 dBm/chain, 20 dBm combined
    • 5 GHz: 17 dBm/chain, 20 dBm combined
  • Single Radio Transmit Power:
    • 2.4 GHz: 0 to 17 dBm/chain
    • 5 GHz: 0 to 17 dBm/chain
  • Long-Term Operating Temperature: 0°C to 40°C (32°F to 104°F) (Above 1800 m altitude, max temperature decreases by 1°C per 300 m increase)
  • Storage Temperature: –40°C to +70°C (–40°F to +158°F)
  • Operating Relative Humidity: 5% to 95% RH, non-condensing
  • Operating Altitude: –60 m to +5000 m
  • Atmospheric Pressure: 53 kPa – 106 kPa (ETSI 300 019-2-3)
  • Ground: Floating ground
  • MTBF: 446 years
  • MTTR: 2 hours
  • Frequency Stability: ±20 ppm
  • 802.3bt Power Supply: No function is limited
  • 802.3at Power Supply: No function is limited
  • 802.3af Power Supply: No function is limited
  • DC Power Supply: Not supported

Additional information

Weight 0.24 kg
Dimensions 9.8 x 11.7 x 7.3 cm
Brand

#Gigabit Port

Wifi Series/Generations

Wi-Fi 6
