Description

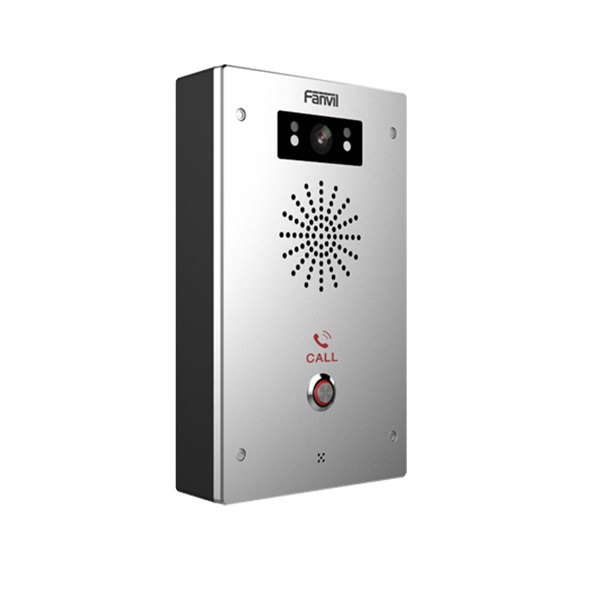

Fanvil i16SV SIP Intercom

The Fanvil i16SV SIP Intercom is designed for outdoor environments with high reliability, HD Audio/Video, and IP65/IK10 protection grade. It combines security, audio/video intercom and broadcasting functionalities and offers the best communication solution for users.

Fanvil i16SV Technical Specifications

General

• 2 SIP lines
• Speed dial
• Linkage with IP camera to realize video intercom
• Oral announcement of the IP address(in English)
• MP3 broadcasting
• Support programmable DSS key
• Support mono active speaker
• Talkback recording output
• Switch signal input and output
• Support TF card
• PoE enabled

Device function

• Auto-answering
• Programmable DSS keys
• Through button or web page volume adjustment
• Network time synchronization
• Time Plan (task management)
• Incoming call multicast
• Dynamic multicast function
• HTTP API
• Action URL / Active URI

Call functions

• Call out / answer / reject
• Call waiting
• Intercom, Multicast
• Speed dial
• Anonymous call (Hide caller ID)

Audio

• Narrowband codec: G.711A/U, G.729A/B, iLBC, G.723, G.726-32K
• Wideband codec: G.722, Opus
• Full-duplex hands-free speakerphone with AEC
• DTMF: In-band, Out-of-Band (RFC2833/ SIP INFO)

Video

• Sensor: 1/2.8” color CMOS
• Pixels: 2 Mega
• Video coding: H.264
• Resolution: 720P/1080P
• Minimum illumination: 0.1Lux, support for infrared illumination
• Viewing angle: Diagonal: 126° / Horizontal: 98° / Vertical: 65°

Networking

• Physical: 10/100 Mbps Ethernet
• IP mode:IPv4/IPv6/IPv4&IPv6
• IP configuration: Static IP / DHCP / PPPoE
• VPN: L2TP / OpenVPN
• VLAN

Protocols

• SIP2.0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• IPv6
• PPPoE
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069

Deployment & Management

• Auto-provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
• Web management portal
• Web-based packet dump
• Configuration export / import
• Firmware upgrade
• Syslog

Physical Specification

• 1 DSS key (support LED)
• RJ45 port x1: connect the network
  • ➢ PoE enabled
• Line out port x1: connect the active speaker
  • ➢ Out: adjustable by volume, max up to1.2Vpp.
  • ➢ Port: terminal socket
• Recording output port x1: connect audio device
  • ➢ Out: mixed output of local microphone voice and call voice recording
  • ➢ Impedance: 15 Ohm
  • ➢ Port: terminal socket
• Short circuit input and output port x2 (built-in relay)
  • ➢ Relay: MAX DC30V / 2A, AC125V / 0.5A
  • ➢ Active switching output: 12V/500mA DC(only 1 relay support)
  • ➢ Port: terminal socket
• Tamper alarm switchx1
• TF card slot x1: connect TF card
• DC port x1: DC power input
  • ➢ DC power input: DC12V~24V/1A
  • ➢ Port: 2 Pin terminal socket
• PoE level: Class 3
• Protection level:IP65 and IK10
• Housing material: aluminum alloy shell
• Installation: wall-mounted
• Working temperature: -30℃ ~ 60℃
• Storage temperature: – 40℃ ~ 70℃
• Working humidity: 10~95%
• N.W/CTN: 9.5kg
• G.W/CTN: 10.05kg

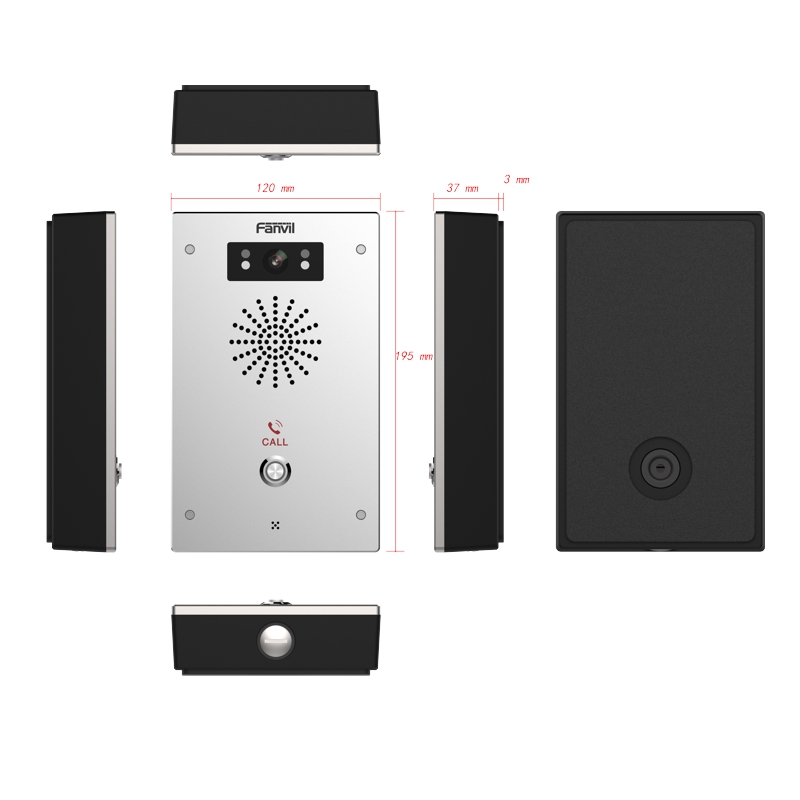

• Device dimensions: 195x120x40 mm
• Gift box dimensions: 260x165x62 mm
• Outer CTN dimensions: 348x328x280 mm (10 PCS)
