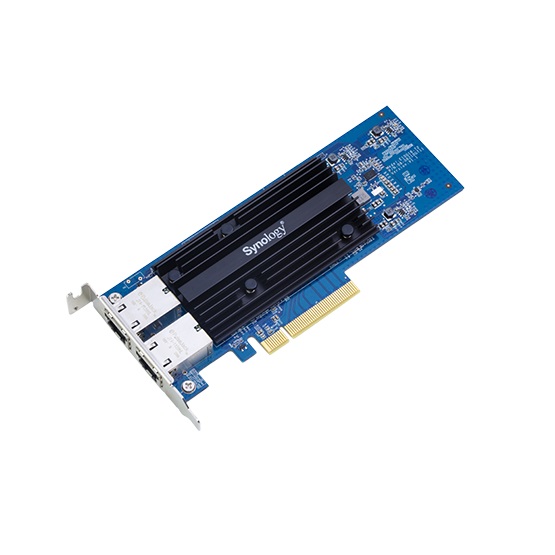

Synology E10G18-T2 – Dual port 10 Gigabit Base-T PCIe 3.0 x8

Synology E10G18-T2 – Dual port 10 Gigabit Base-T PCIe 3.0 x8

Rp 6.590.000

Synology E10G18-T1 Dual port 10 Gigabit Base-T PCIe 3.0 x8
Data Transfer Rates : 10 Gbps
Warranty : 5 Years

1 in stock

SKU: KSS-E10G18-T2 Categories: , , , Tag:

Description

E10G18-T2

Dual-port, high-speed 10GBASE-T add-in card for Synology servers

Achieve outstanding network performance with minimal effort

Enjoy a smooth migration to high-speed 10Gbps Ethernet. E10G18-T2 delivers superior transmission performance with the capability to offload packet processing and free up CPU resources for more tasks. It supports IEEE 802.3an/ab (10GBASE-T/1000BASE-T) and 802.3x with dual RJ-45 connectors, providing a total data rate of 20Gbps using standard CAT6 or better UTP cabling connections. Features such as Link Aggregation, Jumbo Frame, TSO, and TCP/UDP/IP Checksum offloading satisfy most workloads requiring high performance, making E10G18-T2 an ideal and economical solution for 10Gbps networking adoption.

5-year warranty

Built to handle intensive workloads, Synology network add-in-cards are backed by Synology's 5 year limited warranty.



SPECIFICATIONS

Hardware Specifications

General

Host Bus Interface PCIe 3.0 x8
  Bracket Height Low Profile and Full Height
  Size (Height x Width x Depth) 170.6 mm x 68.9 mm x 13.6 mm
  Operating Temperature 0°C to 40°C (32°F to 104°F)
  Storage Temperature -20°C to 60°C (-5°F to 140°F)
  Relative Humidity 5% to 95% RH
  Warranty 5 Years
  Notes The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)

Network

IEEE Specification Compliance
  • IEEE 802.3x Flow Control
  • IEEE 802.3ad Link Aggregation
  • IEEE 802.3ab Gigabit Ethernet
  • IEEE 802.3an 10Gbps Ethernet
  Data Transfer Rates 10 Gbps
  Network Operation Mode Full Duplex
  Supported Features
  • 9 KB Jumbo Frame
  • TCP/UDP/IP Checksum Offloading
  • TCP Segmentation Offload (TSO)

Compatibility

Applied Models

  • FS series:FS6400, FS3600, FS3400, FS3017, FS2017, FS1018, FS3410, FS2500
  • HD series:HD6500
  • SA series:SA3600, SA3400, SA6400, SA3200D
  • UC series:UC3200
  • 23 series:RS2423RP+, RS2423+, DS1823xs+
  • 22 series:RS822RP+, RS822+, DS3622xs+, DS2422+
  • 21 series:RS4021xs+, RS3621xs+, RS3621RPxs, RS2821RP+, RS2421RP+, RS2421+, RS1221RP+, RS1221+, DS1821+, DS1621xs+, DS1621+
  • 20 series:RS820RP+, RS820+
  • 19 series:RS1619xs+, RS1219+, DS2419+, DS2419+II, DS1819+
  • 18 series:RS3618xs, RS2818RP+, RS2418RP+, RS2418+, RS818RP+, RS818+, DS3018xs, DS1618+
  • 17 series:RS18017xs+, RS4017xs+, RS3617xs+, RS3617RPxs, RS3617xs, DS3617xs, DS3617xsII, DS1817+, DS1517+
  • 16 series:RS18016xs+
  • 15 series:RC18015xs+, DS3615xs
  • 14 series:RS3614xs+, RS3614RPxs, RS3614xs
  • 13 series:RS10613xs+, RS3413xs+
  • 12 series:RS3412RPxs, RS3412xs, DS3612xs
  • 11 series:RS3411RPxs, RS3411xs, DS3611xs
  Notes DSM version requirement: 6.2.1-23824 or later version

Notes:

  1. Model specifications are subject to change without prior notice.
  2. The figures are based on Synology internal testing. Each performance test is done individually. No other services or applications are processed at the same time.
  3. The actual performance may be lower than lab testing figure due to differences in server configuration, deployment, and the number of active operations.
  4. If usage requirements exceed the specifications above, please contact our regional partners for professional advice.



Additional information

Weight 0.7 kg
Dimensions 15 x 15 x 10 cm
Brand

Warranty

5
