Synology E10M20-T1 – Dual M.2 SSD and 10GbE adapter

Synology E10M20-T1 – Dual M.2 SSD and 10GbE adapter

Rp 6.290.000

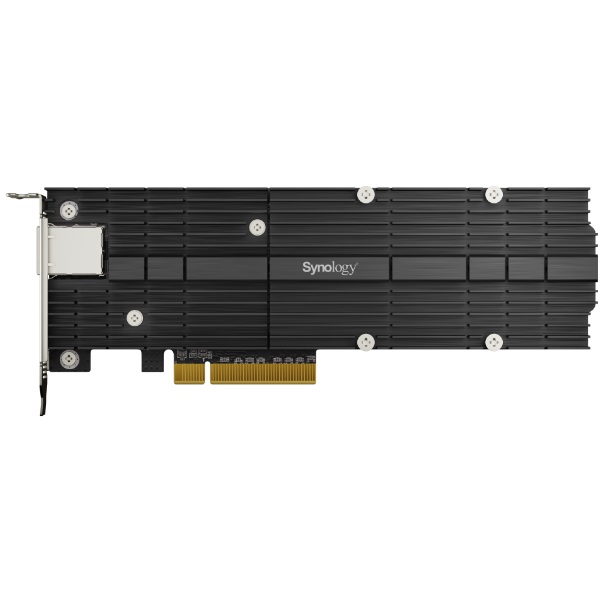

Synology E10M20-T1 Dual M.2 SSD and 10GbE adapter
Storage Interface : PCIe NVMe
Supported Form Factor : 22110 / 2280

1 in stock

SKU: KSS-E10M20-T1 Categories: , , , Tag:

Description

E10M20-T1

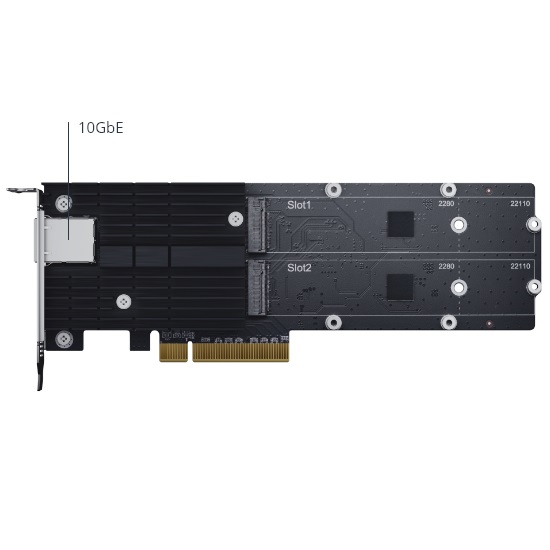

M.2 SSD & 10GbE combo adapter card for performance acceleration

10GbE bandwidth and M.2 SSD cache, all at once

Synology E10M20-T1 helps you boost I/O performance and network bandwidth simultaneously using just one PCIe expansion slot on your Synology NAS.

10GbE ready
Accelerate random I/O performance with the dual M.2 2280/22110 NVMe SSD slots.

NVMe enabled
Accelerate random I/O performance with the dual M.2 2280/22110 NVMe SSD slots.

Dedicated cache slots
Free up primary drive bays for data storage.

A perfect match with Synology SNV3000 series NVMe SSD

Install Synology SNV3000 series NVMe SSD on the E10M20-T1 adapter card for fast and streamlined cache acceleration, and take full advantage of Synology SSD’s enterprise-grade endurance, performance, and reliability with your Synology NAS.



SPECIFICATIONS

Hardware Specifications

General

Host Bus Interface PCIe 3.0 x8
  Bracket Height Low Profile and Full Height
  Size (Height x Width x Depth) 71.75 mm x 200.05 mm x 17.70 mm
  Operating Temperature 0°C to 40°C (32°F to 104°F)
  Storage Temperature -20°C to 60°C (-5°F to 140°F)
  Relative Humidity 5% to 95% RH
  Warranty 5 Years
  Notes The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)

Storage

Storage Interface PCIe NVMe
  Supported Form Factor 22110 / 2280
  Connector Type and Quantity M-key, 2 Slots

Network

IEEE Specification Compliance
  • IEEE 802.3x Flow Control
  • IEEE 802.3u Fast Ethernet
  • IEEE 802.3ab Gigabit Ethernet
  • IEEE 802.3bz 2.5Gbps / 5Gbps Ethernet
  • IEEE 802.3an 10Gbps Ethernet
  Data Transfer Rates 10 Gbps
  Network Operation Mode Full Duplex
  Supported Features
  • 9 KB Jumbo Frame
  • TCP/UDP/IP Checksum Offloading
  • Auto-negotiation between 100Mb/s, 1Gb/s, 2.5Gb/s, 5Gb/s, and 10Gb/s
  • TCP Segmentation Offload (TSO)
  • Large Send Offload (LSO)
  • Receive Side Scaling (RSS)
  • Generic Receive Offload (GRO)
  • Generic Segmentation Offload (GSO)

Compatibility

Applied Models

NVMe SSD
  • SA series:SA3600, SA3400, SA6400
  • 23 series:RS2423RP+, RS2423+
  • 22 series:RS822RP+, RS822+, DS3622xs+, DS2422+
  • 21 series:RS4021xs+, RS3621xs+, RS3621RPxs, RS2821RP+, RS2421RP+, RS2421+, RS1221RP+, RS1221+
  • 20 series:RS820RP+, RS820+
  • 19 series:DS2419+, DS2419+II, DS1819+
  • 18 series:RS3618xs, RS2818RP+, DS3018xs, DS1618+
  • 17 series:RS18017xs+, RS4017xs+, RS3617xs+, RS3617RPxs, DS3617xs, DS3617xsII
  Notes
  • DSM version requirement: 6.2.3-25426 or later version
  • DSM version requirement for RS18017xs+, RS4017xs+, RS3618xs, RS3617xs+, RS3617RPxs, DS3617xs and DS3617xsII: 7.0.1 or later version

Notes:

  1. Model specifications are subject to change without prior notice.
  2. The figures are based on Synology internal testing. Each performance test is done individually. No other services or applications are processed at the same time.
  3. The actual performance may be lower than lab testing figure due to differences in server configuration, deployment, and the number of active operations.
  4. If usage requirements exceed the specifications above, please contact our regional partners for professional advice.



Additional information

Weight 0.7 kg
Dimensions 15 x 15 x 10 cm
