Description

Connect. Share. Collaborate – Wirelessly

Transform Any Space Into A Wireless Hub For BYOD (Bring Your Own Device) And BYOM (Bring Your Own Meeting).

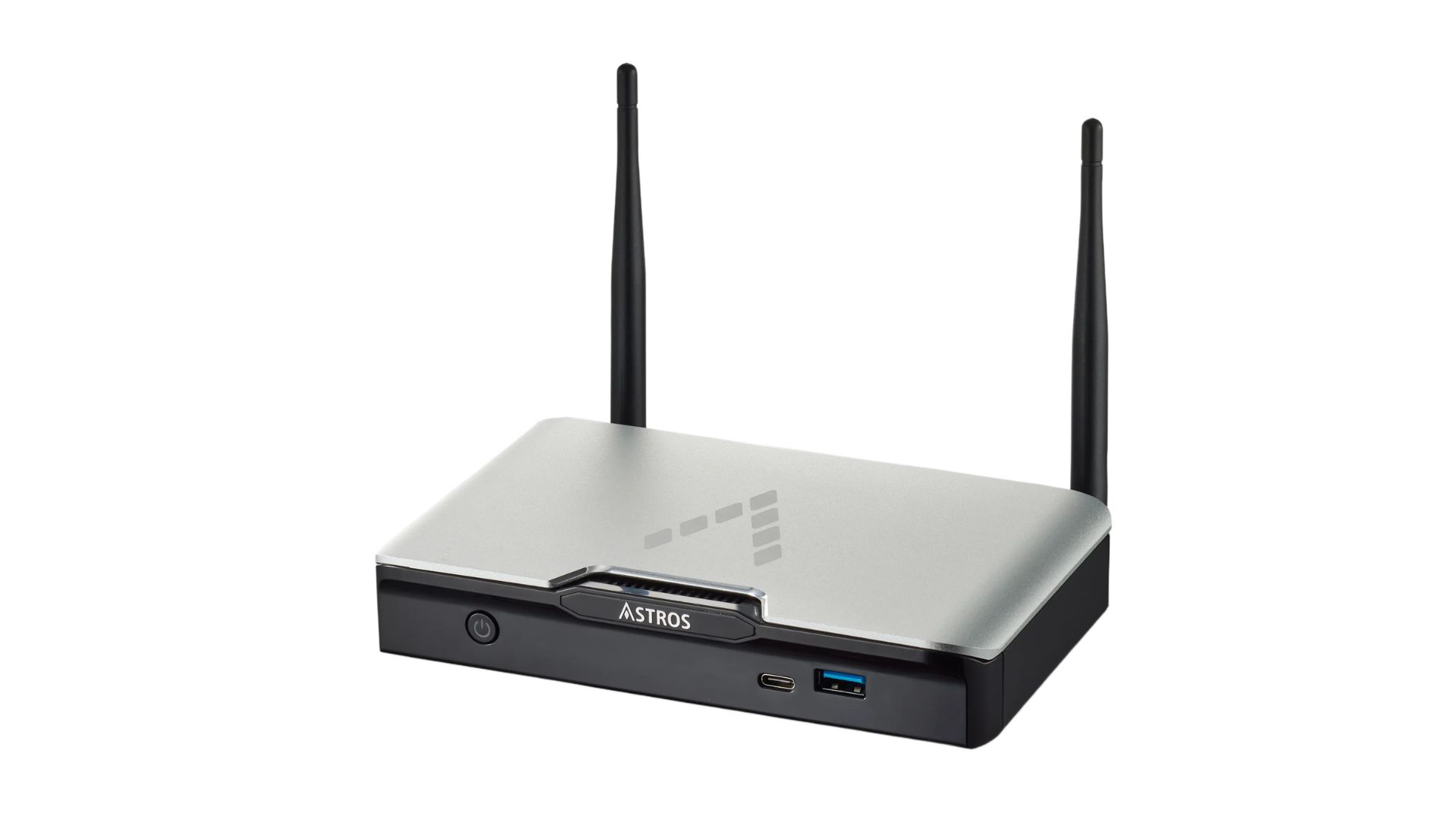

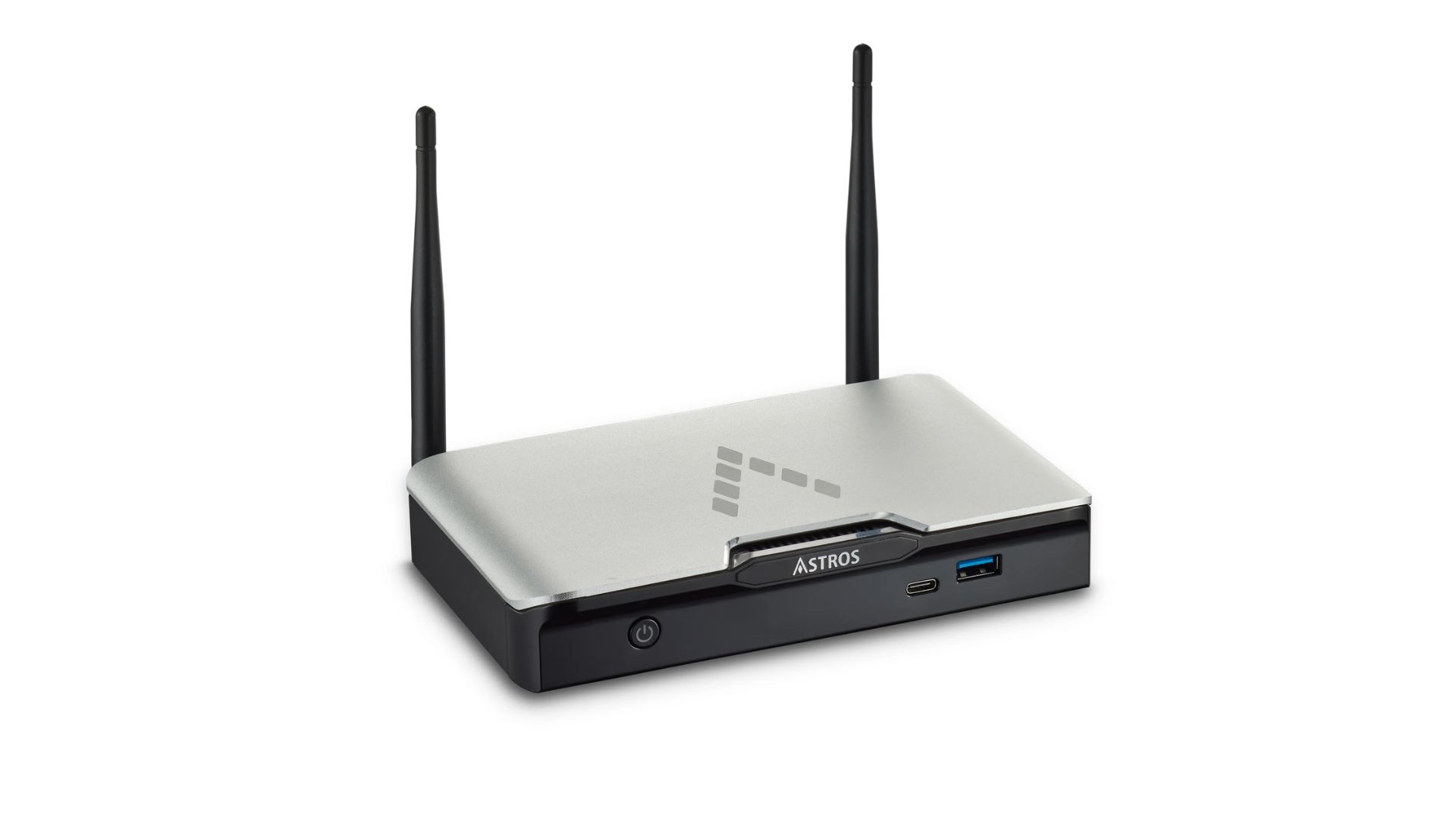

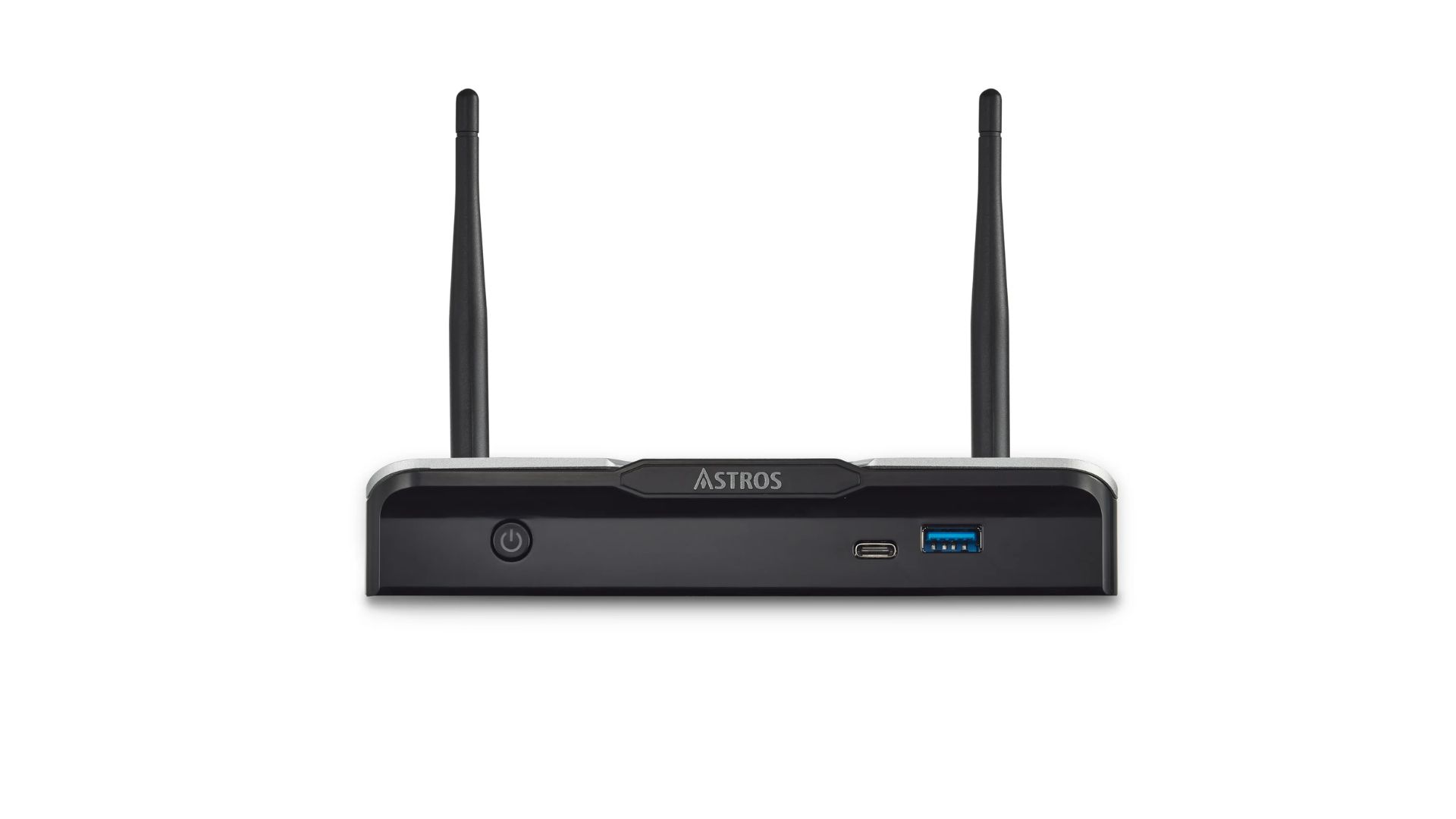

With The ASTROS Station AS-201, Teams Can Present, Share, And Conference Effortlessly — No Cables, No Limits.

Key Features

• 4K Video Output
  Showcase your content in vibrant 4K resolution.
• Native Mirroring
  Mirror your device instantly with AirPlay, Google Cast, or Miracast.
• Touch Back
  Seamlessly send touch and peripheral commands back to your laptop.
• Annotation Tools
  Draw, highlight, and collaborate on-screen.
• Login Code
  Use a code to prevent unauthorized access.
• Data Encryption
  Keep your data safe from Wi-Fi to delivery.
• Content Moderation
  Control what shows—clean, clear, professional.
• Web Portal
  Monitor and configure all devices through your browser.
• OTA Update
  Keep Devices Up-to-Date Wirelessly.
• Web API Control
  Command and configure devices from anywhere.
• Remote View
  Access live screen content from your personal device.
• One-to-Many
  Send content to multiple screens at once.
• Split-Screen View
  View up to four sources side by side.
• Smart Sharing
  Pick between full screen or specific app windows.

Technical Specifications

• Compatible Operating Systems:
  • Windows 10 or later
  • macOS 12.5 or later (BYOM 13.5 or later)
  • iOS 14 or later
  • Android 11.0 or later
  • Chrome OS 84 or later
• Video Output Resolution:
  • HDMI: up to 4K @60Hz
  • HDMI + VGA: up to 1080p @60Hz
• Audio Output:
  • HDMI
  • 3.5 mm Audio Jack
• Wi-Fi Band: Switchable dual band 2.4 GHz / 5 GHz (DFS channels not supported)
• Wireless Transmission Protocol: IEEE 802.11ac
• Power: DC input, PoE supported
• LAN: Single LAN port
• Authentication:
  • AP Mode: WPA2-PSK
  • Station Mode: WEP, WPA, WPA2, 802.1x EAP
• Ethernet: 10/100/1000 Mbps RJ-45 LAN (PoE supported)

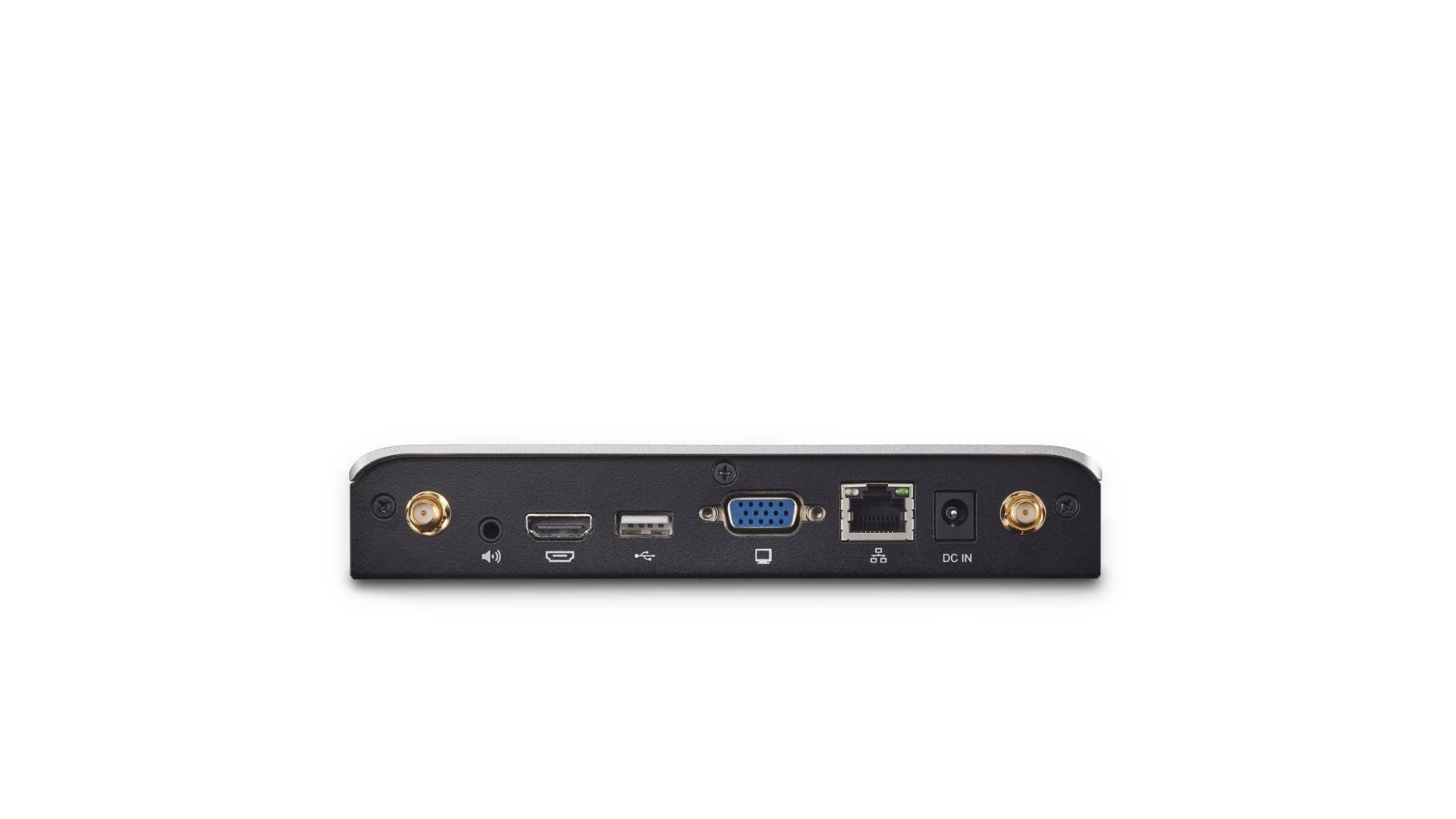

• I/O Ports:
  • 1 × HDMI
  • 1 × VGA
  • 1 × USB 2.0 Type-A
  • 1 × USB 3.0 Type-A
  • 1 × USB 3.0 Type-C
  • 1 × 3.5 mm Audio Jack
  • 1 × 10/100/1000 Mbps Ethernet LAN
  • 1 × Power Jack
• Power Supply:
  • PSU: 12 V / 2 A
  • PoE: 48 V / 0.32 A
• Net Weight: 500 g
• Dimensions (H × W × D): 170 × 104.4 × 30.5 mm
• Temperature:
  • Operating: 0°C–40°C (32°F–104°F)
  • Storage: -10°C–70°C (14°F–158°F)
• Humidity (Non-condensing):
  • Operating: 20%–80%
  • Storage: 10%–90%
• Certifications:
  • FCC
  • CE
  • NCC
  • BSMI
• Warranty: 3-Year Limited Warranty
