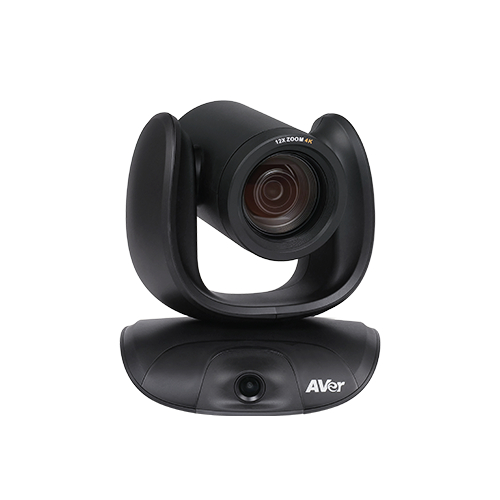

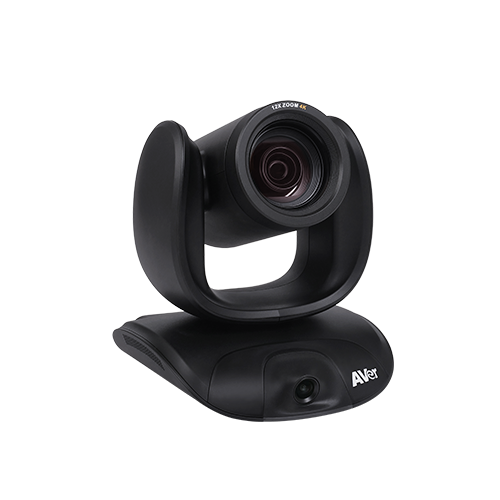

AVer CAM550 4K Dual-Lens PTZ Conferencing Camera is a premium, AI-powered video conferencing solution designed for mid-to-large meeting rooms. Equipped with an innovative dual 4K lens system, the CAM550 features a primary PTZ lens with 12X optical zoom (24X total zoom) and a secondary fixed AI lens with a 95° wide field of view. This powerful combination, along with advanced features like Dynamic Auto Framing, Smart Gallery, and intuitive gesture control, ensures every participant is perfectly captured. With simultaneous 3-way output (USB, HDMI, and IP) and PoE+ support, the CAM550 delivers a seamless, professional, and highly engaging hybrid meeting experience.

KEY FEATURES

• Dual 4K Lens System: Primary PTZ lens (12X optical zoom) + Secondary AI lens (95° wide FOV)
• Dynamic Auto Framing: AI lens detects newcomers and automatically triggers the PTZ lens to reframe all participants
• Smart Gallery: AI technology automatically crops participant faces (headshot or half-body mode) for optimal visibility
• Simultaneous 3-Way Output: Stream and record concurrently via USB, HDMI, and IP (RJ45)
• Intuitive Gesture Control: Operate camera functions with simple hand gestures to reduce physical touchpoints
• HDMI Picture-in-Picture (PIP): View the active speaker and a panoramic room view simultaneously on a second display
• PoE+ Support: Flexible power options via Power over Ethernet (802.3at) or the included 12V DC power adapter
• 128 Programmable Presets: Quick recall of specific camera angles via VISCA protocol or PTZApp

SPECIFICATIONS

• Image Sensor: Dual Sony 4K Exmor CMOS Sensors
• Resolution & Frame Rate: Up to 4K (3840×2160) at 30fps via USB; 1080p at 60/30fps
• Zoom Capability: 24X Total Zoom (12X Optical + 2X Digital)
• Field of View (AI Lens): Diagonal: 95° | Horizontal: 78° | Vertical: 50°
• Pan & Tilt: Smooth motorized movement with precise positioning
• Focus: Auto Focus with a minimum working distance of 1.5 meters

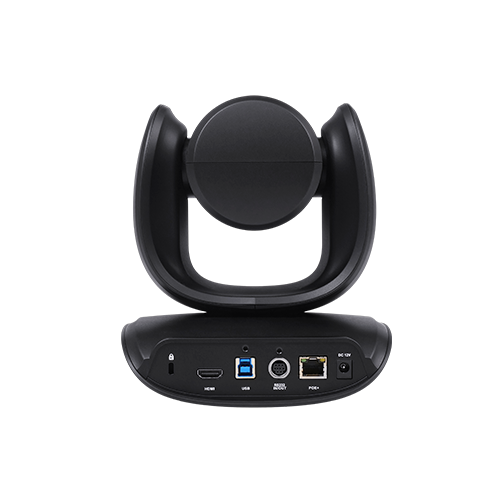

• Connectivity: USB 3.1 Type-B, HDMI 1.3 Output, RJ45 (IP/PoE+), Mini DIN 9 (RS-232)
• Control: IR Remote Control, PTZApp, VISCA/Pelco protocols, AI Gesture Recognition
• Mounting: 1/4″ tripod screw holes, wall-mount bracket included, Kensington security slot

WHAT’S IN THE BOX

• 1x AVer CAM550 4K Dual-Lens PTZ Conference Camera
• 1x IR Remote Control (with batteries)
• 1x Power Adapter with Cable (10 ft / 3 m)
• 1x USB 3.1 Type-B to Type-A Cable (3 m)
• 1x HDMI Cable (3 m)
• 1x Mini DIN9 to Mini DIN8 RS232 Adapter Cable
• 1x Wall-Mount Bracket and Screws
• 1x Tripod Screw
• 1x QR Code Card
