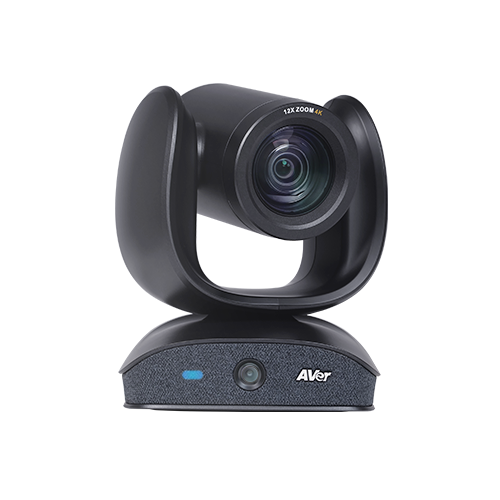

AVer CAM570 4K Dual Lens Audio Tracking Camera is a premium PTZ conferencing solution designed for medium and large meeting rooms. Equipped with an innovative 4K dual-lens system, the CAM570 features a primary PTZ lens with 12X optical zoom (36X total zoom) and a secondary AI lens with a 95° wide field of view. Uniquely, it integrates three built-in beamforming voice sensors that detect human voices up to 10 meters away, automatically guiding the PTZ camera to track the active speaker. With simultaneous 3-way output (USB, HDMI, and IP), PoE+ support, and advanced AI features like Smart Gallery and Dynamic Framing, the CAM570 delivers a seamless, highly engaging, and professional hybrid meeting experience.

KEY FEATURES

• 4K Dual-Lens System: Primary PTZ lens (12X optical, 36X total zoom) + Secondary AI lens (95° wide FOV)
• Built-in Audio Tracking: Three beamforming voice sensors detect human voices up to 10 meters to automatically track the active speaker
• AI Smart Frame Technology: Dynamic Detection automatically adjusts camera angle and zoom as the number of participants changes
• Smart Gallery: Merges close-ups of individuals with a panoramic room view for collaboration equity (headshot or half-body modes)
• Picture-in-Picture (PiP): Simultaneously displays speaker close-up and wide-angle room view via HDMI output
• Simultaneous 3-Way Output: Stream and record concurrently via USB, HDMI, and IP (RJ45)
• PoE+ Support: Flexible power options via Power over Ethernet (802.3at) or the included 12V DC power adapter
• Zoom & Microsoft Teams Certified: Seamless plug-and-play compatibility with major UC platforms

SPECIFICATIONS

• Image Sensor: Sony 4K Exmor CMOS
• Resolution & Frame Rate: Up to 4K (3840×2160) at 30fps via USB; 1080p at 60/30fps via HDMI/USB
• Zoom Capability: 36X Total Zoom (12X Optical + 3X Digital)
• Field of View (AI Lens): Diagonal: 95° | Horizontal: 78° | Vertical: 50°
• Focus: Auto Focus with a minimum working distance of 1.5 meters (4.9 ft)
• Connectivity: USB 3.1 Type-B, HDMI 1.3 Output, RJ45 (IP/PoE+), Mini DIN 9 (RS-232), 3.5mm Line In
• Control: IR Remote Control, PTZApp 2, VISCA/Pelco protocols, 128 Presets via RS-232
• Mounting: 1/4″ tripod screw holes, wall-mount bracket included, Kensington security slot

WHAT’S IN THE BOX

• 1x AVer CAM570 4K Dual-Lens PTZ Conference Camera
• 1x IR Remote Control (with batteries)
• 1x Power Adapter (12V)
• 1x USB 3.1 Type-B to Type-A Cable (3m)
• 1x HDMI Cable
• 1x Wall-Mount Bracket
• 1x RS232 Adapter for PRO Series
• 1x Quick Start Guide / QR Code Card
