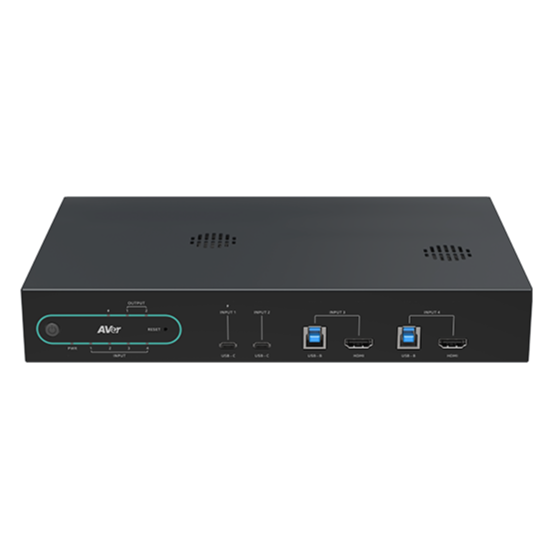

AVer HUB30 4K BYOM Matrix Switcher is a versatile, professional-grade collaboration hub designed to unlock seamless hybrid meetings and presentations. Featuring robust USB-C connectivity that delivers 4K video, audio, and rapid power delivery (up to 100W), the HUB30 simplifies Bring Your Own Meeting (BYOM) setups. With 4 diverse input options, dual-screen HDMI output support, and intuitive touch control via the AVer CP10 G2, it ensures crystal-clear visuals and smooth integration. Enhanced by ConnectAI for dynamic multi-camera auto-switching, the HUB30 is the ultimate versatile solution compatible with AVer Pro AV Cameras and standard USB conferencing cameras for professional-grade performance anywhere.

KEY FEATURES

• 4K Ultra HD Video Output with dual HDMI ports to support flexible dual-screen display configurations
• USB-C Power Delivery (PD) provides up to 100W of rapid charging to keep host laptops and devices powered during long meetings
• Multi-Camera AI Auto Switching (ConnectAI) enables dynamic, multi-angle video production by seamlessly switching between connected AVer cameras
• Intuitive Touch Panel Control pairs effortlessly with the AVer CP10 G2 Collaboration Touch Panel via the BYOM Controller App
• Diverse Connection Ports offering 4 inputs (USB-C and USB-B/HDMI combo) and 4 USB-A ports for seamless peripheral pass-through
• Broad Compatibility with AVer Pro AV Cameras, USB conferencing cameras, and major UC platforms for plug-and-play simplicity
• Industry-Leading 5-Year Warranty provides long-term peace of mind and reliability for enterprise and educational deployments

SPECIFICATIONS

• Host Inputs: 2x USB Type-C (Input 1 supports up to 100W PD Charging), 2x USB Type-B 3.2 Gen 1 / HDMI combo ports
• USB Device Connections: 4x USB Type-A 3.0 ports with full USB pass-through capability
• Video Outputs: 2x HDMI Out (supports up to 4K Ultra HD resolution, HDMI 2.0, DP Alt Mode)
• Audio: Audio pass-through from input to output (HDMI 2.0 format)
• Control Interfaces: 1x RJ-45 (Ethernet), 1x RS-232, Touch Control Panel support (via BYOM Controller App)
• Power Requirement: AC 100V–240V to DC 24V/7.5A (External 180W Power Supply included)
• Power Consumption: 150W
• Dimensions & Weight: 270.0 x 42.4 x 175.0 mm (W x H x D) | Net Weight: 1.34 kg
• Installation Methods: Rack mounted, under the table, inside the podium, or behind the display
• Security: Kensington security lock slot
• Operating Conditions: Temperature: 0°C to +45°C | Humidity: 20% to 80% (non-condensing)
• Warranty: 5 years

WHAT’S IN THE BOX

• 1x AVer HUB30 4K BYOM Matrix Switcher Unit
• 1x Power Adapter (180W) & Power Cord
• 1x USB 3.0 Type-A to Type-B Cable
• 1x USB 3.1 Type-C to Type-C Cable
• 2x Rack Mount Brackets
• 2x Cable Fixing Plates & 17x Cable Ties
• 1x Terminal Block 3-Pole
• Assorted Mounting Screws (8x M3 x 5.0 mm Truss Head, 4x M3 x 10 mm)
• 1x Quick Start Guide
