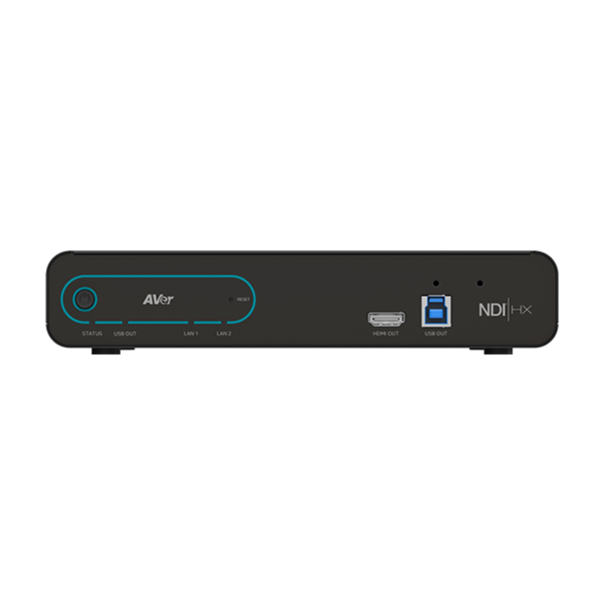

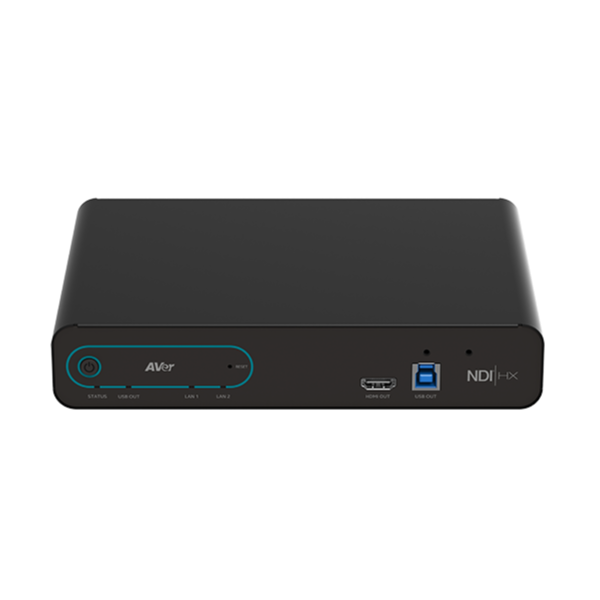

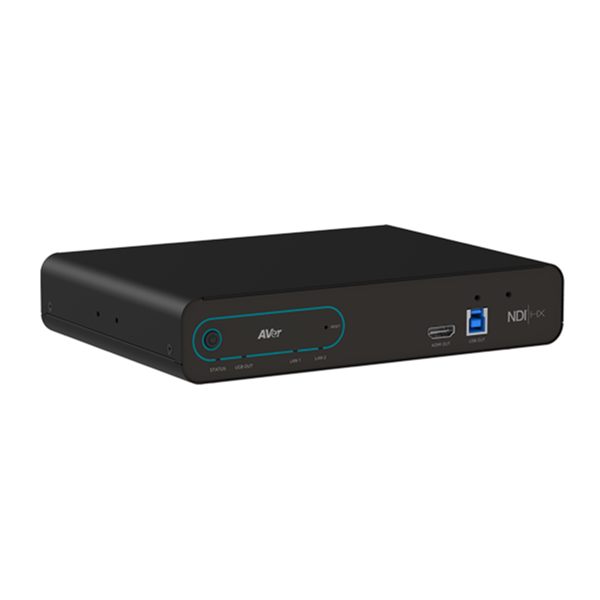

AVer MT100 Matrix Tracking Box is a compact, all-in-one multimedia matrix and audio tracking solution designed for hybrid classrooms, meeting rooms, and HyFlex teaching environments. It brings together multiple AV sources—such as PTZ cameras, document cameras, laptops, and other AV inputs—into one integrated platform. With support for 4K 60fps output, NDI® networked workflows, and PoE+ power management, the MT100 enables seamless video switching, customized layouts, and professional multi-angle production without the need for a dedicated broadcast engineer.

KEY FEATURES

• All-in-One Matrix Switching: Integrates multiple video sources (HDMI, USB, NDI, RTSP) for seamless switching and dynamic multimedia presentations
• 4K 60fps Output Resolution: Delivers crisp, high-resolution video output for clear visuals on main displays and live streaming platforms
• NDI® Support: Features onboard NDI®|HX camera input and output capabilities for high-quality, low-latency networked AV workflows
• PoE+ Power Management: Simplifies installation by supporting Power over Ethernet (PoE+) for efficient power and data distribution via a single cable
• Intelligent Multi-Camera Control: Supports auto-switching and audio tracking capabilities for dynamic, engaging presentations and lecture capture
• BYOD & Plug-and-Play: USB connectivity allows easy integration with personal laptops and popular UC platforms (Zoom, Microsoft Teams, etc.)

SPECIFICATIONS

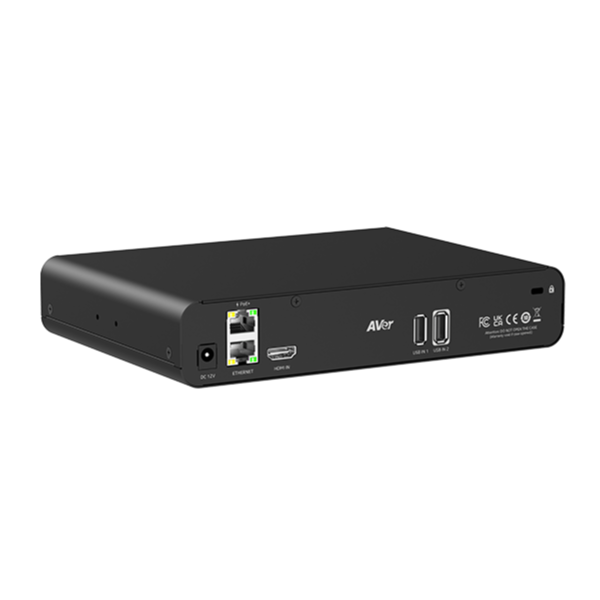

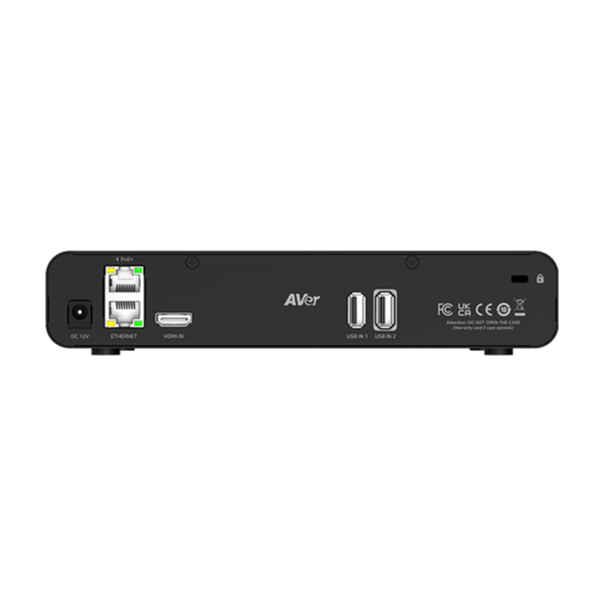

• Video Inputs: 1x HDMI In, 2x USB 2.0 Type-A, 1x RJ-45 (supports up to 4 IP-based cameras via NDI/RTSP)
• Video Outputs: 1x HDMI Out (up to 4K at 60 fps), 1x USB 3.0 Type-C (UVC for PC connection)
• Audio: Dedicated audio input and output ports for seamless microphone and speaker integration
• Network Connectivity: RJ-45 LAN with PoE+ support for IP control, NDI®|HX streaming, and remote room management
• Power Supply: PoE+ (42.5V to 57V) or included DC power adapter
• Operating Environment: 0°C to +50°C (32°F to 122°F) | 20% to 80% relative humidity (non-condensing)
• Dimensions & Weight: Compact form factor designed for discreet tabletop placement, VESA mounting, or rack integration
• System Compatibility: Windows, macOS, Chrome OS, and major video conferencing platforms via UVC/UAC Plug-and-Play

WHAT’S IN THE BOX

• 1x AVer MT100 Matrix Tracking Box Unit
• 1x Power Adapter & Power Cable
• 1x USB 3.0 Cable
• 1x Quick Start Guide
• 1x Warranty Card
