AVer MT500 4K Matrix Tracking Box is a professional-grade, AI-powered multimedia switching and voice tracking solution designed for large lecture halls, council chambers, corporate boardrooms, and high-impact hybrid environments. It seamlessly integrates multiple video and audio sources, delivering dual independent 4K outputs to simultaneously serve in-room displays and streaming/recording platforms. With native support for Dante® Audio, Dante® AV-H, and NDI®, the MT500 simplifies complex AV-over-IP workflows, enabling automated, dynamic multi-camera production without the need for a dedicated broadcast engineer, all backed by an industry-leading 5-year warranty.

KEY FEATURES

• Dual Independent 4K Outputs: Simultaneously deliver crisp 4K 60fps video to in-room displays and live streaming/recording platforms
• Built-in PTZ Link Premium: Instantly converts compatible AVer PTZ cameras into voice-tracking cameras for automated, seamless multi-camera switching
• Advanced AV-over-IP Support: Native compatibility with NDI® HX3 camera inputs and Dante® AV-H (license required) for flexible, low-latency networked workflows
• Dante® Audio Integration: Built-in Dante® Audio support (license required) alongside an 8-channel matrix mixer for professional-grade audio routing and mixing
• Direct-to-NAS & USB Recording: Enables effortless local recording to USB storage devices or network-attached storage (NAS) without a dedicated PC
• AI-Powered Automation: Features FaceFocus, IntelliSwitch, and InstaConfig for intelligent participant tracking and effortless system setup
• Robust Control & Connectivity: Dual LAN ports with PoE+ support, GPIO, and RS-422 control for seamless integration into complex, centralized room management systems
• Industry-Leading 5-Year Warranty: Provides long-term peace of mind and reliability for enterprise and educational deployments

SPECIFICATIONS

• Video Inputs: 3x HDMI 2.0, 2x USB 3.0 Type-A, Up to 25 IP Stream Inputs (RTSP, NDI® HX2, NDI® HX3, Dante® AV-H)
• Video Outputs: 2x HDMI 2.0, 2x USB 3.0 Type-B (UVC/UAC), 2x IP Outputs (RTSP, RTMP, HLS, NDI® HX2)
• Resolution & Codecs: Up to 4K (3840×2160) at 60fps | H.264, H.265, MJPEG
• Audio I/O: 2x XLR Balanced In, 1x 3.5mm Mic/Line In, 1x 3.5mm Out, Bi-directional UAC USB Audio Bypass, 8CH Matrix Mixer
• AI Features: FaceFocus, IntelliSwitch (auto-switching), InstaConfig (one-click setup)
• Recording & Storage: Direct recording to local USB storage devices and network-attached storage (NAS)
• Control & Network: Dual RJ-45 LAN (PoE+ supported), RS-422, GPIO, Intuitive Web UI
• Power Requirement: AC 100V–240V to DC (via included adapter) or PoE+

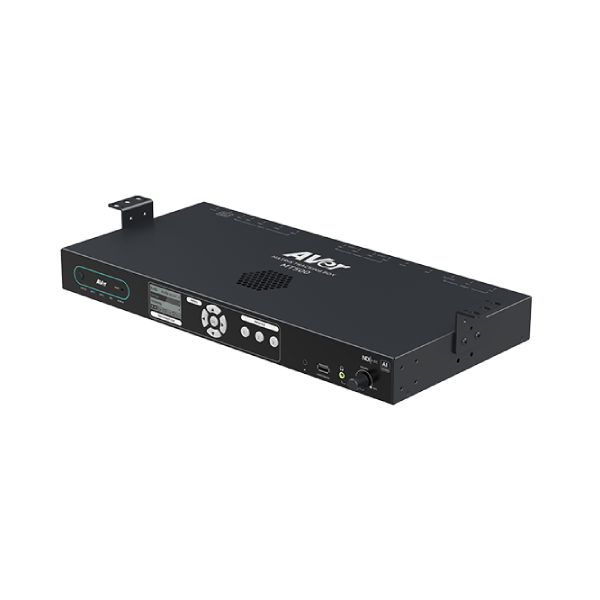

• Mounting & Dimensions: Rack-mountable (brackets included), wall-mount compatible, Kensington security lock slot
• Warranty: 5 years

WHAT’S IN THE BOX

• 1x AVer MT500 4K Matrix Tracking Box Unit
• 1x Power Adapter & Power Cord
• 2x USB 3.0 Type-A to Type-B Cables
• 2x Rack Mount Brackets
• 1x Cable Fixing Plate & 9x Cable Ties
• 1x Phoenix® Combicon 8-pole Connector
• Assorted Mounting Screws (10x 3.0 x 5 mm Truss Head, 4x M3 x 10 mm)
• 1x Quick Start Guide
