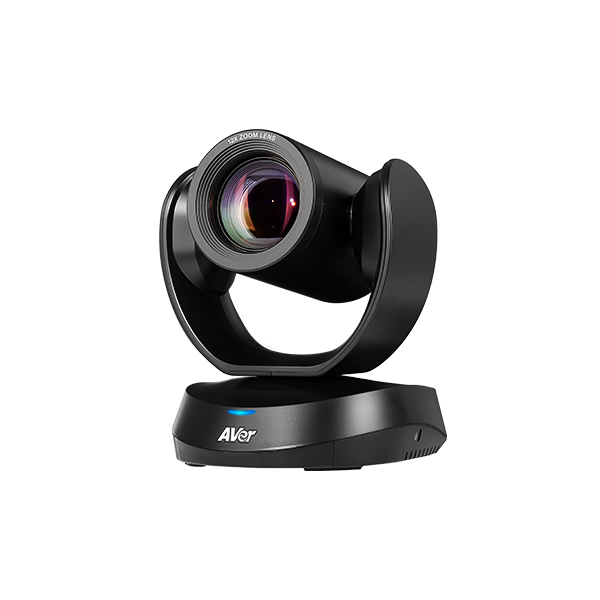

AVer VC520 Pro3 Conference Camera and Speakerphone System is an advanced video conferencing solution designed for mid-to-large meeting rooms. Featuring a powerful 36X total zoom (12X optical) PTZ camera with a Sony super-low-light 8MP WDR sensor, the VC520 Pro3 delivers ultra-FHD image quality and exceptional clarity even in challenging lighting conditions. Equipped with innovative AI features like Smart Composition, SmartFrame, and Preset Framing, combined with an extended speakerphone solution and 3-way output capabilities (HDMI, USB, and IP streaming), the VC520 Pro3 ensures every participant is seen and heard with pristine clarity, all through a simplified single-cable USB setup ideal for BYOD or dedicated PC environments.

KEY FEATURES

• 36X Total Zoom (12X Optical) PTZ Camera with a Sony 8MP super-low-light WDR sensor for crisp, natural imaging up to 70 feet away
• AVer Smart Composition uses embedded AI to autonomously frame up to 9 participants in headshot, half-body, or mix modes without external software
• Upgraded SmartFrame & Preset Framing automatically centers participants up to 22 feet away and smoothly tracks presenters across predefined zones
• 3-Way Simultaneous Output: Delivers 1080p/60fps video via HDMI to a local display, USB to a PC, and IP streaming (RTSP/RTMP) for broadcasting
• Superior Extended Audio: Integrated speakerphone supporting expansion with up to two additional speakerphones or a full-duplex microphone set
• Single USB Cable Connectivity: Streamlines installation and reduces cable clutter for seamless BYOD or dedicated PC setups
• People-Counting API: Provides valuable room usage analytics for enterprises and third-party software providers

SPECIFICATIONS

• Image Sensor: Sony super-low-light 8M pixel sensor with True WDR for superb backlight compensation
• Resolution & Frame Rate: 1080p (1920×1080) at 60/30/15fps; 720p and lower resolutions at 30/15fps
• Zoom Capability: 36X Total Zoom (12X Optical + Digital)
• Field of View: Diagonal: 80.5° | Horizontal: 72.8° | Vertical: 44.1°
• Pan & Tilt: Motorized Pan: ±170° | Tilt: +90° (up) to -30° (down) with fast, quiet movement
• Focus: Auto Focus with a minimum working distance of 1 meter
• Audio: Integrated speakerphone with expansion support, Acoustic Echo Cancellation (AEC), and Noise Suppression
• Connectivity: USB 3.1 Gen 1 Type-B, HDMI Out, RJ-45 LAN, Camera-to-Speakerphone proprietary port, 3.5mm Aux In/Out
• Control: IR Remote Control, PTZApp 2, WebUI (Chrome), VISCA/Pelco-P/Pelco-D via RS-232 (128 preset points)
• Mounting: Standard 1/4″ tripod screw holes, wall-mount compatible, and Kensington security slot

WHAT’S IN THE BOX

• 1x AVer VC520 Pro3 Camera Unit
• 1x AVer VC520 Pro3 Speakerphone Unit
• 1x Power Adapter & Power Cord (6 ft / 1.8 m)
• 1x USB 2.0 Type-B to Type-A Cable (16.5 ft / 5 m)
• 1x Camera to Speakerphone Cable (33 ft / 10 m)
• 1x IR Remote Control
• 1x 3.5 mm Aux Cable (3 ft / 0.9 m)
• 1x QR Code Card
