AVer VC550 4K Dual-Lens PTZ Conferencing Camera & Speakerphone Kit is a superior dual-lens audiovisual system designed for mid-to-large meeting rooms. It features the CAM550 4K dual-lens PTZ camera paired with a FONE540 scalable speakerphone. The system combines a 12x optical zoom (24x total zoom) PTZ lens with a secondary 95° wide-angle AI lens to deliver dynamic auto-framing, Smart Gallery, and HDMI Picture-in-Picture (PIP) capabilities. With advanced AI features, touchless gesture control, and a daisy-chain expandable speakerphone supporting additional microphones or speakerphones, the VC550 ensures every participant is seen and heard with pristine clarity through a flexible USB, HDMI, and IP connectivity setup.

KEY FEATURES

• Dual 4K Lens Technology combining a 12x optical zoom (24x total) PTZ camera with a 95° FOV secondary AI lens for comprehensive room coverage
• Dynamic Auto Framing & Smart Gallery use AI to automatically detect newcomers, reframe participants, and crop faces (headshot or half-body mode) for optimal visibility
• HDMI Picture-in-Picture (PIP) optimizes meeting coverage by displaying both the active speaker and the full room view simultaneously without manual camera operation
• AVer Audio Fence & Noise Suppression silences background distractions (like keyboard typing or construction) to guarantee unmatched audio clarity
• Scalable Speakerphone System: FONE540 unit supports daisy-chain expansion with up to four additional microphones or two extra speakerphones for mid-to-large room coverage
• Touchless Gesture Control allows users to operate the camera and enable AI functions by simply holding up a finger, eliminating physical touchpoints
• 3-Way Simultaneous Output delivers video via USB, HDMI, and IP streaming (RTSP/RTMP) for maximum flexibility in hybrid and BYOD environments

SPECIFICATIONS

• Image Sensor: 1/2.8” Sony Exmor CMOS (supports up to 4K at 30fps and 1080p at 60fps)
• Zoom Capability: 24X Total Zoom (12X Optical + 2X Digital)
• Field of View (PTZ): Diagonal: 85° | Horizontal: 76° | Vertical: 46°
• Field of View (AI Lens): Diagonal: 95° (for panoramic room view and AI tracking)
• Pan & Tilt: Motorized Pan: ±170° | Tilt: +90° (up) to -30° (down) with fast, quiet movement
• Focus: Auto Focus with a minimum working distance of 1 meter

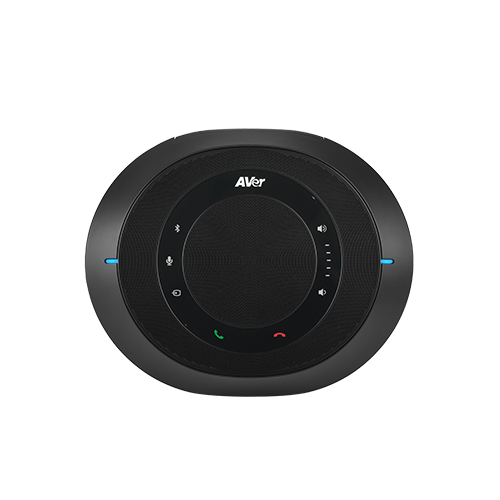

• Audio: FONE540 full-duplex speakerphone with omnidirectional microphones, Acoustic Echo Cancellation (AEC), Noise Suppression, and wideband voice processing

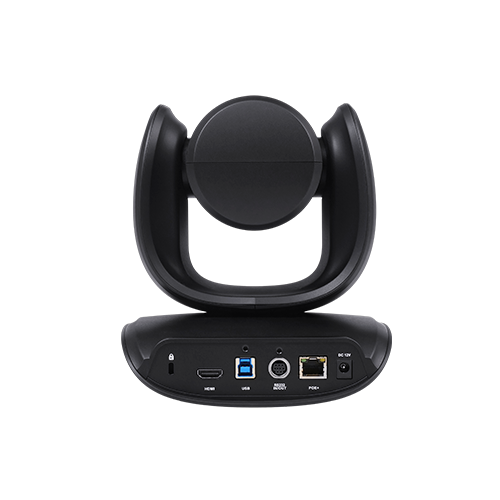

• Connectivity: 1x USB 3.1 Type-B, 1x USB-C, HDMI Out, RJ-45 LAN, 3.5mm Aux In/Out, proprietary camera-to-speakerphone port
• Control: IR Remote Control, Web UI, VISCA/Pelco-P/Pelco-D (128 preset points), Touchless Gesture Control
• Mounting & Dimensions: Camera: 190.5 x 170.8 x 173 mm (2.1 kg) | Speakerphone: 200 x 121 x 50 mm | 2x 1/4″-20 tripod mounts, wall-mount compatible, Kensington lock slot

WHAT’S IN THE BOX

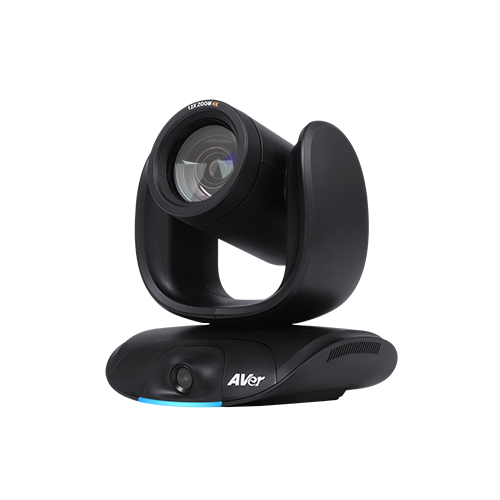

• 1x CAM550 4K Dual-Lens PTZ Conference Camera Unit
• 1x FONE540 Professional Speakerphone Unit
• 2x Power Adapters & Power Cables
• 1x USB 3.1 Type-B to Type-A Cable (5 m)
• 1x Camera-to-Speakerphone Cable
• 1x HDMI Cable
• 1x Ethernet (RJ-45) Cable
• 1x IR Remote Control
• 1x Wall-Mount Bracket & Screws
• 1x QR Code Card / Quick Start Guide
