Description

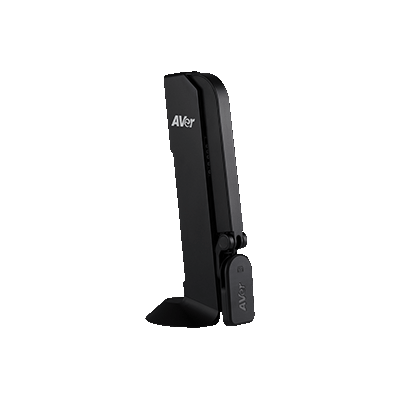

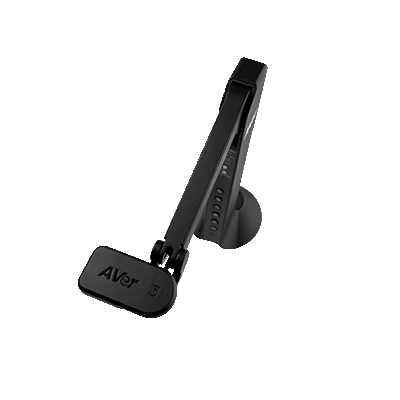

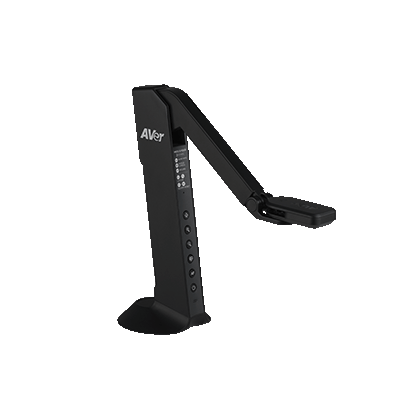

AVerVision M11-8MV Mechanical Arm USB Interactive Visualizer is a compact document camera designed for digital learning, classroom teaching, and hybrid education. Its lightweight mechanical arm design allows teachers to easily capture documents, books, 3D objects, experiments, and teaching materials while also functioning as a USB webcam for online lessons.
Featuring an 8-megapixel CMOS sensor, Full HD 1080p output, A3 shooting area, 20X digital zoom, built-in microphone, HDMI and VGA outputs, and compatibility with AVerTouch software, the M11-8MV provides a flexible presentation solution for both in-person and remote learning.
KEY FEATURES
- 8 Megapixel CMOS Image Sensor
- Full HD 1080p Resolution
- Up to 60 fps Live Image Capture
- 20X Digital Zoom
- Large A3 Shooting Area
- Mechanical Arm Design
- USB Webcam (UVC) Functionality
- Built-in Microphone
- HDMI and VGA Display Outputs
- Supports USB Flash Drive and Micro SD Storage
- Built-in Annotation without PC
- Picture-in-Picture (PiP) and Picture-by-Picture (PbP)
- Compatible with AVerTouch Software
- Compact and Lightweight Design
SPECIFICATIONS
| Product Type | Mechanical Arm USB Interactive Visualizer |
| Model | AVerVision M11-8MV |
| Image Sensor | 1/3.06″ CMOS |
| Total Pixels | 8 Megapixels |
| Output Resolution | Full HD 1080p (USB up to 3168 × 2376) |
| Digital Zoom | 20X |
| Frame Rate | Up to 60 fps |
| Focus | Auto / Manual |
| Shooting Area | A3 (420 × 315 mm) |
| Image Rotation | 0° / 180° |
| Internal Storage | 120 Images (2MP) |
| External Storage | Micro SD & USB Flash Drive (FAT32, up to 32 GB) |
| Image Effects | Color, Black & White, Negative |
| Image Adjustment | Auto / Manual White Balance & Exposure |
| Light Source | Embedded LED Lamp |
| Built-in Microphone | Yes |
| USB Ports | USB Type-A ×1, Mini USB ×1 (Power) |
| Video Outputs | HDMI Out ×1, VGA Out ×1 |
| Power Source | Mini USB, 5V / 1A |
| Dimensions | Operating: 116.7 × 360.4 × 303.4 mm Folded: 116.7 × 296.1 × 143.1 mm |
| Weight | 0.83 kg |
| Warranty | Visualizer: 3 Years Accessories: 1 Year |
SUITABLE FOR
- Digital Classrooms
- Hybrid Learning
- Distance Learning
- Document Presentation
- STEM Education
- Science Demonstrations
- Book & Magazine Display
- 3D Object Visualization
- Training Centers
- Video Conferencing
PACKAGE INCLUDES
- 1 × AVerVision M11-8MV Visualizer
- 1 × USB Cable
- 1 × QR Code Card
