Description

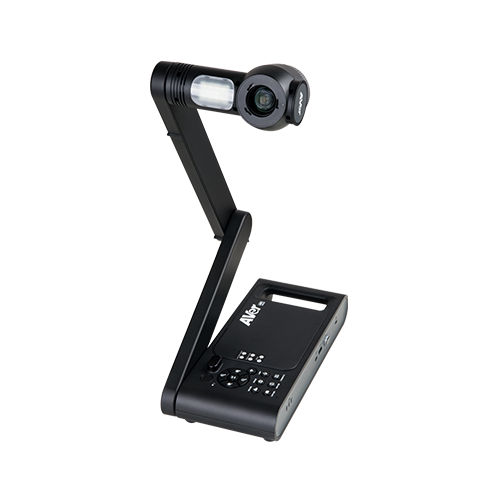

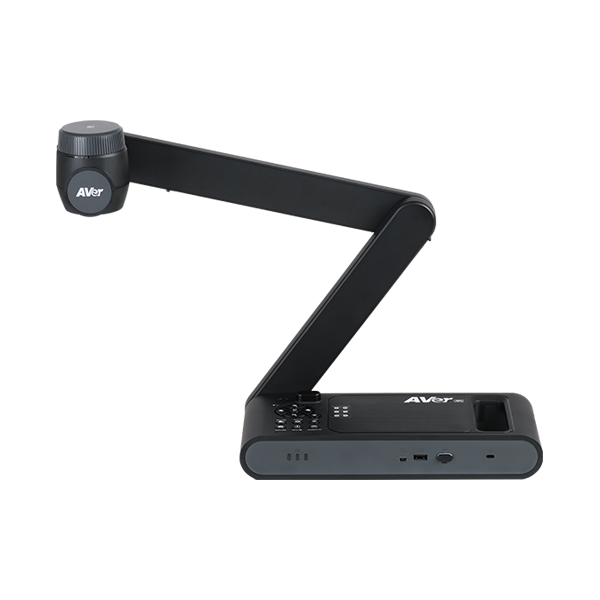

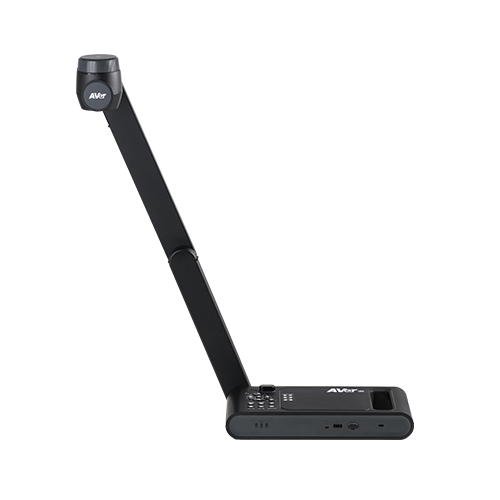

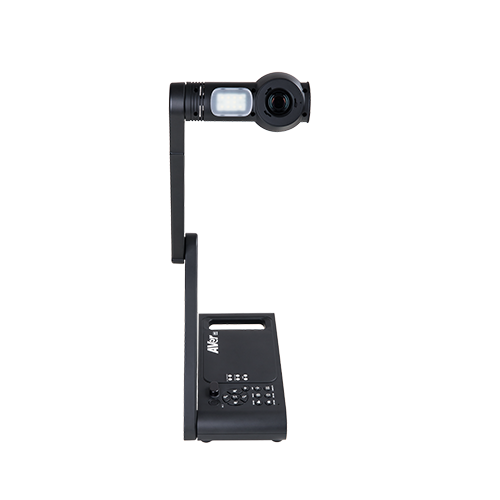

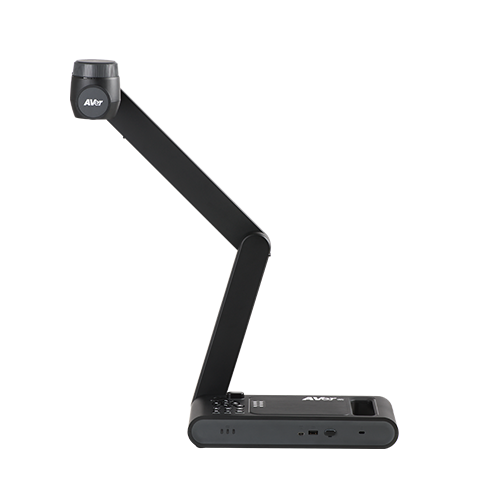

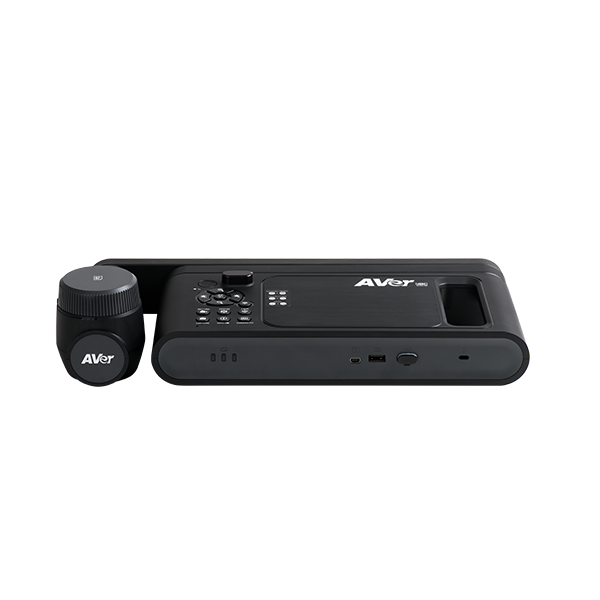

AVerVision M70W Mechanical Arm Wireless Visualizer is a premium 4K wireless document camera designed to transform eLearning by enhancing interactive discussions between teachers and students. Featuring a 13-megapixel camera with vivid 4K 60fps imaging, a powerful 230X total zoom capacity (10X optical + 23X digital), and a durable, adjustable mechanical arm, the M70W allows educators to showcase intricate details, documents, and 3D objects with stunning clarity.
Its versatile design supports both wired (HDMI, USB) and wireless (Dual-Band Wi-Fi with Miracast) connectivity, powered by a rechargeable Li-ion battery for ultimate classroom mobility. With one-touch 4K recording, an embedded LED lamp, built-in microphone, and seamless integration with AVerTouch software (featuring Circle to Search via Google Lens™ and AI Image Generator), the M70W provides a dynamic, future-proof presentation solution backed by a reliable 5-year warranty.
KEY FEATURES
- 13-Megapixel Camera with 4K Ultra HD 60fps Output Resolution
- Amazing 230X Total Zoom (10X Optical Zoom + 23X Digital Zoom)
- Large A3 Shooting Area (up to 480 × 345 mm) with Camera Head Position Indicator
- Dual-Band Wi-Fi (2.4 GHz / 5 GHz) with Miracast Support
- Rechargeable Li-ion Battery for True Wireless Flexibility
- One-Touch 4K Video Recording and Image Capturing
- Built-in Microphone and Embedded LED Lamp
- AVerTouch Software Integration (Circle to Search, AI Image Generator, Cloud Sync, Annotation, OCR)
- Durable, Adjustable Mechanical Arm with Portable Handle
- Backed by an Industry-Leading 5-Year Warranty
SPECIFICATIONS
| Product Type | Mechanical Arm Wireless Visualizer (Document Camera) |
| Model | AVerVision M70W |
| Image Sensor | 1/3.2″ CMOS |
| Total Pixels | 13 Megapixels |
| Output Resolution | 4K, Full HD 1080p 60Hz, HD 720p 60Hz |
| Zoom | 230X Total Zoom (10X Optical + 23X Digital) |
| Frame Rate | Up to 60 fps |
| Focus | Auto / Manual / Area (via software) |
| Shooting Area | A3 (480 × 345 mm max. at 470 mm) |
| Image Rotation | 0° / 90° (Mechanical rotation by camera head) |
| Wi-Fi Streaming | 1080p 30 fps / Up to 4K 30 fps |
| Wireless Security | WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise (EAP-PEAP, EAP-TLS) |
| External Storage | USB Flash Drive (FAT, up to 32 GB) |
| Image Effects | Color, Black & White, Negative |
| Image Adjustment | Auto / Manual White Balance & Exposure |
| Light Source | Embedded LED Lamp |
| Built-in Microphone | Yes |
| USB Ports | USB 2.0 Type-A × 1 (Wi-Fi Dongle), USB Type Mini-B × 1 |
| Video Outputs | HDMI, USB |
| Power Source | DC 5V/2A, AC 100-240V, Rechargeable Li-ion Battery |
| Dimensions | Operating: 587 × 159 × 546 mm Folded: 363.5 × 159 × 76.3 mm |
| Weight | 2.6 kg |
| Warranty | Visualizer: 5 Years Battery and Accessories: 1 Year |
SUITABLE FOR
- Digital and Wireless Classrooms
- Hybrid and Distance Learning
- STEM Education and Science Demonstrations
- Document, Book, and 3D Object Visualization
- Flipped Teaching and Lecture Recording
- Interactive Flat Panel (IFP) Integration
- Training Centers and Video Conferencing
- Mobile Teaching and Flexible Learning Spaces
PACKAGE INCLUDES
- 1 × AVerVision M70W Unit
- 1 × Quick Guide
- 1 × USB Cable
- 1 × Remote Control with AAA Batteries (× 2)
- 1 × Power Adapter (DC 5V)
- 1 × Warranty Card
