Description

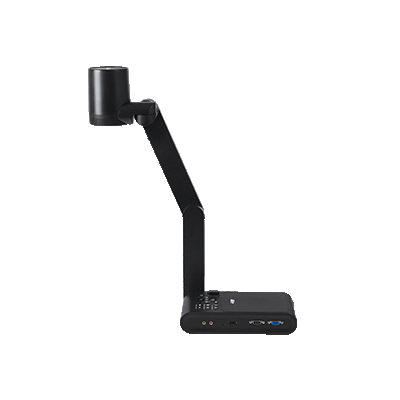

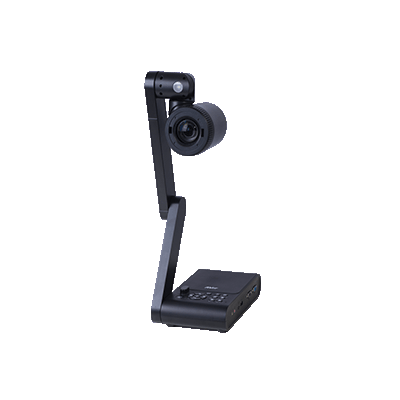

AVerVision M90UHD Mechanical Arm Visualizer is a premium document camera designed to deliver extraordinary clarity and versatility for digital learning, classroom teaching, and professional presentations. Featuring a 13-megapixel camera, 4K Ultra HD 60fps imaging, and an impressive 322X total zoom capacity (14X optical x 23X digital), the M90UHD allows educators to demonstrate documents, chemical experiments, stereo models, and 3D objects in vivid, lag-free detail.
Its super-efficient, neatly foldable mechanical arm, rapid autofocus, embedded LED lamp, and intuitive one-touch recording/capturing functions make it incredibly easy to operate. With multiple connectivity options (HDMI, VGA, USB) and seamless integration with AVerTouch software, the M90UHD provides a comprehensive, future-proof presentation solution backed by a reliable 5-year warranty.
KEY FEATURES
- 13-Megapixel Camera with 4K Ultra HD 60fps Output Resolution
- Amazing 322X Total Zoom (14X Optical Zoom × 23X Digital Zoom)
- Massive A3 Shooting Area with Camera Head Position Indicator
- Rapid Autofocus to Instantly Clarify Moving Objects
- One-Touch Recording, Capturing, and Playback
- Embedded LED Lamp for Optimal Luminance in Any Environment
- Multiple Connectivity: HDMI, VGA, and USB Outputs
- AVerTouch Software Integration (Cloud Sync, Annotation, OCR, AI Image Generator)
- Super-Efficient, Neatly Foldable Mechanical Arm Design
- Backed by an Industry-Leading 5-Year Warranty
SPECIFICATIONS
| Product Type | Mechanical Arm Visualizer (Document Camera) |
| Model | AVerVision M90UHD |
| Image Sensor | 1/3.06″ CMOS |
| Total Pixels | 13 Megapixels |
| Output Resolution | 4K, Full HD 1080p 60Hz, HD 720p 60Hz |
| Zoom | 322X Total Zoom (14X Optical × 23X Digital) |
| Frame Rate | Up to 60 fps |
| Focus | Auto / Manual |
| Shooting Area | A3 (420 × 315 mm max.) |
| Image Rotation | Electronic: 0° / 180° Mechanical: 0° / 90° / 180° (Camera Head) |
| Internal Storage | 200 Pictures at XGA (1024 × 768) |
| External Storage | Micro SD Card & USB Thumb Drive (FAT32, up to 32 GB) |
| Image Effects | Color, Black & White, Negative |
| Image Adjustment | Auto / Manual White Balance & Exposure |
| Light Source | Embedded LED Lamp |
| Built-in Microphone | Yes (plus Mic In & Line Out 3.5mm) |
| USB Ports | USB Type-A × 1, USB Type Mini-B × 1 |
| Video Outputs | HDMI In/Out × 1, VGA In/Out × 1 |
| Power Source | DC 5V / 3A, AC 100-240V, 50/60Hz |
| Dimensions | Operating: 159.0 × 481.3 × 469.9 mm Folded: 176.0 × 319.0 × 112.0 mm |
| Weight | 2.2 kg |
| Warranty | Visualizer: 5 Years Accessories: 1 Year |
SUITABLE FOR
- Digital and Interactive Classrooms
- Hybrid and Distance Learning
- STEM Education and Science Demonstrations
- Document, Book, and 3D Object Visualization
- Medical and Microscope Presentations (with optional adapter)
- Training Centers and Video Conferencing
- Lecture Recording and Live Streaming
PACKAGE INCLUDES
- 1 × AVerVision M90UHD Unit
- 1 × USB Cable
- 1 × VGA Cable
- 1 × Power Cable
- 1 × Power Adapter (5V / 3A)
- 1 × Remote Control with AAA Batteries (× 2)
- 1 × Warranty Card
- 1 × Quick Start Guide
- 1 × Software CD
