Description
XGA Meeting Room Projector For Presentation | MX560
- 4000 ANSI Lumen High brightness and 20,000:1 High Contrast
- Exclusive Data Review Mode Showcases Text and Charts in Detail
- SmartEco Mode Saves Lamp Power Up To 70%

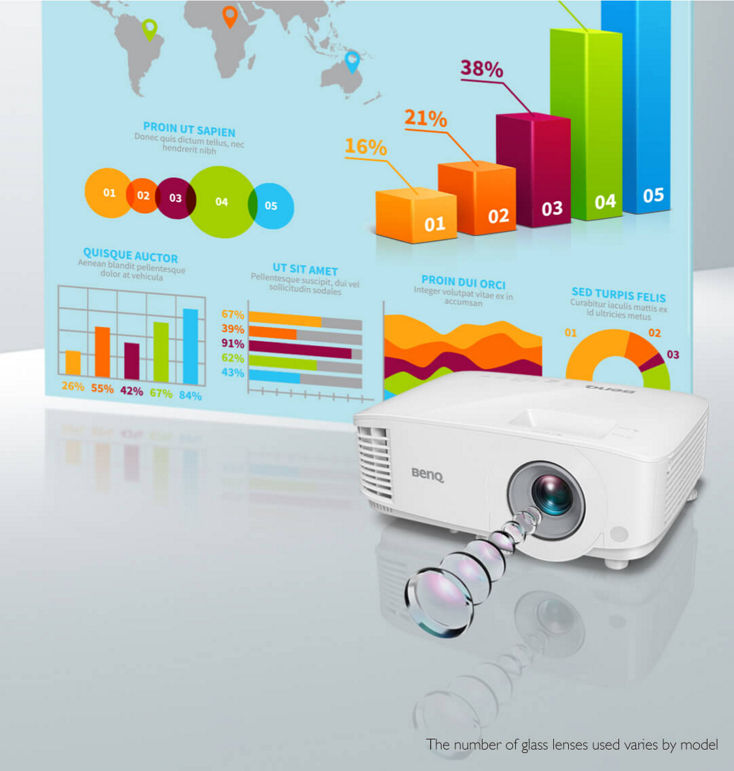

Experience Pure Clarity with Finest Crystal Glasses

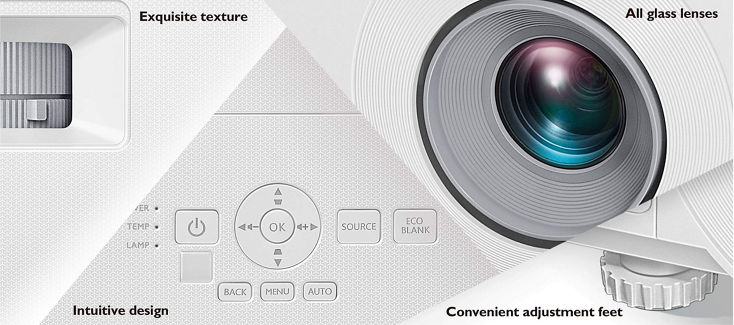

Details that Make a Difference
|
Connectivity
|
Accessory • Remote Control • Power Cord • User Manual CD • Quick Start Guide • Warranty Card • VGA Cable |
Specifications
| Display | |
| Brightness (ANSI lumens) | 4000 |
| Native Resolution | XGA (1024×768) |
| Native Aspect Ratio | 4:3 |
| Contrast Ratio (FOFO) | 20,000:1 |
| Display Color | 30-bit (1.07 billion colors) |
| Light Source | Lamp |
| Light Source Life | a. Normal 6000 hrs, b. ECO 10000 hrs, c. SmartEco 10000 hrs, d. LampSave 15000 hrs |
| Optical | |
| Throw Ratio | 1.96~2.15 |
| Zoom Ratio | 1.1x |
| Lens | F/# = 2.56 ~ 2.68, f=22~24.1mm |
| Projection Offset (Full-Height) | 110% |
| Keystone Adjustment | 1D, (Auto) Vertical ± 40 degrees |
| Picture | |
| Picture Modes | 3D, Bright, Infographic, Presentation, Spreadsheet, sRGB, User 1, User 2 |
| Compatibility | |
| Resolution Support | VGA(640 x 480) to WUXGA_RB(1920 x 1200) *RB=Reduced blanking |
| Horizontal Frequency | 15K~102KHz |
| Vertical Scan Rate | 23~120KHz |
| I/O Interface | |
| PC in (D-sub 15pin) | (x1) |
| Monitor out (D-sub 15pin) | (x1) |
| Composite Video in (RCA) | (x1) |
| S-Video in (Mini DIN 4pin) | (x1) |
| HDMI in | (x2), HDMI-1 (1.4a/HDCP1.4), HDMI-2 (1.4a/HDCP1.4) |
| USB Type A | (x1) |
| USB Type Mini B | (x1) |
| RS232 in (DB-9pin) | (x1) |
| Audio | |
| Speaker | (x1), 10W |
| Audio in (3.5mm Mini Jack) | (x1) |
| Audio out (3.5mm Mini Jack) | (x1) |
| Environment | |
| Operating Temperature | 0~40℃ |
| Power Supply | AC 100 to 240 V, 50/60 Hz |
| Typical Power Consumption (110V) | ~260W/110V |
| Acoustic Noise (Typ./Eco.)(dB) | 34/29 |
| Accessories | |
| Carry Bag | Yes, 5J.J3T09.001 (optional) |
| Remote Control w/ Battery | RCX016 |
| Power Cord (by region) | x1 (1.8M) |
| VGA(D-sub 15pin) Cable | (Standard), 1 (1.5m) |
| 3D Glasses | (Optional), DGD5 |
| Quick Start Guide | x1 (21L) |
| Warranty Card (by region) | Yes |
| Universal Ceiling Mount | (Optional), CM00G3 |
| Dimension & Weight | |
| Dimensions (WxHxD) (mm) | 296 x120 x221 |
| Net Weight (kg) | 2.3 kg |
| Projection System | |
| Projection System | DLP |
Notes
*Lamp in this product contains mercury.
To dispose of the product or used lamps, consult your local environment authorities for regulations or see www.lamprecycle.org.
*Lamp life results will vary depending on environmental conditions and usage. Actual product's features and specifications are subject to change without notice.
**Offset is calucated by full screen height.
