Description

Overview

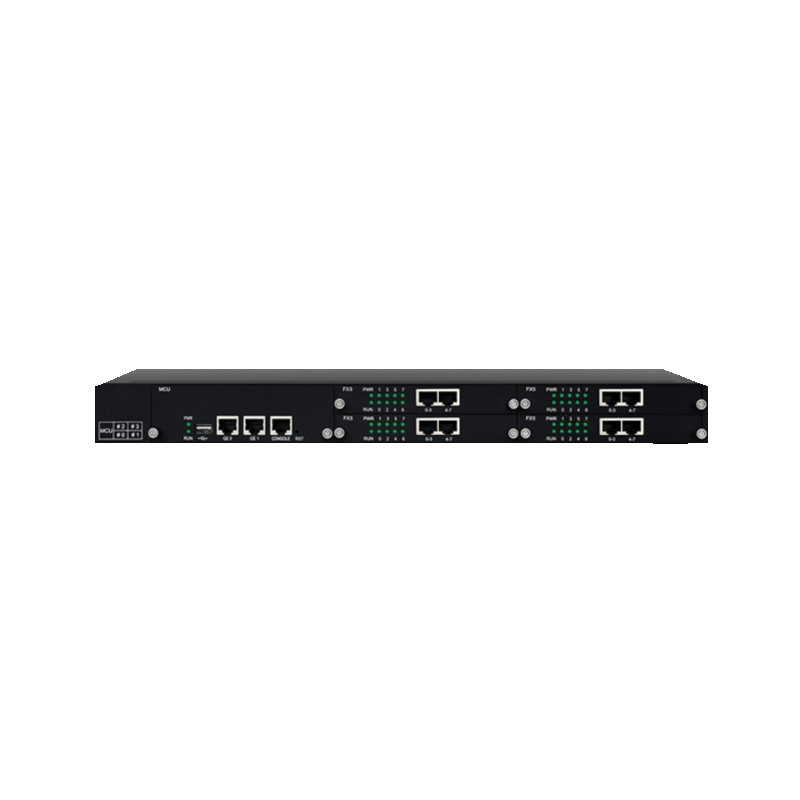

DAG3000-24O is a multi-functional analog gateway offering seamless connectivity between IP-based telephony networks and legacy telephones (POTS), and PBX systems. It adopts modularized hardware design that allows to expand FXO ports by adding boards according to user’s requirements. Each board has 8 FXO ports and the gateway supports 24 FXO ports at maximum.

DAG3000-24O supports the standard SIP protocol and it’s compatible with leading IMS/NGN platforms and SIP based IP telephony systems. Which is ideally suited for small and medium businesses, call centers and multi location environments that need VoIP services.

Specifications

Physical Interfaces

• 6 x RJ45 connectors with 4 FXO
• 1 x RS232, 115200bps
• 2 x 10/100/1000Mbps, RJ45

Voice & FAX

• G.711A/U law, G.723.1, G.729A/B, AMR, G.726, iLBC
• Silence Suppression
• Comfort Noise Generation(CNG)
• Voice Activity Detection(VAD)
• Echo Cancellation(G.168), with up to 128ms
• Adaptive (Dynamic) Jitter Buffer
• Programmable Gain Control
• T.38/Pass-through
• Modem/POS
• DTMF mode: Signal/RFC2833/INBAND
• VLAN 802.1P/802.1Q
• Layer3 QoS and DiffServ

FXO

• Connector: RJ45 with 4 FXO
• Dial Mode: DTMF/Pulse Dialing
• Caller ID: FSK, DTMF
• Polarity Reversal
• Answer Delay
• Busy Tone Detection
• No Current Detection

VoIP

• SIP v2.0 (UDP/TCP), RFC3261 SDP, RTP(RFC2833), RFC3262, 3263, 3264, 3265, 3515, 2976, 3311
• SIP TLS/SRTP
• RTP/RTCP, RFC2198, 1889
• RFC4028 Session Timer
• RFC3266 IPv6 in SDP
• RFC2806 TEL URI
• RFC3581 NAT, rport
• Outbound Proxy
• DNS SRV / A Query / NAPTR Query
• SIP Trunk
• Early Media / Early Answer
• NAT: STUN, Static/Dynamic NAT

Software Features

• Port Group
• Web ACL
• Telnet ACL
• Action URL
• Digitmap
• Routing Rules based Prefixes
• Caller/Called Number Manipulation

Network

• Static/Dynamic IP, PPPoE
• DHCP Client
• IPv4/IPv6
• TCP, UDP, TFTP, FTP, ARP, RARP, Ping, NTP, SNTP, HTTP/HTTPS, DNS
• Ping / Tracert
• DHCP Option 66, 120, 121

Environmental

• Power Supply: 100-240VAC, 50-60Hz
• Power Consumption: 20W (Typical)
• Operating Temperature: 0 ℃ ~ 45 ℃
• Storage Temperature: -20 ℃ ~ 80 ℃
• Humidity: 10%-90% Non-Condensing
• Dimensions (W/D/H): 437*330*44mm
• Unit Weight: 3.6kg

Maintenance

• SNMP v1/v2/v3
• TR069
• Auto Provisioning
• Web/Telnet
• Configuration Backup/Restore
• Firmware Upgrade via Web
• CDR
• Syslog
• Network Capture
• NTP/Daylight Saving Time
• IVR local Maintenance
• Cloud-based Management
