Description
OVERVIEW

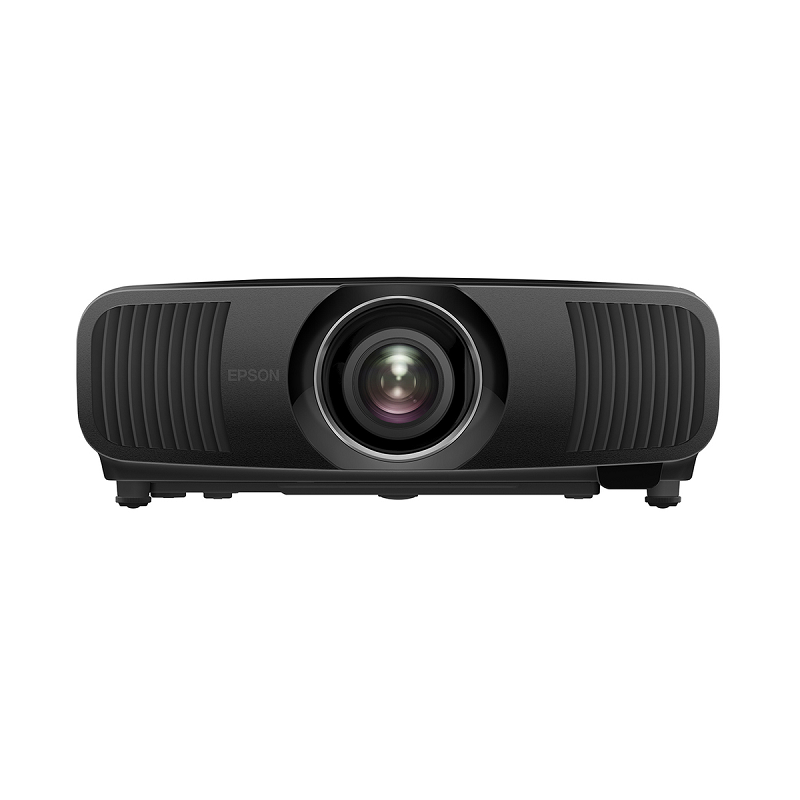

Featuring revolutionary 3LCD laser projection technology, 4K resolution2 and HDR10+ support3, this high-definition projector delivers phenomenal image quality and colour brightness that elevates any screening to an enthralling cinematic experience. Be prepared to be amazed by jet-black to bright, colour rich quality images for unparalleled realism!
- 2700 lumens Colour and White brightness1
- 4K resolution2
- HDR10+ support3
- Frame interpolation of up to 4K 60fps
-
Installation flexibility made possible with wide lens shift
Using Epson's proprietary shift device technology, a high aperture ratio 1080p panel is upscaled to 4K with incredible accuracy and precision to deliver bright 4K images far beyond those seen in competing projectors.
Dedicated 4K projector lens
The 4K image created by the panel, light source, and image processing chip is projected as-is across a wide angle. Based on Epson's goal of maintaining a consistent image quality from any angle, all materials and processes are carefully selected and inspected so that you can enjoy pristinely focused images even at high levels of lens shift with power.
2,500,000:1 high contrast
A much higher overall image contrast is now possible by applying Scene Adaptive Gamma when processing brightness and contrast. Along with the new Auto Contrast Enhancement, which enhances contract levels of objects. With advanced super-resolution technology, this produces 4K high-definition images that are clearer, more detailed, and more three-dimensional than ever before. The laser optical engine's 2,500,000:1 contrast creates jet-black images which combines with the high-quality image processing chip's contrast-enhancing effects to create a high-contrast image that looks superb in both bright and dark program scenes.
Express more with HDR10+
HDR is a key technology emphasized by filmmakers, that helps convey the visual intent of a film more faithfully. Evolution in HDR technology means that now even subtle shadow tones can be displayed in fine detail.
Fast-moving 4K video that's clear and smooth
As well as current frame interpolation technology, blurring reduction is now improved. Even when watching fast-moving sports or gaming, image contours stay clear, and motion is smooth to bring a fuller sense of realism and dynamism than ever to 4K video.
Designed for extraordinary installation flexibility
The wide-range powered lens shift (Vertical ± 96.3 %, horizontal ± 47.1 %) and zoom (x2.1) that only a high-end home model provides means the EH-LS12000B can be installed in living rooms as well as dedicated home cinemas. Users can operate the lens shift functions using the remote control, the projector control panel, or control commands. Additionally, a low noise level of 25dB/Light output 75% creates less distraction and allows for a more immersive experience, anytime, anywhere.
Practical functionality, convenient connectivity
eARC/ARC support
Thanks to ARC, audio can be broadcasted via the projector using an HDMI cable. In addition, eARC supports high-quality sound4, allowing you to enjoy a beautifully cohesive mix of video and sound in an easier installation.
4K/120fps input support,
Optimised support for fast-moving game video output.
SPECIFICATIONS
Projection Technology:
Specifications of Main Parts:
LCD:
Size: 0.74” wide panel with SMLA (C2Fine, 12bit, OD)
Lightsource:
Type: Laser Diode: 198W
Laser Life: 20,000 hours (Normal / ECO)
Resolution:
4K*2
Pixel Number: 8.3M Dots (1920 x 1080 x 4)
Native Resolution:1080p
Projection Lens:Type: Power Zoom, Power Focus
Screen Size (Projected Distance):
Standard Size:
100” diagonal 3.00 – 6.30m
Screen Size (Zoom: Wide): 50-300” (1.48m – 9.08m)
Screen Size (Zoom: Tele): 50-300” (3.13 – 18.99m)
Brightness:
White Light Output (Normal / Eco):2,700 lm / 1,000 lm
Colour Light Output:2700lm
Contrast Ratio:Over 2,500,000:1
Geometric Correction:
Vertical/Horizontal Keystone:
Vertical Keystone: ±30 degrees
Horizontal keystone: ±30 degrees
Point Correction:YES
Quick Corner:YES
Connectivity:
USB Interface:
USB Type A: 2 (1: Firmware Update, Copy OSD Settings,
Save Log or 5V/2A Power Supply; 2: For Opt HDMI
and 5V/300mA Power Supply)
USB Type Mini-B: 1 (For Firmware Update, Copy OSD Settings)
Network:Wired LAN: RJ45 x 1
Digital Input:HDMI: 2 (HDCP2.3; HDMI2: eARC/ARC)
Control I/O:
RS-232C: D-Sub 9pin x 1
Trigger Out (12V): 3.5mm Mini Jack x 1
Wireless:Optional using Streaming Media stick ELPAP12.
Power:
Power Consumption:
220 – 240V
Lamp/LD On (Normal / Eco): 302W / 198W
Standby (Network On / Off): 2W / 0.4W
Power Supply Voltage:100 – 240 V AC +/- 10%, 50/60 Hz
Operating Altitude:
Operating Altitude:
0 m to 3,048 m <0 ft to 10,000 ft> (over 1,500 m / 4,921 ft : with High altitude mode)
Start-Up Period:
Start-Up Period:
Less than 8 seconds
Warm-up period: 30 seconds
Cool Down Period:
Cool Down Period:Instant Off
Direct Power On/Off:
Direct Power On/Off:Yes / NA
Dimension Excluding Feet (W x H x D):
Dimension Excluding Feet (W x H x D):520 x 169 x 447mm
Weight:
Weight:Approx. 12.7 kg
Projection Lens:
Type:Power Zoom, Power Focus, Powered Lens Shift
Focal Length:22.5 – 46.7 mm
Zoom Ratio:1 – 2.1
F-number:2.0 – 3.0
Lens Shift:
Vertical Lens Shift: ±96.3 % (H Center, Powered)
Horizontal Lens Shift: ±47.1 % (V Center, Powered)
Screen Size:
Zoom: Wide: 50” to 300” [1.48 to 9.08 m]
Zoom: Tele: 50” to 300” [3.13 to 18.99 m]
Standard Size: 100” screen 3.00 to 6.30 m
Throw Ratio Range:1.35 – 2.84
Adjustment Functions:
Aspect Mode:
Auto / Normal / Full / Zoom / Anamorphic Wide / Horizontal Squeeze
Frame Interpolation:Yes
Image Enhancement:
Image Preset Mode:
Yes (Off / Preset1 / Preset2 / Preset3 / Preset4 / Preset5)
Mpeg Noise Reduction:Yes
Super Resolution:Yes
Scene Adaptive Gamma:Yes
Auto Contrast Enhancement:Yes
Operating Temperature:
Operating Temperature:
5 – 35 °C <41 – 95 °F> (0m / 0ft – 2286m / 7,500ft)
5 – 30 °C <41 – 86 °F> (Over 2,286m / 7,500ft)
20% – 80% Humidity, No Condensation
