Description
OVERVIEW
Powered by Epson 3LCD technology
All Epson projectors come built-in with 3-chip LCD technology for amazing colour, incredible detail and solid reliability. 3LCD's 3-chip architecture dedicates an entire chip to process each primary colour continuously, unlike single-chip technology that delivers colour sequentially. The result is full-time colour for vibrant, realistic images and video all delivered with 3LCD's true-to-life colour.
Installation Flexibility
SPECIFICATIONS
Projection Technology:
Specifications of Main Parts:
Panel Size:0.61” wide panel (C2 Fine, 10Bit)
Lightsource:
Type: Lamp: 200W UHE
Normal: 4,500 / Eco: 7,500 hours
Resolution:1080p
Brightness2:
White Light Output (Normal/Eco):2,700 lm / 1,780 lm
Colour Light Output:2,700 lm
Connectivity:
USB Interface:
USB Type B x 1 (For Firmware Update and Copy OSD Settings)
Digital Input:HDMI x 1 (HDCP 1.4)
Audio Out:Stereo Mini Jack x 1
Projection Lens:
Lens Shift:Vertical: +45% to +60%
Contrast Ratio:
Contrast Ratio:70,000:1
Screen Size (Projected Distance):
Standard Size:80” screen 2.35 to 3.82 m
Zoom : Wide:30” to 300” [0.87 to 8.9 m]
Zoom : Tele:30” to 300” [1.42 to 14.5 m]
Geometric Correction:
Vertical/Horizontal Keystone:±30° / ±30° (Slide Bar)
Auto Keystone:Yes (Vertical ±30°, Zoom: Tele)
Horizontal Slide Keystone Correction:Yes
Quick Corner:Yes
Adjustment Functions:
Aspect Mode:Yes (Auto / Normal / Full / Zoom)
Frame Interpolation:NA
Detail Enhancement:Yes
Start-Up Period:
Start-Up Period:
Under 15 seconds
Warm-up period: 30 seconds
Operating Temperature:
Operating Temperature:
5 – 35 °C <41 – 95 °F> ( 0m / 0ft – 2,286m / 7,500ft )
5 – 30 °C <41 – 86 °F> (Over 2,286m / 7,500ft )
(20% – 80% Humidity, No Condensation)
Operating Altitude:
Operating Altitude:
0 m to 3,048 m <0 ft to 10,000 ft> (over 1,500 m / 4,921 ft : with High Altitude mode)
Dimension Excluding Feet (W x H x D):
Fan Noise (Normal/Eco):36dB / 28dB
Dimension Excluding Feet (W x H x D):309 x 107 x 308mm
Power:
Power Supply Voltage:100 – 240 V AC ±10%, 50/60 Hz

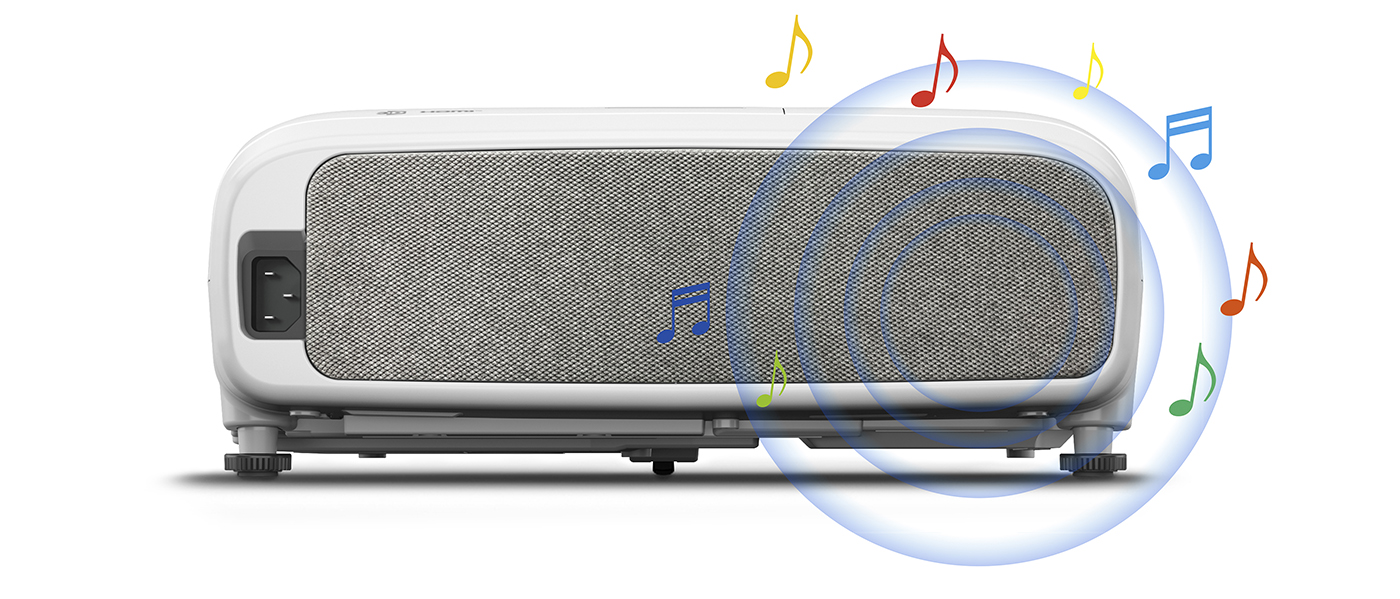

Internal Speaker(s):
Sound Output:10W Monaural (with enclosure)
Weight:
Weight:Approx. 3.8kg
Wireless Specifications (Smart Media Player Function):
Wireless LAN Generation :Wi-Fi 5
Supported Speed For Each Mode:
IEEE 802.11a (5GHz) / IEEE 802.11b (2.4GHz) / IEEE 802.11g (2.4GHz) / IEEE 802.11n (2.4GHz and 5GHz) / IEEE 802.11ac (5GHz)*3
Bluetooth:Version 5.0
Frequency Used:2.4GHz
Supported Codec:SBC
Supported OS:Android OS
Supported VOD Platform:Android TV
Video Output Resolution:Up to 3,840 x 2,160 60fps 4:4:4
Streaming Media Player:
Supported Operating System:
Supported Operating System: Android 9.0
Video Processing:
Supported Video Format: VP9, H.265HEVC, AVS2-P2, H.264, MPEG-4, WMV/VC-1 SP/MP/AP, AVS-P16/AVS-P2, MPEG-2, MPEG-1, RealVideo 8/9/10
Audio:
Supported Audio Format: Dolby Digital Plus Consumer Decoder, Dolby Digital Consumer Decoder
Bluetooth Audio Specification:
Version:Version 3.0
Communication Distance:Approx. 10m
Frequency Used:2.4GHz
Supported Codec:SBC, Qualcomm aptX Audio
