Description
OVERVIEW
High contrast ratio
Feast your eyes on beautifully projected well-defined images and videos regardless of ambient light, all thanks to Epson’s Auto Iris Technology, which provides optimum contrast and brightness for each scene.
Wide-range connectivity
Home entertainment is now made more accessible than ever! Epson’s own range of projectors allows integrated support for multiple connection methods including HDMI connection to suit a wide range of entertainment devices.
Wireless transmission
Projecting high contrast, vivid images smoothly is made convenient with the wireless transmission feature in our projectors. With the built-in Wi-Fi adaptor, Miracast connectivity and iProjection app, you can now project images directly from Android and Apple iOS smart devices, PCs and even laptops.
A quick, fuss-free, and user-friendly installation process, you are just a few steps away from your next movie with Epson’s home entertainment projectors. Thanks to vertical and horizontal keystone corrections, you can place your projector off centre from your projection screen to watch movies come alive.
SPECIFICATIONS
Projection Technology:
Specifications of Main Parts:
LCD:
0.61” wide panel (C2 Fine)
Native Resolution: 1080p
Lightsource:
Type: Lamp: 210W UHE
Lamp Life*1: High: 6,000 / Eco: 12,000 hours
Projection Lens:
Type: Optical Zoom (Manual) / Focus (Manual)
Throw Ratio: 1.02 – 1.23 (Wide – Tele
Zoom Ratio: 1 – 1.20
Focal Length: 14.06 – 16.82 mm
F-Number: 1.58 – 1.7
Brightness2:
White Light Output (Normal/Eco):3400 lm / 2,200 lm
Colour Light Output:3400 lm

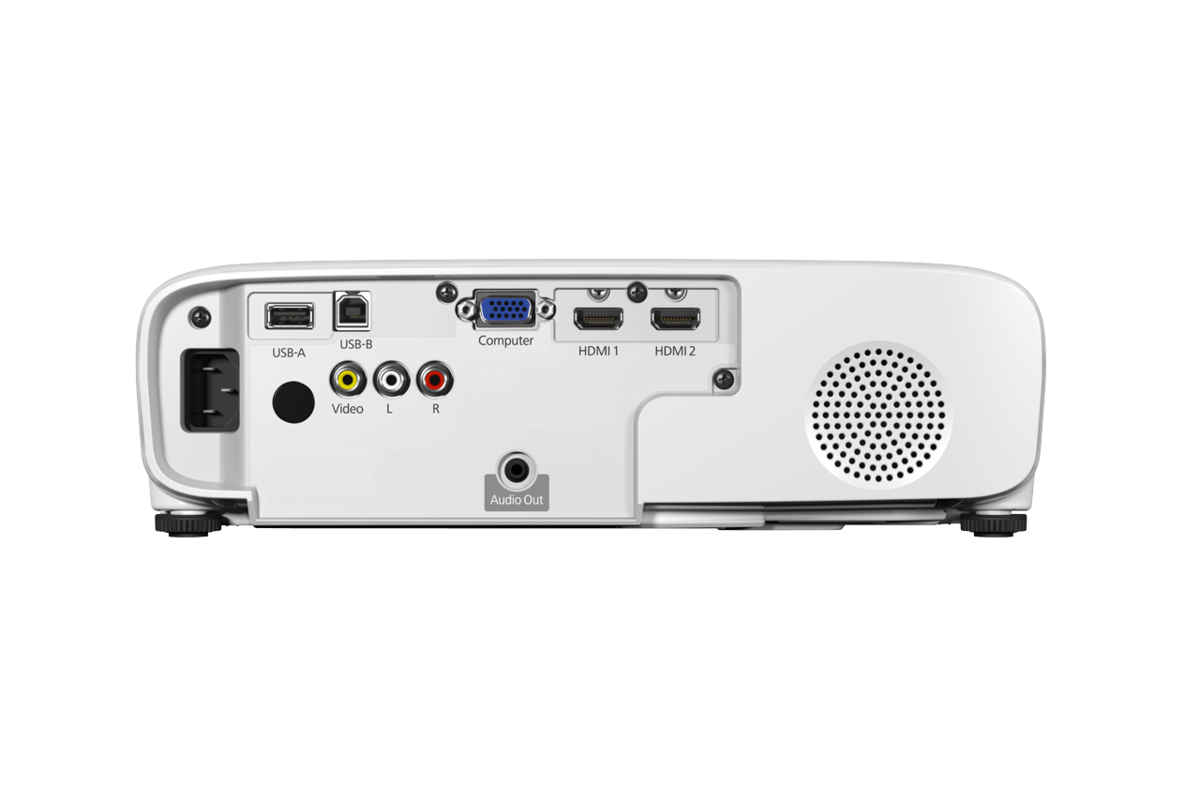

Connectivity:
USB Interface:
USB Type B: 1 (for Firmware Update, Copy OSD Settings
USB Type A: 1 (for Wireless LAN,1 (for Wireless LAN, Firmware Update, Copy OSD Settings)
Network:Wireless: Built-In
Analog Input:Composite: RCA x 1 (Yellow)
Digital Input:HDMI: 2
Audio Input:RCA White x1, Red x1
Audio Output:Stereo Mini Jack x 1
Contrast Ratio:
Contrast Ratio:16,000:1
Screen Size (Projected Distance):
Standard Size:60” screen 1.35 to 1.64 m
Zoom : Wide:30” – 300” [0.67 to 6.86 m
Zoom : Tele:30” – 300” [0.81 to 8.28 m]
Geometric Correction:
Vertical/Horizontal Keystone:±30° / ±30°
Adjustment Functions:
Picture In Picture:NAAspect Mode:Yes (Auto / Normal / Full / Zoom)
Image Enhancement:
Detail Enhancement:Yes
Start-Up Period:
Start-Up Period:
Under 6 seconds
Warm-up period: 30 seconds
Operating Temperature:
Operating Temperature:
5 – 40 °C <41 – 104 °F> (0m / 0ft – 2,286m / 7,500ft)
5 – 35 °C <41 – 95 °F> (over 2,286m / 7,500ft)
(20% – 80% humidity, No condensation)
Operating Altitude:
Operating Altitude:
0 m to 3,048 m <0 ft to 10,000 ft> (over 1,500 m / 4,921 ft : with High altitude mode)
Dimension Excluding Feet (W x H x D):
Dimension Excluding Feet (W x H x D):302 x 87 x 249 mm
Weight:
Weight:Approx. 2.8kg
Direct Power On/Off:
Direct Power On/Off:Yes / Yes
Optional Wireless & Built In Lan Specifications:
Supported Speed for each Mode:
IEEE 802.11b (2.4GHz): 11 Mbps*3
IEEE 802.11g (2.4GHz): 54 Mbps*3
IEEE 802.11n (2.4GHz): 72.2 Mbps*3
IEEE 802.11a (5GHz): 54 Mbps*3
IEEE 802.11n (5GHz): 150 Mbps*3
Wireless LAN Security:
Infrastructure: OPEN WPA2/WPA3-PSK, WPA2/WPA3-EAP
Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast
Access Point: OPEN WPA2-PSK(AES)
Cool Down Period:
Cool Down Period:Instant Off
Fan Noise:
Fan Noise (Normal / Eco):37dB / 28dB
Projectors Facets:
Resolution, Projectors Facets:1080p
Contrast Ratio, Projectors Facets:16,000:1
Brightness Range Lumens, Projectors Facets:2000
4K PRO-UHD, Projectors Facets:No
Features, Projectors Facets:
– Wifi
– Quick Corner
Laser / Lamp, Projectors Facets:Lamp
Screen Size, Projectors Facets:30 – 300
Projector Primary Usage, Projectors Facets:
– Living Room
– Home Entertainment
Power Supply Voltage:
Power Supply Voltage:100 – 240 V AC ±10%, 50/60 Hz
Power Consumption (220 – 240V):
Lamp On (Normal/Eco):327W / 225W
Stand By (Network On / Off):2.0 W / 0.3 W
