Description

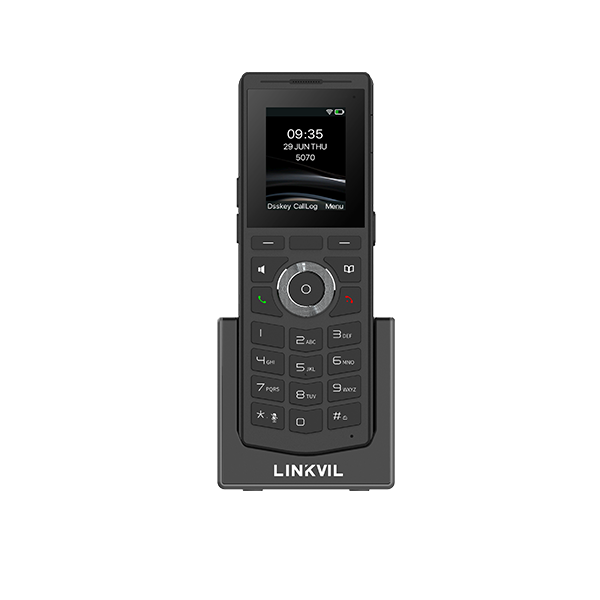

The Fanvil Linkvil W610W is a portable, elegant Wi-Fi phone designed for mobile communication applications. With built-in dual-band 2.4GHz & 5GHz Wi-Fi, the W610W can achieve stable and efficient communication in various wireless network environments. Moreover, it integrates Bluetooth 5.0 for pairing with headsets and mobile devices. Installed with a rechargeable 1900mAh battery, W610W is ready for 9 hours talk time or 200 hours standby time. W610W is widely used in various wireless scenarios such as enterprises, shopping malls, and hotels, providing users with a high-quality mobile communication experience.

Fanvil Linkvil W610W Technical Specifications

Generic

• 2.0-inch 240*320 color high-definition LCD display
• 4 SIP lines
• Caller ID
• Handset/Hands-free/Headset Mode
• Support 16 DSS keys
• HD Voice
• Vibration function
• Belt clip
• Desktop charging base
• Standard type-c interface
• Rechargeable Lithium Battery
• Support Bluetooth 5.0
• Support multi language: English/Chinese/German/French/Italian/Portuguese/Russian/Spanish

Phone Features

• Network time synchronization
• Local contacts
• Remote Phonebook (XML/LDAP, 1000 entries)
• Multi-language optional
• Call logs (600 entries)
• Blocked List/Allowed List
• Screen saver
• Personalized ringtone settings
• Screen backlight adjustment
• Memorandum
• SMS service
• Voicemail（MWI）
• Menu encryption settings
• Keypad lock/ backlight adjustment
• Volume adjustment

Call Features

• Auto-Answering
• Call out/Answer/Reject
• Call waiting/Switch
• Call forwarding
• Speed Dial
• Intercom
• Anonymous calls
• 3-way Conference
• Restrict outgoing calls
• IP direct dial
• Speed Dial
• Emergency call
• Caller ID Display
• Inquiry (dialing, incoming and outgoing calls)
• Do-Not-Disturb
• PTT one-key call

Audio

• Narrowband Codec: G.711a/u, G.729AB, G.723.1, G.726, iLBC
• Wideband Codec: G.722, Opus
• Acoustic Echo Cancellation (AEC)- maximum 96ms echo delay cancellation
• Voice Activity Detection（VAD）/ Comfort Noise Generation（CNG）/ Background Noise Estimation (BNE)
• Packet Loss Concealment
• Dynamic adaptive jitter cache up to 300ms
• DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIPINFO

Network

• Built-in Wi-Fi, support 802.11 a/b/g/n/ac/ax protocol:
  • 2.4GHz IEEE 802.11 b/g/n/ax
  • 5GHz IEEE 802.11a/n/ac/ax
  • Encryption：WPA /WPA2-PSK，802.1XEAP
• Built-in Bluetooth 5.0

Power Management

• Charging notification
• Full reminder
• Low battery prompt
• After the abnormal shutdown, the device will boot automatically when charging again
• Real-time statistics/display of system power

Protocols

• RTP/RTCP/SRTP
• STUN
• HCP
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069

Deployment and Maintenance

• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCPOPT66/SIPPnP/TR-069
• Web management interface
• Web-based Packet-dump
• Configuration export/import
• Firmware upgrade
• Syslog

Physical Specifications

• Drop height: 1.8m
• Shell material: plastic
• Charging Base x1
• Belt Clip x1
• Rechargeable Battery x1 1900mAh
• DC input: 5V/2A
• Charging port: Type-c
• Headphone jack: 3.5mm standard jack
• Installation method: Belt Clip /Desktop
• Operating temperature: 0℃~ 45℃
• Storage temperature:-20℃~ 60℃
• Relative humidity:10~95%
• Product size:156*53*17.7mm
• Product weight：:147g  (W610W+battery)
• Certificates： CE/FCC/UKCA/RoHS/SRRC/ERP/DOE/CEC/REACH
• Box size: 193x77x87mm
• Outer box size: 333x281x213mm (12PCS)
