Description

LINKVIL Cordless Multi-cell System is a flexible roaming communication system that supports both Multi-Cell and Single-Cell
modes. The Single-Cell system, managed by the W710H-Manager, allows communication over a LAN without the need for a
SIP account, supporting up to 30 terminals and 16 simultaneous calls. The Multi-Cell system, consisting of W710H-
Managers and W710H-Base stations, supports up to 300 terminals and 200 simultaneous calls, with seamless roaming and
switching. The LINKVIL Cordless Multi-cell System offers a reliable, large-capacity cordless solution, ideal for enterprises,
malls, hotels, warehouses, and mobile office applications.

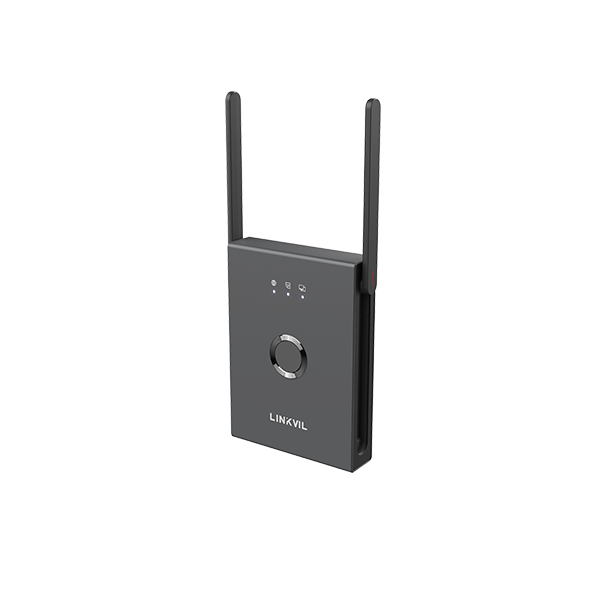

Fanvil Linkvil W710H Technical Specifications

Generic

• Seamless network roaming and handover
• Wireless signal coverage: up to 100 meters indoors and 700 meters
  outdoors
• Each Multi-Cell System：
  -Up to 20 base stations
  -Up to 300 handsets
  -Up to 300 SIP accounts
  -Up to 200 parallel calls
• Each base station：
  -Up to 30 handsets
  -Up to 16 parallel calls
• Supports multiple languages:
  English/Japanese/Korean/French/German/Dutch/Spanish/Italian/Polish/
  Portuguese/Greek/Turkish/Russian/Chinese/Tra-Chinese

Terminal Management

• Add/Delete/Import/Export
• Check terminal information
• Configure terminal: Reset, upgrade, DND
• Configuration management: 10 terminal configuration files
• Trouble removal: Capture package, syslog
• Local phone book: 1000 local contact for each terminal
• XML
• LDAP
• 20000 call log
• Call log statistics: All, Incoming, Outgoing, Missed, Forwards

Country/Region

• Frequency band
  902-928 MHz（America）

Network

•  Encryption: WPA2-PSK
• 10/100Mbps Ethernet (Bridge connection)
• IP mode: IPv4/IPv6/IPv4&IPv6
• Static IP / DHCP
• 802.1x Network access permission authentication
• VPN: L2TP / OpenVPN
• VLAN
• LLDP
• CDP

Audio

• Narrowband Codec: G.711a/u,G.729,G.729A,G.729B,G.729AB,iLBC
• Wideband Codec: G.722, Opus

Protocols

• 802.11ah
• UDP/TCP/TLS
• RTP/SRTP
• STUN
• DHCP
• IPv6
• LLDP
• 802.1x
• L2TP
• openVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS

Deployment & Maintenance

• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP/OPT66/SIP PnP/TR-069
• Web management interface
• Web-based Packet-dump
• Configuration export/import
• Firmware upgrade
• Syslog

Specifications

• 1 Reset Key
• Shell Material: Plastic Shell
• DC Input: 5V/1A
• RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
• Power: DC5V/1A or PoE
• Power Consumption (PoE): 0.75W – 1.14W
• Power Consumption (Power Adapter): 0.489W – 0.775W

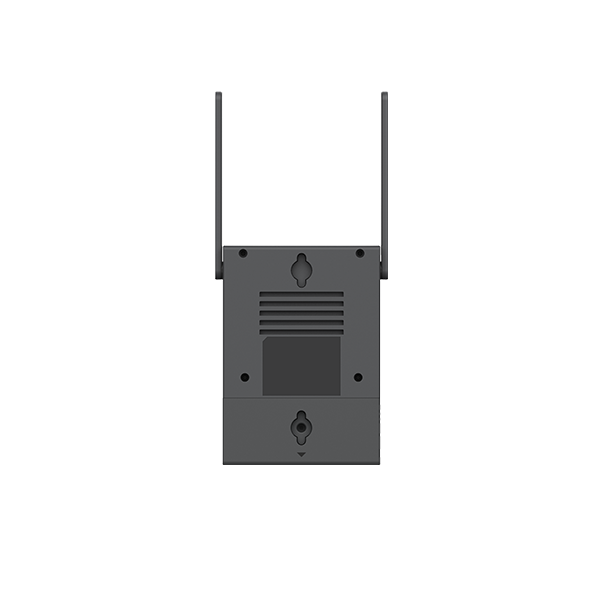

• Installation: Wall-mounted
• Working Temperature: -10°C ~ +45°C
• Storage Temperature: -20° – 60°
• Working Humidity: 5% to 95%
• Color: Gunmetal
• Device Dimensions: 140*100*26mm
• Product Weight: 183g
• Qty/CTN: 10pcs
• N.W/CTN: 3.1kg
• G.W/CTN: 3.7kg
• Certifications: CE- EMC/CE-LVD/CE-RF/FCC SDOC/FCC ID/part68/ERP/DOE/CEC/SRRC/ROHS/WEEE/REACH
• Gift Box Dimension: 242*127*59mm
• Outer CTN Dimensions: 320*274*262mm
