Description

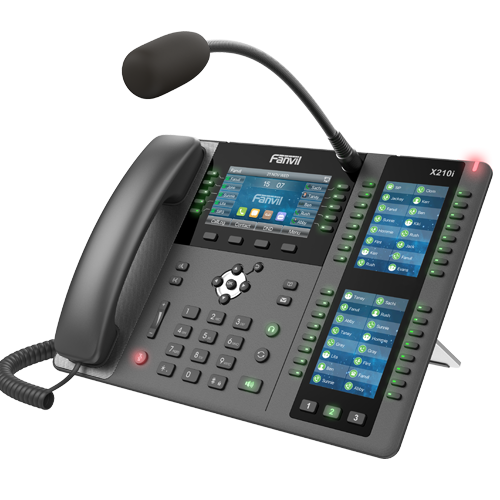

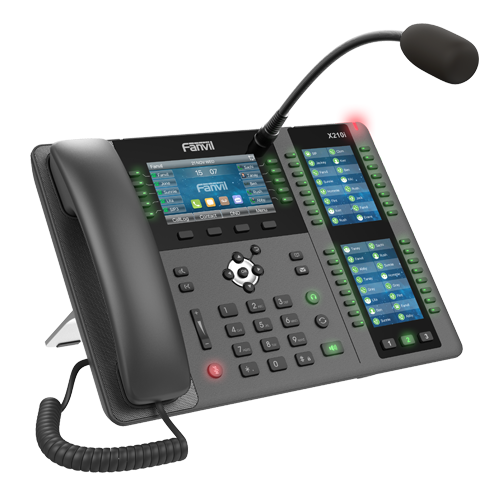

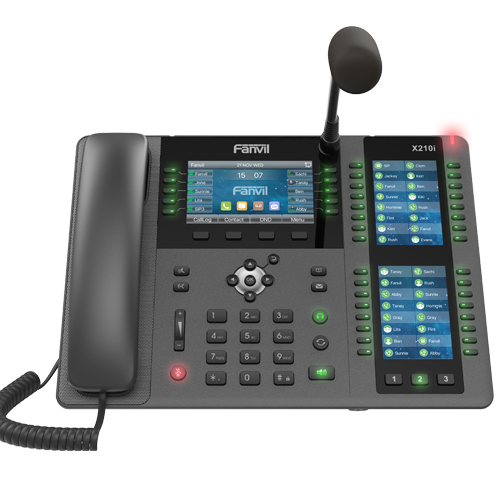

Fanvil X210i Paging Console Phone

The Fanvil X210i is a visualization paging console phone for industry customer. It is equipped with a gooseneck microphone and supports HD hands-free calling. With intelligent programmable DSS buttons, you can set up a one-click call function to improve communication efficiency. It is compatible with the standard SIP protocol and can be used as a monitoring center or host for office manager with functions such as make calls for external & internal phones, two-way intercom, monitoring, and broadcasting. The X210i improves the management efficiency and emergency response capabilities.

Fanvil X210i

Fanvil X210i Technical Specifications

Generic

• 20 SIP Lines
• HD Voice
• Support receiving Video Call
• PoE Enabled
• 3 LCDs (Main + DSS)
• Handset/ Handsfree/ Headset Mode
• Intelligent DSS Keys
• Optional External Power Supply


Phone Features

• Local Phonebook (2000 entries)
• Remote Phonebook (XML/LDAP, 2000 entries)
• Call logs (In/out/missed, 1000 entries)
• Blocked /Allowed List
• Screen saver
• Voice Message Waiting Indication (VMWI)
• Programmable DSS/Soft keys
• Network Time Synchronization
• Built-in Bluetooth 4.2: Support Bluetooth headset
• Support Wi-Fi Dongle
• Support Poly wireless headset
• Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
• Support Recording (Through Flash Drive or Server Recording )
• Action URL / Active URI

Call Features

• Call out/ answer/ reject
• Mute/ Unmute (microphone)
• Call Hold/ Resume
• Call Waiting
• Intercom
• Caller ID Display
• Speed Dial
• Anonymous Call (Hide Caller ID)
• Call Forwarding (Always/ Busy/ No Answer)
• Call Transfer (Attended/ Unattended)
• Call Parking/ Pick-up (Depending on the server)
• Redial
• Do-not-disturb
• Auto-Answering
• Voice Message (on the server)
• 6-way conference
• Hot Line
• Hot Desking

Video

• Video codec: H.264
• Video call resolution: QCIF / QVGA / CIF / VGA / 4CIF / 720P / 1080P

Audio

• HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response)
• HAC handset
• Wideband ADC/DAC 16KHz Sampling
• Narrowband Codec: G.711a/u, G.723.1, G.726-32K, G.729A/B, iLBC
• Wideband Codec: G.722, Opus
• Full-duplex Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR) / Automatic Gain Control (AGC)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer up to 300ms
• DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO

Networking

• Physical: 10/100/1000 Mbps Ethernet, dual bridged port for PC bypass
• IP Mode:IPv4/IPv6/IPv4&IPv6
• IP Configuration: Static / DHCP / PPPoE
• Network Access Control: 802.1x
• VPN: L2TP / OpenVPN
• VLAN
• LLDP
• QoS
• RTCP-XR(RFC3611),VQ-RTCPXR(RFC6035)

Protocol

• SIP2.0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• IPv6
• LLDP
• PPPoE
• 802.1x
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069
• AES128 & AES256

Deployment & Maintenance

• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
• Web Management Portal
• Web-based Packet Dump
• Configuration Export / Import
• Phonebook Import/Export
• Firmware Upgrade
• Syslog

Physical Specifications

• Main LCD x1: 4.3 inch (480×272) color-screen LCD
• DSS Key-mapping LCD x2: 3.5 inch (320×480) color-screen LCD
• Keypad: 77 keys, including
  • 4 Soft-keys
  • 6 Function keys (Hold, Call forward, Phonebook, MWI, Headset, Redial)
  • 4 Navigation keys
  • 1 OK key
  • 1 Return key
  • 12 Standard Phone Digits keys
  • 3 Volume Control keys, Up/Down/Mute(Microphone)
  • 1 Hands-free key
  • 42 DSS Keys with tri-color LED
  • 3 Page-Switch (PS) key
• HD Handset (RJ9) x1
• Standard RJ9 Handset Wire x1
• 1.5M CAT5 Ethernet Cable x1
• Gooseneck Microphone x1
  • Directional microphone
  • Frequency response: 20Hz~20KHz
  • SNR: ≥60 dB.1kHz at 1 Pa
• Back Rack x1
• Gooseneck MIC Port x1: Gooseneck Microphone x1
• RJ9 Port x2: Handset x1, Headset x1
• RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
• USB2.0 Port x1: Standard A, Connect with Wi-Fi USB dongle or Flash Driver
• DC Power Input: 5V/2A
• Power Consumption (PoE):1.88~7.3W
• Power Consumption (Adapter): 1.36~5.84W
• Working Temperature: 0~45℃
• Working Humidity: 10~95%
• Qty/CTN: 10pcs
• N.W/CTN: 18.77kg
• G.W/CTN: 19.9kg

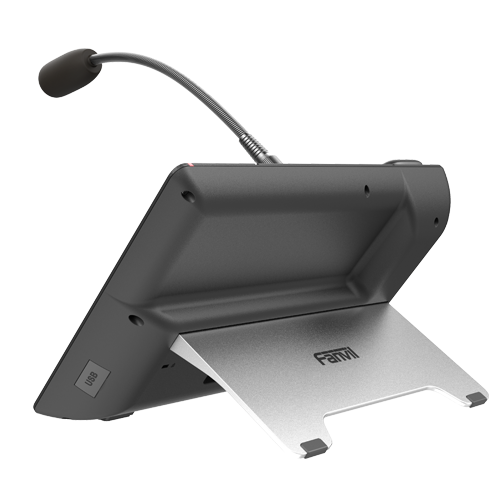

• Installation: Desktop Stand
• Color: Dark gray
• Device Dimensions
  • Desktop Stand (Angles 1): 309 x 214 x 187mm
  • Desktop Stand (Angles 2): 309 x 226 x 167mm
• Gift Box Dimensions: 323 x 301 x 71mm
• Outer CTN Dimensions: 624 x 383 x 348mm (10 PCS)
