Description

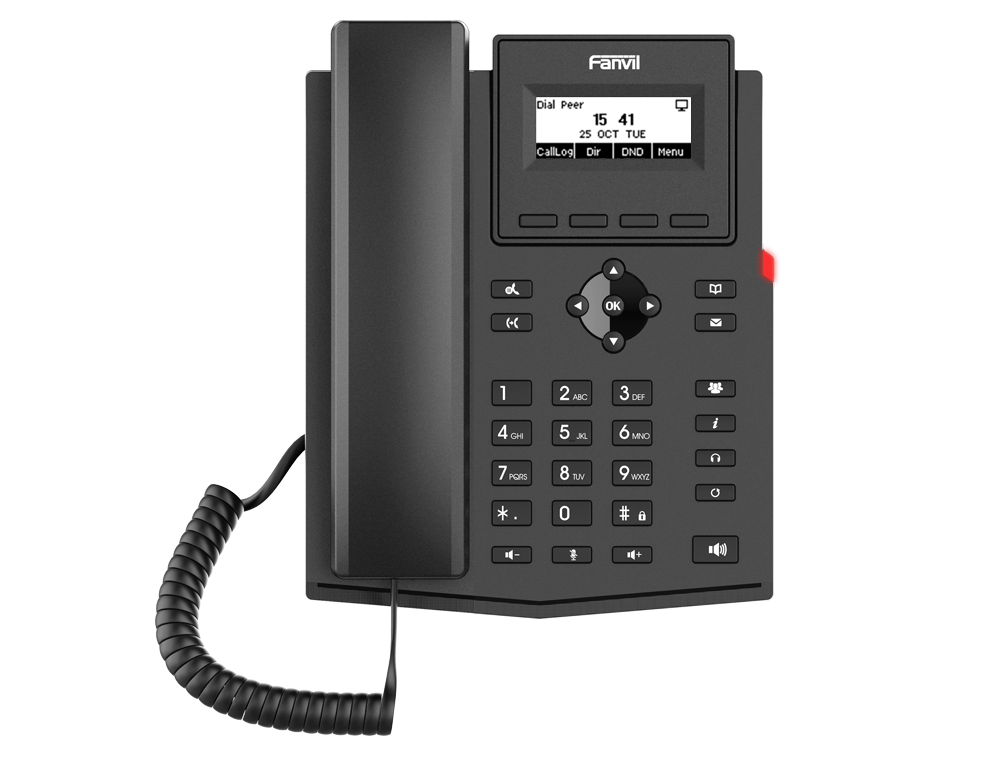

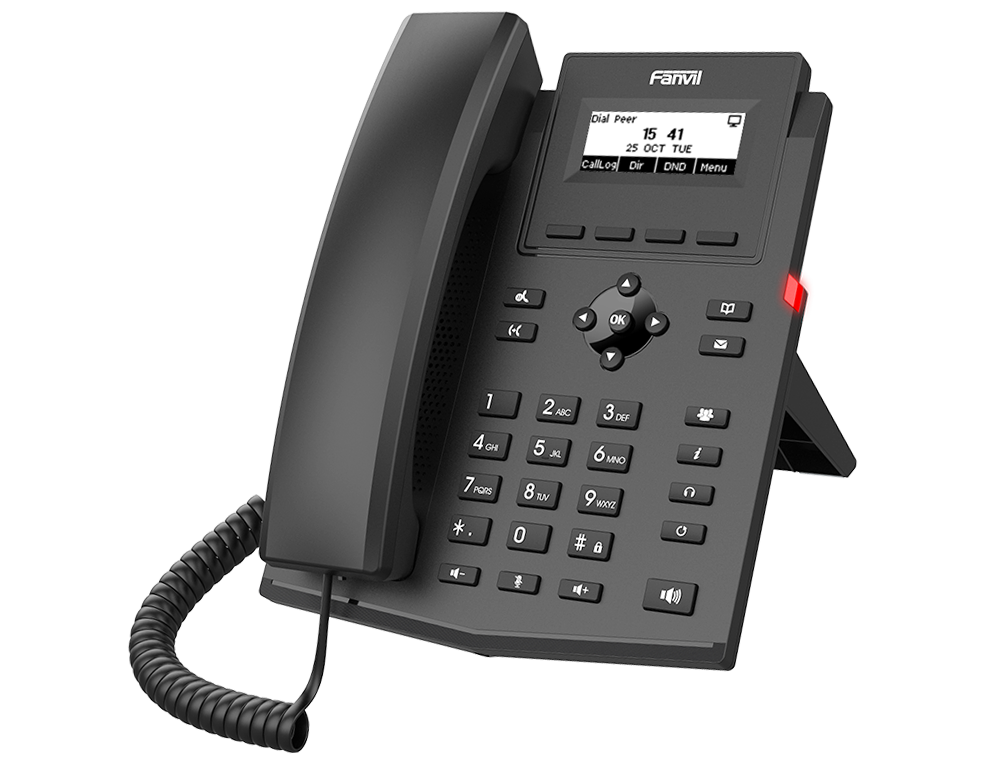

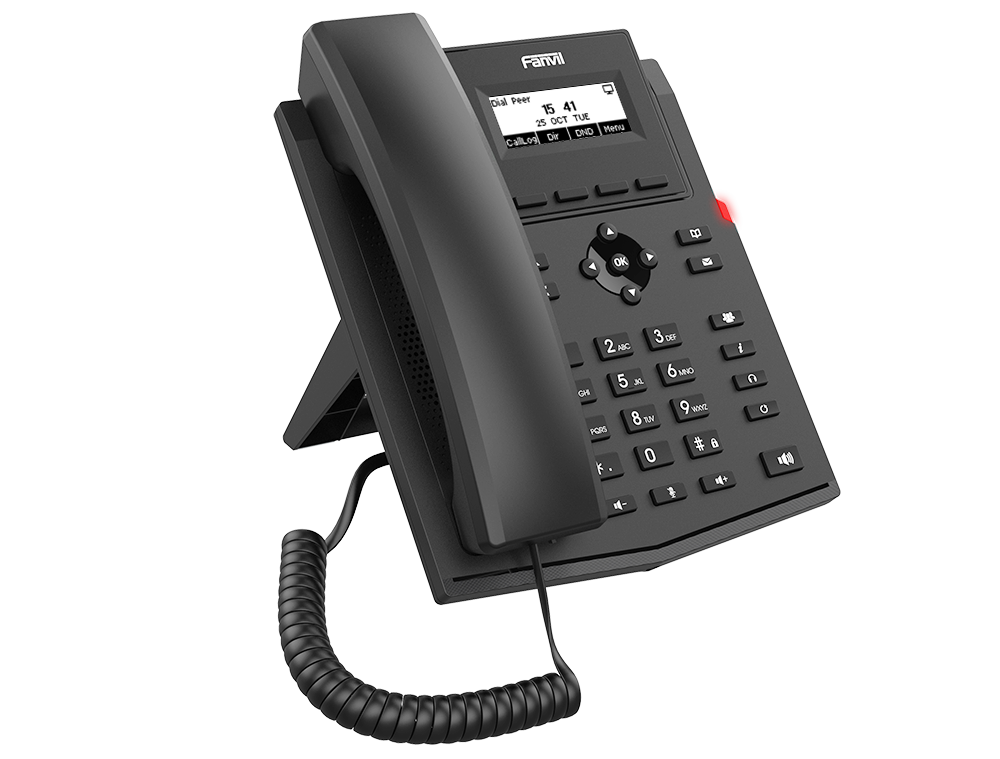

Fanvil X301P Entry Level IP Phone

X301/X301P is the cost-effective SIP phone with multi-function. It features a 2.3- inch 128×48 pixel dot-matrix display, supporting 2 SIP lines and 6-way audio conference to render a user-friendly experience. X301/X301P has rich functions such as HD audio, dual 10/100 Mbps network ports and integrated PoE(only X301P), providing an efficient and high-quality business communication experience for enterprises.

Fanvil X301P IP Phone – Technical Specifications

Generic

• 2 SIP Lines
• HD Voice
• PoE Enabled(only X301P)
• Dot-matrix display screen
• Handset / Hands-free / Headset mode
• Desktop Stand / Wall mountable (optional)
• Optional External Power Supply

Call Functions

• Call out / answer / reject
• Mute / unmute (microphone)
• Call Hold / Resume
• Call Waiting
• Intercom
• Caller ID Display
• Speed dial
• Anonymous call (Hide Caller id)
• Call Forward (Always/Busy/No Answer)
• Call Transfer (Attended/Unattended)
• Call Parking/Pick-up (depending on server)
• Redial
• Do-Not-Disturb
• Auto-Answering
• Voice Message (with server)
• 6-way Conference
• Hot Line
• Hot Desking

Phone Functions

• Local Phonebook (1000 entries)
• Remote Phonebook (XML/LDAP, 1000 entries)
• Call log (in/out/missed, 600 entries)
• Black/White List Call Filter
• Voice Message Waiting Indication (VMWI)
• Programmable DSS/Softkeys
• Network Time Synchronization
• Support Poly wireless headset (Through Poly APD-80 EHS Cable)
• Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
• Support Recording (Through Server)
• Action URL / Active URI
• uaCSTA

Audio

• Wideband ADC/DAC 16KHz Sampling
• Narrowband Codec: G.711a/u, G.723.1,G.726,G.729A/B, iLBC
• Wideband Codec: G.722, Opus
• Full-duplex Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR) / Automatic Gain Control (AGC)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer
• DTMF: In-band, Out-of-Band (RFC2833/ SIP INFO)
• VQM voice quality monitoring

Networking

• Physical:  10/100Mbps Ethernet, dual bridged port for PC bypass
• IP Configuration: Static / DHCP / PPPoE
• IP Mode : IPv4/IPv6/IPv4&IPv6
• Network Access Control: 802.1x
• VPN: L2TP/ OpenVPN
• VLAN
• LLDP
• QoS
• RTCP-XR (RFC3611),VQ-RTCPXR (RFC6035)

Protocols

• SIP2.0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• IPV6
• LLDP
• PPPoE
• 802.1x
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069
• AES128 & AES256

Deployment & Maintenance

• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP/OPT66/SIP PNP/TR-069
• Web Management Portal
• Web-based Packet Dump
• Configuration Export/Import
• Phonebook Export/Import
• Firmware Upgrade
• Syslog

Physical Specifications

• LCD: 128×48 pixel graphical LCD with backlight
• Keypad: 33 keys, including
  • 4 Soft-keys
  • 9 Function keys (Hold/Transfer/Voice message/Conference/Phonebook /MWI/Headset/Redial/Hands-free)
  • 4 Navigation keys
  • 1 OK key
  • 12 Standard Phone Digits keys
  • 3 Volume Control keys (Up/Down/Mute (Microphone))
• Handset (RJ9) x1
• Standard RJ9 Handset Wire x1
• 1.5M CAT.5E Ethernet Cable x1
• Desktop Stand x1
• Status Indicator Light x1 (Red)
• RJ9 Port x2: Handset x1, Headset x1
• RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
• Security Slot x1
• DC Power Input: 5V/0.6A
• Power Consumption(Adapter): 0.8~1.29W
• Power Consumption(PoE): 1.25~1.86W
• Working Temperature: 0~45℃
• Working Humidity: 10~95%
• Installation:
  • Desktop Stand
  • Wall mountable (optional )
• Color: Black
• N.W/CTN: 9.05kg(X301), 8.55kg(X301P)
• G.W/CTN: 9.76kg(X301), 9.26kg(X301P)
• Device Dimensions:
  • Desktop Stand (45°): 169×201.1×177.4 mm
  • Desktop Stand (50°): 169×191.9×185.8 mm
  • Wall mountable: 169×120.1×213.7 mm
• Gift Box Dimensions: 250x220x55mm
• Outer CTN Dimensions: 460x300x270mm(10 PCS)
