Description

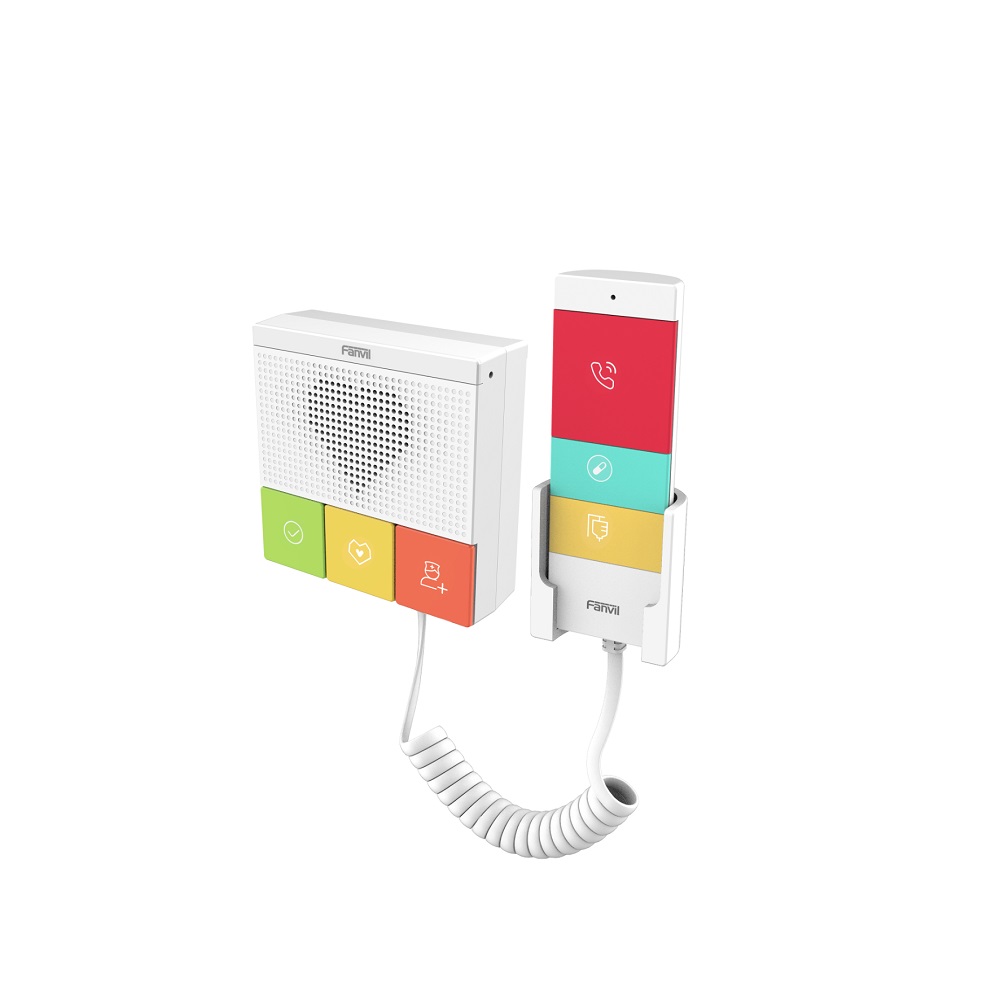

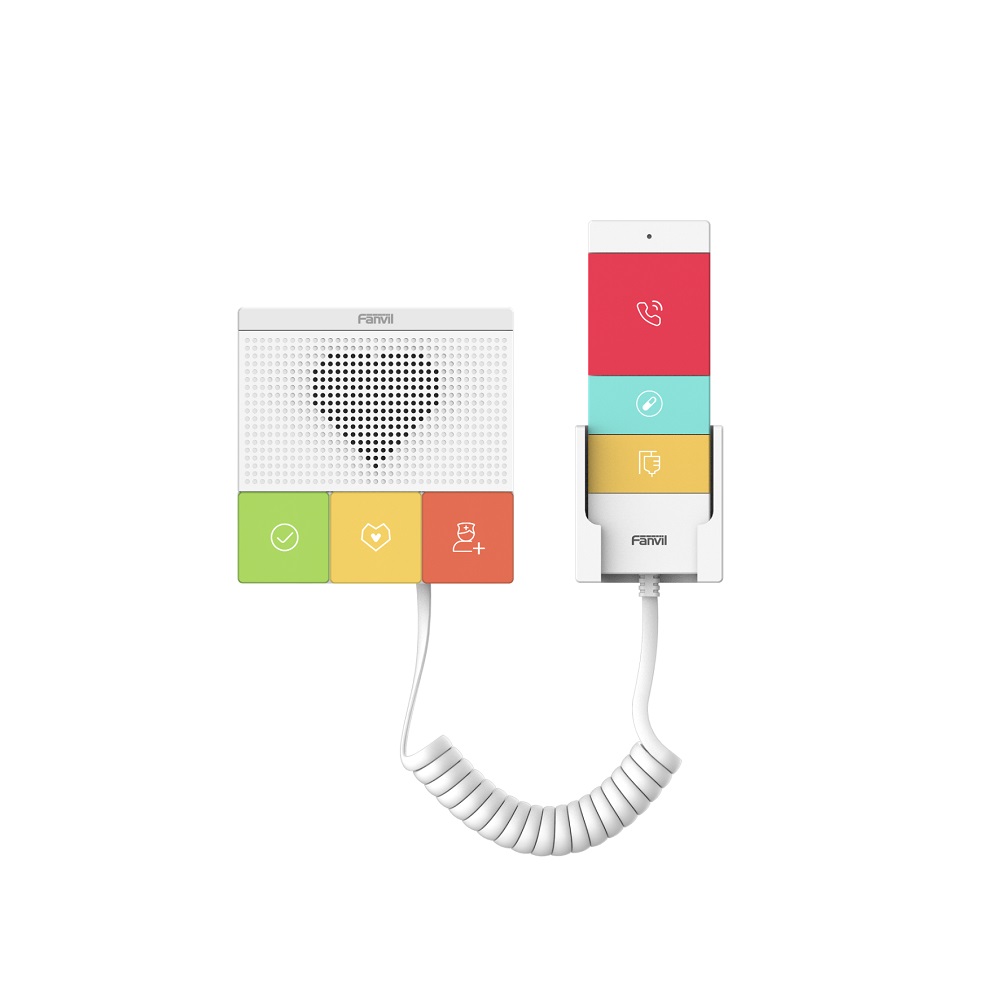

Fanvil Y501-Y SIP Healthcare Intercom

Fanvil Y501-Y series SIP healthcare intercoms are specially designed for home-based care, nursing house and other indoor application, realizing the emergency
communication, security protection, broadcasting, etc. They feature HD audio, 2 SIP accounts, detachable DSS keys, IP54 waterproof and dustproof, and built-in 2.4G &
5G Wi-Fi(Y501W-Y/Y501W-Y-E). Y501-Y series provide different installation modes of standard 86 box embedded and wall mountable, bringing you a timely healthcare communication experience

Fanvil Y501-Y Technical Specifications

General

• 2 SIP Lines
• Auto answer
• HD Voice
• PoE Enabled
• Intercom function
• External Power Supply (Optional)

Intercom Function

• Support customized DSS keys
• Support wireless button (Optional)
• Network Time Synchronization
• Action URL / Active UR

Audio

• Narrowband Codec: G.711a/u, G.729AB, G.723.1, G.726, iLBC
• Wideband Codec: G.722, Opus
• Duplex intercom with Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer up to 300ms
• DTMF: In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO

Networking

• Physical: 10/100 Mbps Ethernet
• IP Mode: IPv4/IPv6/IPv4&IPv6
• IP Configuration: Static / DHCP / PPPoE
• VPN: L2TP / OpenVPN
• VLAN
• LLDP
• QoS

Protocols

• SIP2.0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• IPv6
• LLDP
• PPPoE
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069

Deployment & Management

• Auto-provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
• Web management portal
• Web-based packet dump
• Configuration export / import
• Firmware upgrade
• Syslog

Physical Specification

• Y501-Y Series: 6 DSS buttons (Finish, Nursing, Assistant, Call, Dressing change, Infusion)
• Up to 10 wireless buttons supported
• Status indicator light: Red(registration failed、network anomaly)、Green(registration successful、call)
• 1 RJ45 port
• 1 short circuit input interface
• 1 relay: NC/NO Contacts, Max DC30V/1A, AC125V/0.5A
• Power: DC12V/1A or POE
• Power Consumption (Adapter)： ➢ 0.94W~1.98W(Y501-Y/Y501-Y-E)
• Power Consumption (PoE)： ➢ 1.48W~2.37W(Y501-Y/Y501-Y-E)
• Housing material: ABS
• 433 wireless button specification：
  • ➢ communication mode：FSK
  • ➢ working frequency：433MHZ
  • ➢ communication protocol：Ebelong1.1
• Installation: Indoor installation
  • ➢ Standard 86 Box Embedded
  • ➢ Wall Mountable
• Color: White
• working temperature: -10 ~50 °C
• Storage temperature: -20 ~ 50 °C
• Relative humidity: 10% – 90%
• N.W/CNT：3.97kg
• G.W/CNT：4.4 kg
• Equipment Dimension:
  • ➢ 87.56 x 87.56 x 30mm (Wall Mountable)
  • ➢ 87.56 x 87.56 x 21.5mm (86 Box Embedded)
• Packing Dimension: 234x168x44 mm
• Outer CTN Dimension: 356x245x254mm (10pcs)
