Description

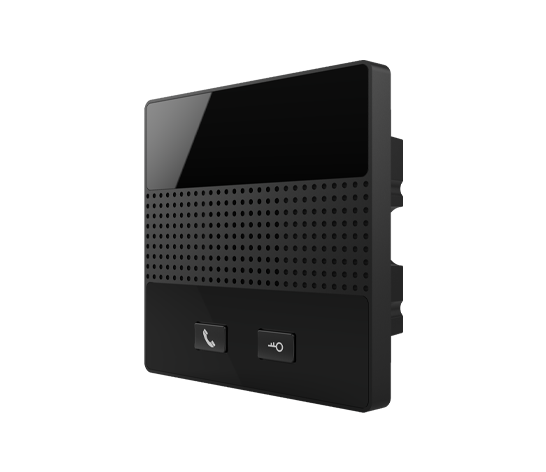

i86-03
Series SIP Audio Intercom
Flyingvoice i86 series is specifically designed for secure and convenience indoor and outdoor operation with an IP65 waterproof-certified and dust-resistant casing. It offers audio intercom, configurable buttons and broadcasting function that empower hotels, nursing homes, schools, hospitals, apartments, and more different usage scenarios with voice intercom solution that expands security and communication capabilities, meeting various demands of users.
Flyingvoice i86-03 Main Features
-
International Standard Appearance Design
It can be easily attached to the type86 surface mount back box for wall installation. -
Strong Compatibility with SIP
Based on SIP protocols, it can easily access the mainstream IPPBX in the market and can be deployed and used in both LAN and WAN. -
HD Voice and Dual MIC
i86 is equipped with "dual MIC array", providing users with clear and high-quality voice; It supports Opus and G.722 codec to provide users with abundant communication intercom functions. -
High Protection Level
Built with an IP65 waterproof-certified and dust-resistant plastic casing for secure indoor and outdoor operation in temperatures between -40 °C to 75 °C. -
Easy Configuration and Effortless Management
Integrated 802.11n 2.4GHz Wi-Fi and support for online management platforms such FACS, FRPS and FDC to configure your device more conveniently even for mass deployment in seconds.
Flyingvoice i86-03 Technical Specifications
Product Description
- Model : i86-03
- Function Key : 1 * Speed Dial, 1 * Unlock
- Size > 86mm* 86mm*38.8mm(L*W*H)
- PoE > Support
- Power Supply > PoE or DC 12V/1A
- Dual Microphone Array > Support
- Speaker > 1W 8Ω
- Port and Slot > 1 RJ45 port: 100M Ethernet Port > 1 set of short-circuit input port: Rated voltage 12V > 1 set of short-circuit output port: NC/COM connected by default, Rated voltage 12V, Maximum Voltage DC 30V/1A, AC 125V/0.3A > 1 power port: DC input 12V /1A > 1 expansion card slot for TF card
- Wi-Fi > Built-in 2.4G Wi-Fi (For Configuration)
- Protection Level > IP65
- Operating Temperature > -40~75°C
Intercom Function
- Basic Function > 2 SIP lines, one-touch help, one-touch alarm, two-way intercom, real-time broadcast, short-circuit input/output control
- IP Direct Dial > Support
- Function Key > Support custom settings: speed dial, multicast, Action Url
- IP Broadcasting method > Long-press 3s for voice broadcast
Audio Features
- Narrowband Encoding > G.711(A/u), iLBC, G.729A/B
- Broadband Encoding > G.722, Opus
- HD Voice > Duplex Intercom Acoustic Echo Cancel > Voice Activity Detection > Comfort Noise Generator > Packet Loss Concealment
- DTMF > In-band, RFC 2833, SIP info
Network Features
- Network Speed > 10/100Mbps Ethernet
- IP Mode > IPv4/IPv6/IPv4&IPv6
- IP Acquisition Method > Static IP setting, Dynamic DHCP acquisition(Default)
- Network Security > Support DSCP, 802.1p QoS > Link layer discovery protocol > VPN: OpenVPN > Support SRTP, TLS call encryption > Support IEEE802.1x media access control
- Time Synchronization > Support SNTP protocol
Configuration & Maintenance
- Automated Deployment > TR069 network management (TR104/TR106) > FTP/TFTP/HTTP/HTTPS auto configuration > Support FACS Cloud Network Management Access > Support Flyingvoice FRPS redirection > DHCP Option66
- Management and Maintenance > Support Web configuration > Support factory reset, reboot > Support packet capture and system log export
- IP-PBX Features > Server-based recording capabilities > Outbound calls
Others
- Package Contents > i86-03* 1 > Quick Installation Guide * 1 > Connector * 1 > Screw Driver * 1, Screws*2 > Qty/CTN: 20 PCS > N.W/CTN: 7.74 kg > G.W/CTN: 10.10 kg > Gift box size: 137mm*126mm*64mm > Carton size: 340mm*268mm*298mm
