Description

R182-N20

Rack Server – 3rd Gen Intel^® Xeon^® Scalable – 1U DP 10-Bay Gen4 NVMe/SATA/SAS



R182-N20 Product Overview



R182-N20 System Block Diagram



Value-added Management

GIGABYTE offers free-of-charge management applications via a specialized small processor built on the server.

GIGABYTE Management Console
For management and maintenance of a server or a small cluster, users can use the GIGABYTE Management Console, which is pre-installed on each server. Once the servers are running, IT staff can perform real-time health monitoring and management on each server through the browser-based graphical user interface. In addition, the GIGABYTE Management Console also provides:

• Support for standard IPMI specifications that allows users to integrate services into a single platform through an open interface
• Automatic event recording, which can record system behavior 30 seconds before an event occurs, making it easier to determine subsequent actions
• Integrate SAS/SATA/NVMe devices and RAID controller firmware into GIGABYTE Management Console to monitor and control Broadcom® MegaRAID adapters.



Specifications

Dimensions (WxHxD, mm) :

• 1U
• 438 x 43.5 x 780

Motherboard

• MR92-FS1

CPU

• 3rd Generation Intel® Xeon® Scalable Processors
• Dual processor, 10nm technology
• CPU TDP up to 270W

NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable

Socket

• 2 x LGA 4189
• Socket P+

Chipset

• Intel® C621A Chipset

Memory

• 32 x DIMM slots
• DDR4 memory supported only
• 8-channel memory architecture
• RDIMM modules up to 128GB supported
• LRDIMM modules up to 128GB supported
• 3DS RDIMM/LRDIMM modules up to 256GB supported
• Supports Intel® Optane™ DC Persistent Memory (DCPMM)
• 1.2V modules: 3200/2933/2666 MHz

LAN

• Rear side:
  • 2 x 1Gb/s LAN ports (Intel® I350-AM2)
  • Support NCSI function
• 1 x 10/100/1000 management LAN

Video

• Integrated in Aspeed® AST2500
• 2D Video Graphic Adapter with PCIe bus interface
• 1920×1200@60Hz 32bpp, DDR4 SDRAM

Storage

• Front side:
  • 2 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
  • 8 x 2.5" SATA/SAS hot-swappable bays

SAS card is required for SAS devices support

SAS

• Depends on SAS add-on card

RAID

• Intel® SATA RAID 0/1/10/5


Expansion Slots
Riser Card CRS101E:

• 1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_0

Riser Card CRS101G:

• 1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_1

1 x OCP 3.0 slot with PCIe Gen4 x16 bandwidth, from CPU_0
Supports NCSI function

1 x OCP 2.0 mezzanine slot with PCIe Gen3 x8 bandwidth, from CPU_1
Supports NCSI function

Internal I/O

• 2 x SATA 7-pin connectors
• 2 x CPU fan headers
• 1 x USB 3.0 header
• 1 x TPM header
• 1 x VROC connector
• 1 x Front panel header
• 1 x Backplane board header
• 1 x IPMB connector
• 1 x Clear CMOS jumper
• 1 x BIOS recovery switch

Front I/O

• 1 x USB 3.0
• 1 x Power button with LED
• 1 x ID button with LED
• 1 x Reset button
• 1 x NMI button
• 2 x LAN activity LEDs
• 1 x HDD activity LED
• 1 x System status LED

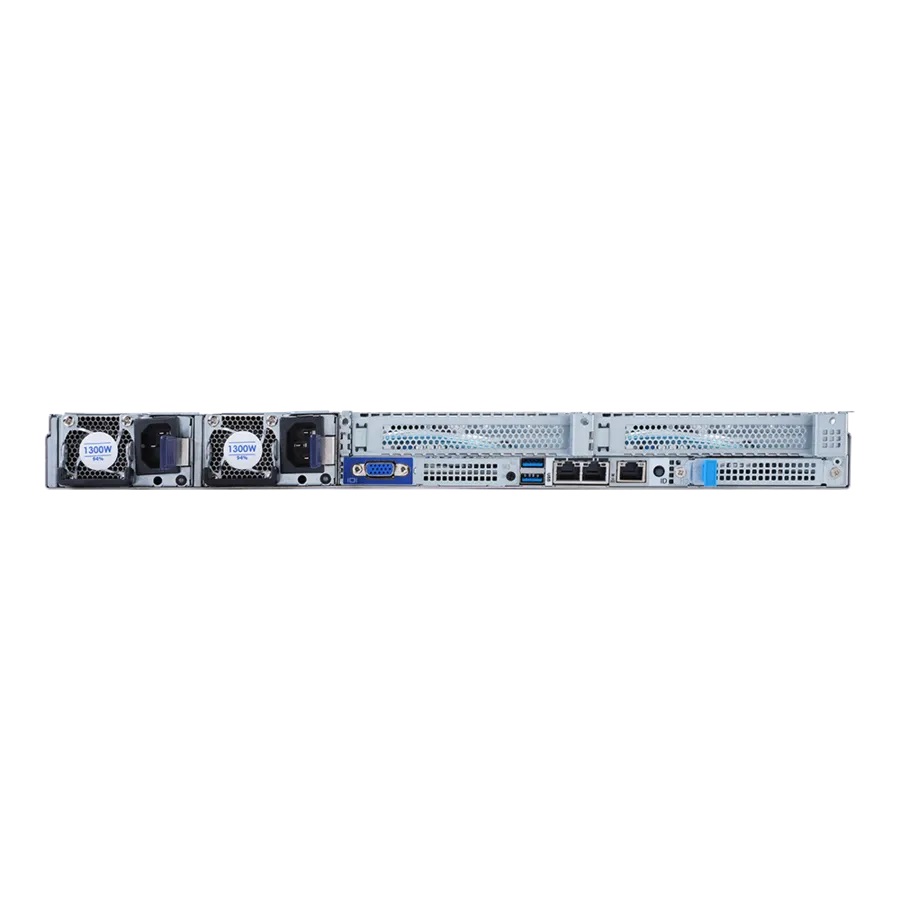

Rear I/O

• 2 x USB 3.0
• 1 x VGA
• 2 x RJ45
• 1 x MLAN\
• 1 x ID button with LED

Backplane Board

• Speed and bandwidth:
  PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s

TPM

• 1 x TPM header with SPI interface
• Optional TPM2.0 kit: CTM010

Power Supply

• S1+1 1300W 80 PLUS Platinum redundant power supplies
• AC Input:
  • 100-240V~/ 12-7A, 50-60Hz
  • 200-240V~/ 8A, 50-60Hz
• DC Input:
  • 240Vdc/ 6.5A
• DC Output:
  •  Max 1000W/ 100-240V~
    • 12V/ 80.5A
    • 12Vsb/ 3A
  •  Max 1300W/ 200-240V~ or 240Vdc Input
    • 12V/ 105.4A
    • 12Vsb/ 3A

System Management

• Aspeed® AST2600 management controller
• GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
• Dashboard
• HTML5 KVM
• Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
• Sensor Reading History Data
• FRU Information
• SEL Log in Linear Storage / Circular Storage Policy
• Hardware Inventory
• Fan Profile
• System Firewall
• Power Consumption
• Power Control
• Advanced power capping
• LDAP / AD / RADIUS Support
• Backup & Restore Configuration
• Remote BIOS/BMC/CPLD Update
• Event Log Filter
• User Management
• Media Redirection Settings
• PAM Order Settings
• SSL Settings
• SMTP Settings

OS Compatibility

• Windows Server 2016
• Windows Server 2019
• Windows Server 2022
• Red Hat Enterprise Linux 7.9 (x64) or later
• Red Hat Enterprise Linux 8.2 (x64) or later
• Red Hat Enterprise Linux 9.0 (x64) or later
• SUSE Linux Enterprise Server 12 SP5 (x64) or later
• SUSE Linux Enterprise Server 15 SP2 (x64) or later
• Ubuntu 20.04 LTS (x64) or later
• Ubuntu 22.04 LTS (x64) or later
• VMware ESXi 6.7 Update3 P03 or later
• VMware ESXi 7.0 Update2 or later
• VMware ESXi 8.0 or later
• Citrix Hypervisor 8.2.0 or later

System Fans

• 2 x 40x40x56mm (29,700rpm)

Operating Properties

• Operating temperature: 10°C to 35°C
• Operating humidity: 8%-80% (non-condensing)
• Non-operating temperature: -40°C to 60°C
• Non-operating humidity: 20%-95% (non-condensing)

Weight

• Net Weight: 13.6 kg
• Gross Weight: 23.4 kg

Packaging Dimensions

• 985 x 588 x 250 mm

Packaging Content

• 1 x R182-N20
• 2 x CPU heatsinks
• 1 x 2-Section Rail kit

Part Numbers

• Barebone package: 6NR182N20MR-00-1*
• Motherboard: 9MR92FS1NR-00
• 2-Section Rail kit (CMA not supported): 25HB2-3A0203-K0R
• CPU heatsink: 25ST1-453204-M1R
• Backplane board – CBP10A5: 9CBP10A5NR-00
• Riser card – CRS101E: 9CRS101ENR-00
• Riser card – CRS101G: 9CRS101GNR-00
• Fan module: 25ST2-405623-A0R
• Power supply: 25EP0-213002-F3S

Optional parts:

• 3-Section Rail kit (Supports CMA): 25HB2-A56120-K0R
• Cable Management Arm: 25HBZ-R18100-K0R
• GRAID SupremeRAID Core Software Module License
• a) SupremeRAID License: 25FC1-SR1000-AFS (4-native NVMe RAID)
• RMA packaging: 6NR182N20SR-RMA-A100
