Description

The Grandstream GRP2650 is a professional 14-line model designed with zero-touch provisioning for mass deployment and easy management. It features a sleek design and a suite of next-generation features including: 5-way voice conferencing to maximize productivity, integrated PoE & Wi-Fi, full HD audio on both the speaker and handset to allow users to communicate with the utmost clarity, EHS support for Plantronics headsets and integrated USB headset support.

Grandstream GRP2650 Key Features

• • 14 lines, 16 SIP accounts
  • Supported by GDMS which provides a centralized interface to configure, provision, manage and monitor Grandstream devices
  • RJ9 headset jack allowing EHS with Plantronics headsets, and integrated USB Headset support
  • Full-duplex speakerphone with HD audio to maximize audio quality and clarity
  • Equipped with noise shield technology to minimize background noise
  • Dual switched autosensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE
  • Supports 5-way audio conferencing for easy conference calls
  • Enterprise-level security protection including secure boot, dual firmware images, and encrypted data storage
  • Swappable faceplate to allow for easy logo customization
  • Integrated dual-band Wi-Fi 802.11 a/b/g/n/ac (2.4Ghz & 5Ghz)

The GRP 2650 series includes carrier-grade security features to provide enterprise-level security, including secure boot, dual firmware images and encrypted data storage. For cloud provisioning and centralized management, the GRP2650 is supported by Grandstream’s Device Management System (GDMS), which provides a centralized interface to configure, provision, manage and monitor deployments of Grandstream endpoints.

Grandstream GRP2650 – Technical Specifications

Protocols/Standards

• SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP, IPv6

Network Interfaces

• Dual switched auto-sensing 10/100/1000 Mbps Ethernet ports with integrated PoE

Bluetooth

• Yes, integrated

Wi-Fi

• Yes, Integrated dual-band (2.4GHz and 5GHz) Wi-Fi 6 (802.11a/b/g/n/ac/ax) – hardware
  version 5.0 and above

Graphic Display

• 5.0 inch (1280×720) TFT color LCD

Feature Keys

• 14 line keys with up to 16 SIP accounts,
• 6 XML programmable context sensitive softkeys,
• 5 navigation/menu keys,
• 9 dedicated function keys for: MESSAGE(withLED indicator),
• TRANSFER, HOLD, HEADSET, MUTE, SEND/REDIAL, SPEAKERPHONE,VOL+, VOL-

Voice Codecs and Capabilities

• Support for G7.29A/B, G.711µ/a-law, G.726, G.722 (wide-band), G723, iLBC, OPUS,
  in-band and out-of-band DTMF (in audio, RFC2833, SIP INFO)

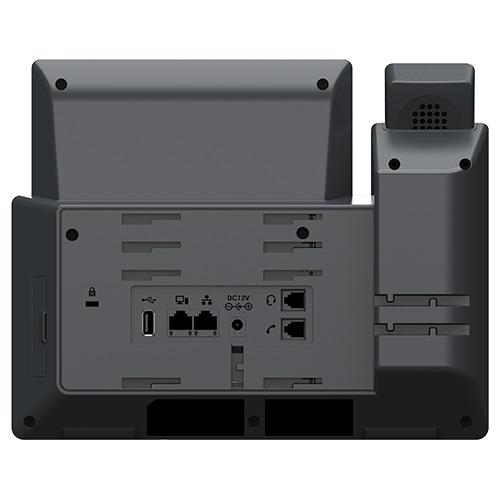

Auxiliary Ports

• RJ9 headset jack (allowing EHS with Plantronics headsets), USB

Telephony Features

• Hold, transfer, forward, 5-way conference, call park, call pickup, shared-callappearance(SCA)/bridged-line-appearance(BLA), downloadable phonebook(XML, LDAP, up to 1000 items), call waiting, call log(up to 1000 records), XML customization of screen, off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot-desking, personalized music ringtones and music on hold, server redundancy and fail-over

HD Audio

• Yes, HD handset and speakerphone with support for wideband audio, and dual
  microphone

Extension Module

• Yes, GBX20

Base Stand

• Yes, 2 angle positions available, Wall Mountable (Wall Mount *sold separately)

QoS

• Layer 2 QoS (802.1Q, 802.1P), 802.11e (WMM) and Layer 3 (ToS, DiffServ, MPLS) QoS

Security

• User and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, SRTP, TLS, 802.1x media access control, secure boot

Multi-language

• English, Chinese, Korean, Japanese, German, Italian, French, Spanish, Portuguese, Russian, Croatian and more

Upgrade/Provisioning

• Firmware upgrade via FTP/TFTP / HTTP / HTTPS, mass provisioning using GDMS/TR069 or AES encrypted XML configuration file

Power & Green Energy Efficiency

• Universal power adapter included: Input: 100 – 240V; Output: +12VDC, 1A Integrated Power-over-Ethernet (802.3af) IEEE 802.3az Energy-Efficient Ethernet, Max power consumption 6.2W(power adapter)

Physical

• Unit Weight: 1050g ; Package Weight:1620g
• Dimension: 263mmx 210mmx 82mm

Temperature and Humidity

• Operation: 0°C to 40°C
• Storage: -10°C to 60°C
• Humidity: 10% to 90% Non-condensing

Package Content

• GRP2650 phone
• Handset with cord
• Phone stand
• 12V power adapter
• Network cable
• Quick Installation Guide
• GPL license

GRP2650 Compliance

• FCC: Part 15 (CFR 47) Class B
  CE: EN55022 Class B; EN55024 Class B;EN61000-3-2; EN61000-3-3;EN60950-1
  RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950.1
