Description

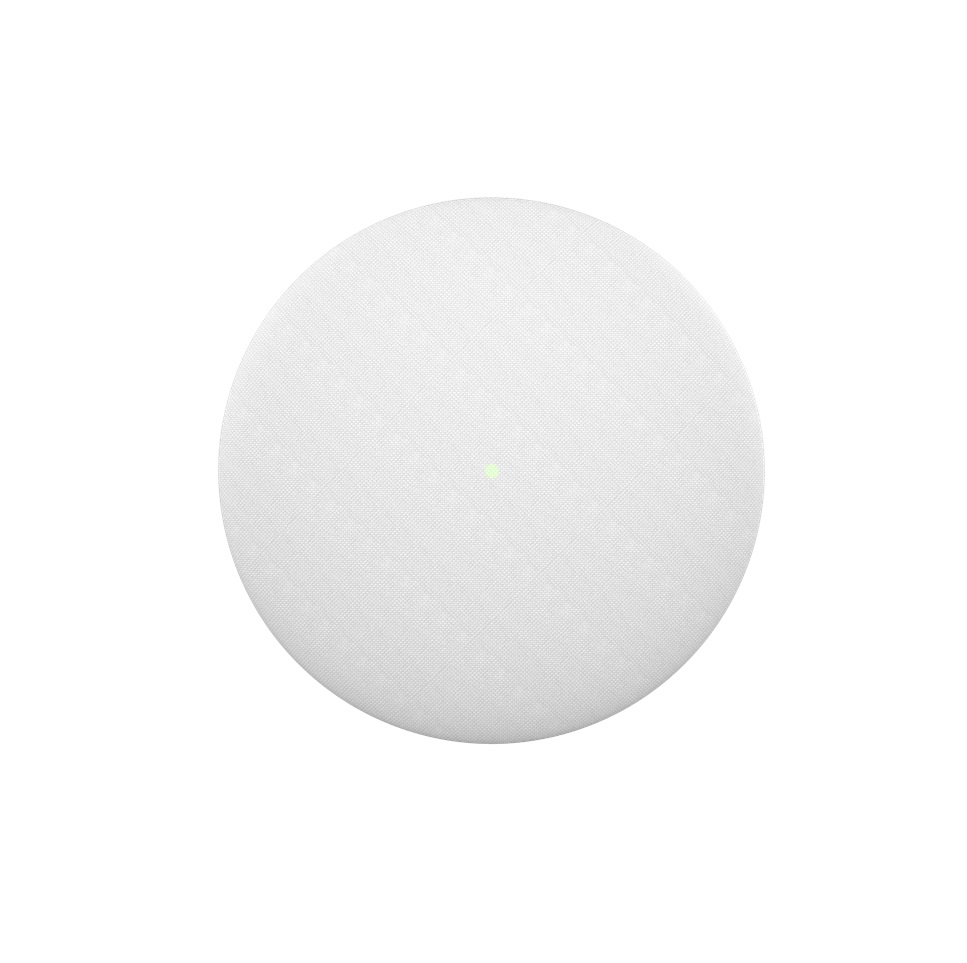

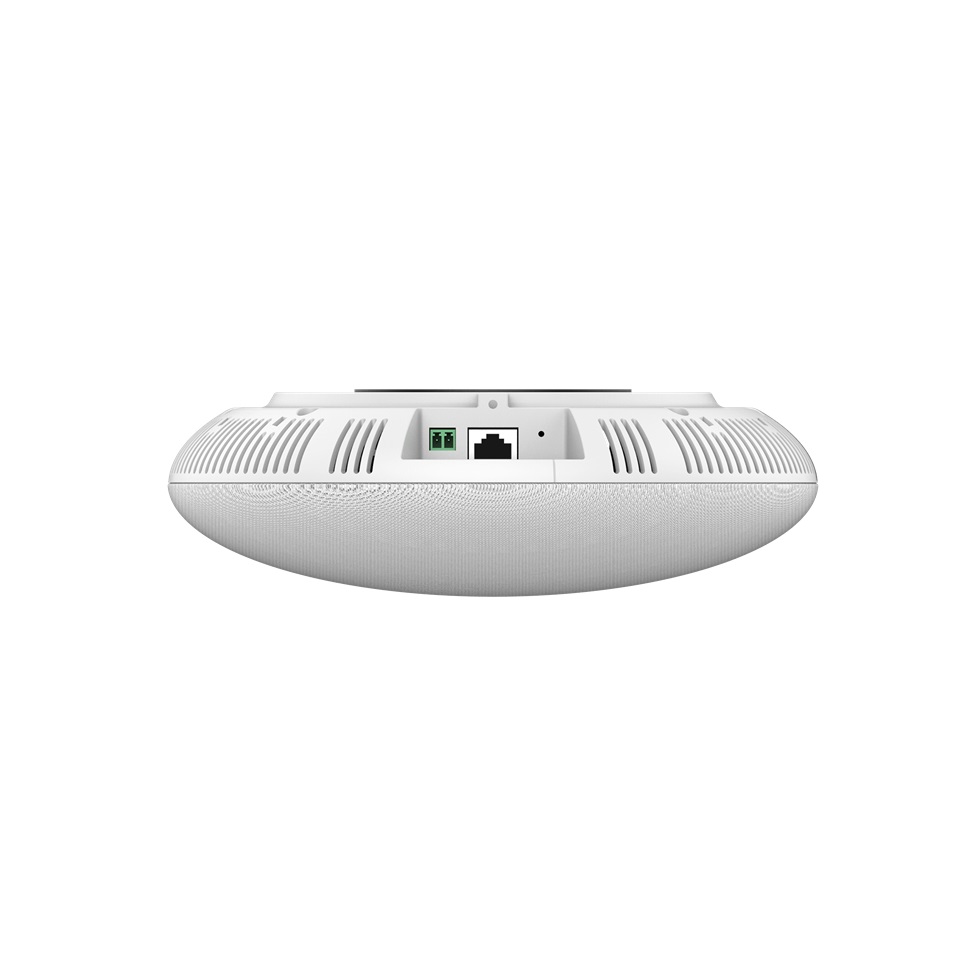

GSC3510 SIP Intercom Speaker/Microphone
The GSC3510 is a SIP intercom speaker and microphone that allows offices, schools, hospitals, apartments and more to build powerful voice intercom solutions that expand security and communication. This
robust SIP intercom device offers 2-way voice functionality with both a high-fidelity 8W HD speaker and 3 directional microphones with Multichannel Microphone Array Design (MMAD) that offer a 4.2 meter
pickup distance. The GSC3510 supports a wide-range of peripherals including Bluetooth devices, built-in whitelist and blacklists to easily block unwanted calls, integrated dual-band Wi-Fi and advanced acoustic
echo cancellation. By pairing the GSC3510 with other Grandstream devices, including desktop and cordless IP phones as well as the GDS series of Facility Access products, users can easily sculpt a state-of-the-art
security and voice intercom solution. Thanks to it’s modern industrial design and rich features, the GSC3510 is the ideal intercom speaker/microphone for any setting.
Grandstream GSC3510 – Technical Specifications
Protocols/Standards
- SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, LLDP-MED, TR-069, 802.1x, TLS, SRTP,
IPv6, OpenVPN®
Network Interfaces
- One 10/100 Mbps port with integrated PoE/PoE+
Bluetooth
- Yes, integrated. Bluetooth 4.0 + EDR
Wi-Fi
- Yes, dual-band 2.4 & 5GHz with 802.11 a/b/g/n, WMM
Auxiliary Port
- One 2-pin multi-purpose input port, Reset
Voice Codecs and Capabilities
- G.711µ/a, G.722 (wide-band), G.726-32, iLBC, Opus, G.729A/B in-band and out-of band DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC, ANS
Telephony Features
- SIP Paging, Multicast Paging, call-waiting with priority override
HD Audio
- Yes, HD speakerphone with support for full band audio with 48KHz voice sampling
frequency
Speaker and Microphones
- 8W high-fidelity HD speaker; 3 directional microphones with beam-forming capability and up to 4.2-meter voice pickup distance
QoS
- Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS
Security
- User and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, TLS, SRTP, HTTPS, 802.1x media access control
Multi-language
- English, German, French, Spanish, Portuguese, Russian & Chinese
Upgrade/Provisioning
- Firmware upgrade via TFTP / HTTP / HTTPS or local HTTP upload, mass provisioning using AES encrypted XML configuration file
Power & Green Energy Efficiency
- Integrated PoE* 802.3af Class 3, PoE+ 802.3at Class 4
Temperature and Humidity
- Operation: 0°C to 40°C Storage: -10°C to 60°C, Humidity: 10% to 90% Non-condensing
Package Content
- GSC3510 SIP Intercom Speaker/Microphone, mounting kits, quick installation guide, GPL license
Physical
- Unit Dimensions: 215.32mm (diameter) x 68.7mm (depth); Unit Weight: 0.8kg, Box Weight: 1.39kg
Compliance
- FCC: Part 15 (CFR 47) Class B; UL 60950 (power adapter); FCC Part 15C, FCC Part 15E, MPE
- CE : EN 55032; EN 55024; EN 61000-3-2; EN 61000-3-3; EN 60950-1; EN 301 489 1/17; EN 300 328; EN 301 893; EN 62311; RoHS
- RCM: AS/NZS CISPR 32/24; AS/NZS 60950.1; AS/NZS 4268
- IC: ICES 003, RSS 247, RSP-100, RSS 102
