Description

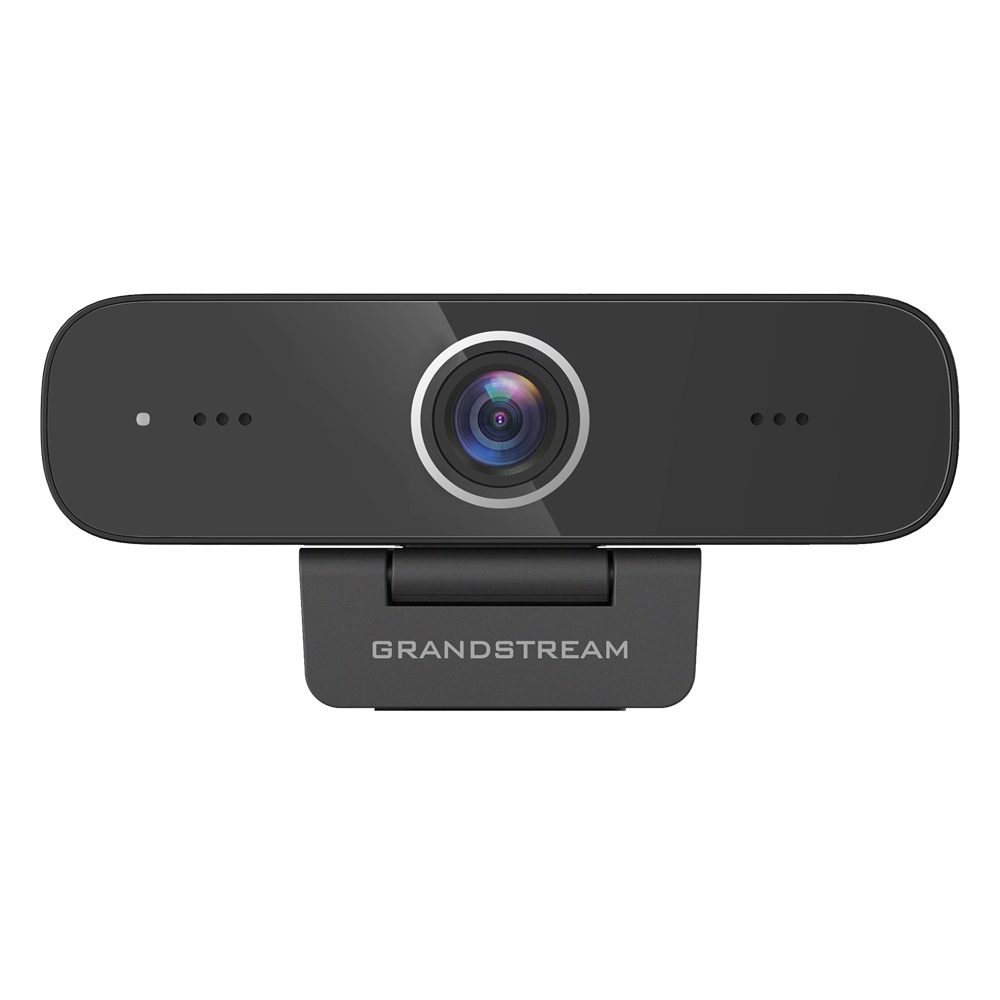

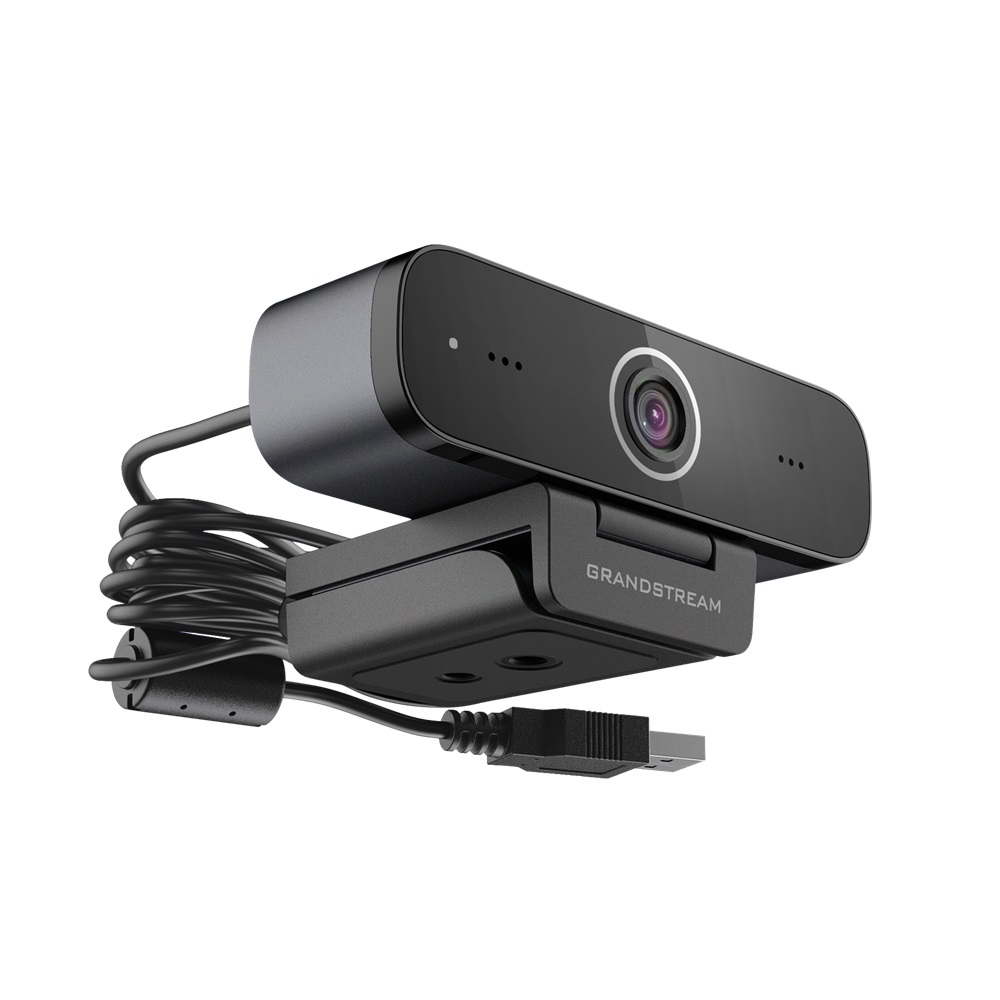

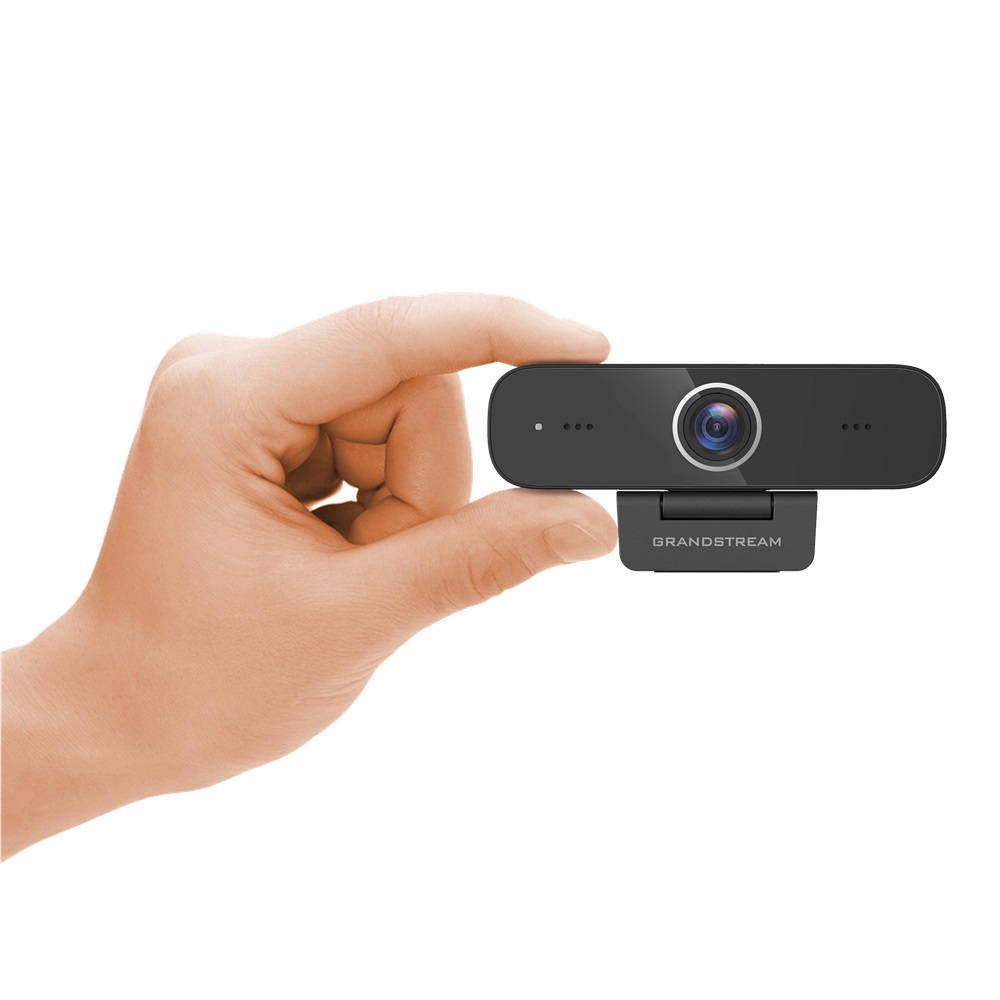

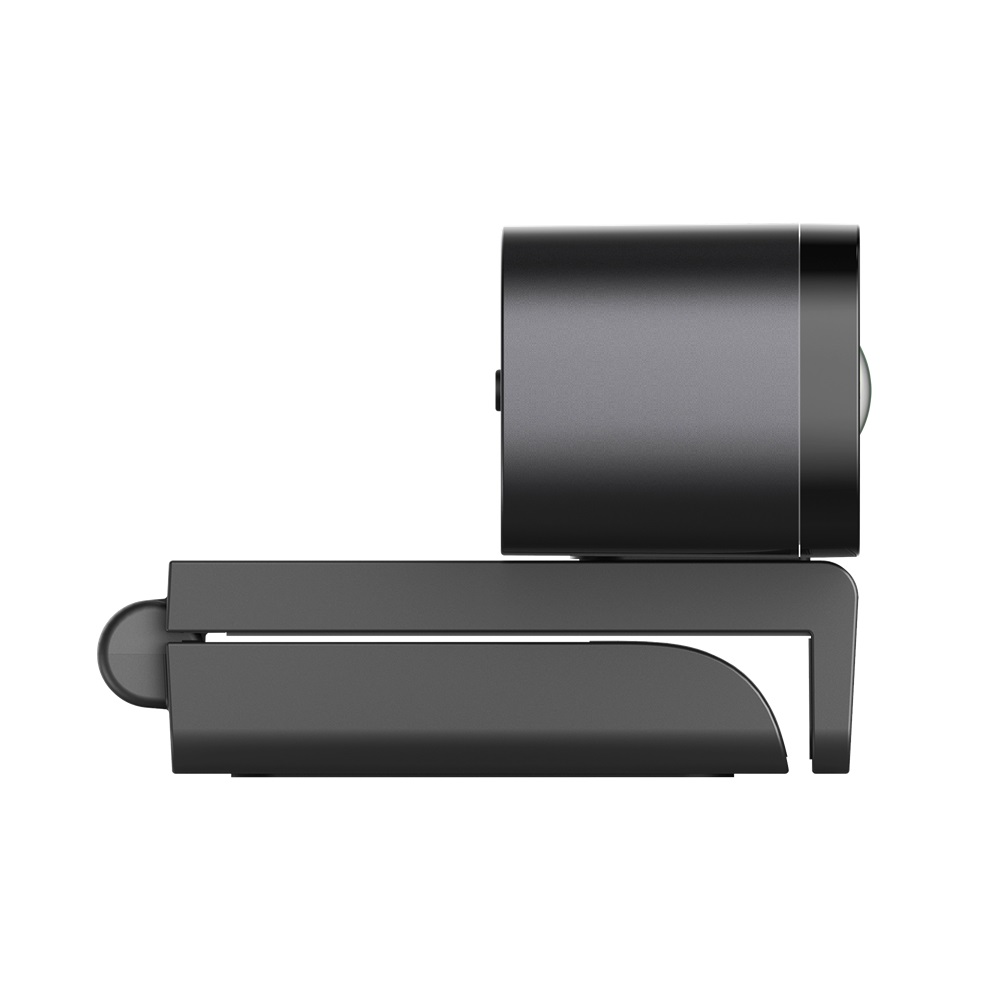

The Grandstream GUV3100 is a Full HD USB camera that enables high-quality audio and video collaboration through laptops, computers and more. This webcam supports 1080p Full HD real-time video through a 2 megapixel CMOS image sensor and includes 2 built-in omni-directional microphones with 1+ meter voice pickup range for clear communications.

Grandstream GUV3100 Key Features

• Supports 1080p Full HD video at 30fps
• USB 2.0 port offers plugand- play setup, no software download/installation needed
• 2 built-in microphones offer a 1+ meter voice pickup range
• Compatible with all major third-party platforms, apps and softphones
• Adjustable video settings include brightness, resolution, saturation, contrast, low-light and more

Grandstream GUV3100 Technical Specifications

Image Sensor

• High-quality CMOS sensor

 Effective Pixels:

• 2MP, 16:9

Video Compression

• MJPEG, YUV2, H.264, H.265

Microphone

• 2 integrated omni-directional microphones with over 1-meter voice pickup distance,
  supports noise suppression and cancellation

USB

• USB2.0 (for power and firmware upgrade)

Compatibility

• Compatible with all major third-party communication platforms, applications and softphones, including Microsoft Teams, Zoom, Cisco WebEx, Grandstream’s IPVideoTalk Meetings, Grandstream Wave, Counterpath’s Bria softphone, 3CX softphone, etc.

Angle of View

• 88°(D) / 80°(H) / 50°(V)

 Focal Length

• f=3.24mm

Video Resolution

•  960×540 / 320×180 / 432×240 / 640×360 / 800×448 / 800×600 / 864×480 / 960×720 / 1024×576 /1280×720 / 1600×896 / 1920×1080 / 272×144 / 368×208 / 384×216 / 480×272 / 624×352 / 912×512 /424×240 / 640×480 / 320×240 / 160×120 / P30

Maximum Resolution

• 1920×1080

Maximum FPS

• 30fps

Minimum Illumination

• 0.5Lux (F1.8, AGC ON)

Lens Focus

• Fixed

Suggested Distance Range for Lens Focus

• 0.3m – 1.7m (1feet – 5.6 feet)

Backlight contrast

• On / Off

Anti-flicker

• Manual

 Video Adjustments

• Brightness / Resolution / Saturation / Contrast / Gain / Low-Light-Compensation adjustable /Exposure / White Balance

SNR

• >50dB

Input Voltage

• 5V

 Input Current

• 500mA (max)

Power

•  2.5W (max)

Temperature

• Storage Temperature: -10°C ~ +60°C
  Operating Temperature: -10°C ~ +50°C

Humidity

• Storage Humidity: 20% ~ 95%
• Operating Humidity: 20% ~ 80%

Cable Length

•  1.8 meters

Dimensions

• 102mm x 46mm x 30mm

Weight

• 0.15kg

Compliance

• FCC, CE, RCM, IC
