Description

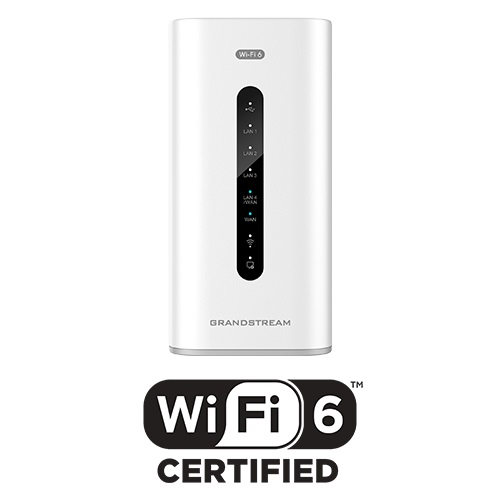

GWN7062 Router

 The GWN7062 is a secure dual-band router powered by the latest Wi-Fi 6 (802.11ax) technology. Ideal for small offices, home offices and remote workers, the GWN7062 provides dual-band 2×2 MU-MIMO with DL/UL OFDMA technology and supports wireless Mesh networking and wired AP connections. It features a powerful 64-bit 1.2GHz quad-core processor to provide Wi-Fi speeds up to 1.77 Gbps with up to 256 wireless devices, allowing the GWN7062 to power smart office and home automation, smooth 4K Ultra HD streaming, web meetings, video conferences, online gaming and more. It supports VPN to allow remote employees to securely connect to the corporate network from home or branch offices. The GWN7062 also provides enterprise-grade security features to ensure secure Wi-Fi and VPN access, including unique security certificates and random default passwords. By supporting triple-play, different services such as Internet, IPTV and VoIP can be assigned with different VLANs and priorities. To ensure easy installation and management, the GWN7062 includes a built-in controller embedded within the product’s web user interface. It is also supported by GWN.
Cloud (coming soon), Grandstream’s free cloud Wi-Fi management platform. By combining accelerated Wi-Fi speeds, mesh networking and wired AP connections with advanced features including VPN, and beamforming technology the GWN7062 is the ideal router for a growing home and business network.

Grandstream GWN7062 Technical Specifications

WiFi Standards

• IEEE 802.11 a/b/g/n/ac/ax

Antennas

•  4 individual internal antennas, 2 per band
• 2.4GHz: maximum gain 4.5dBi
• 5 GHz: maximum gain 5dBi

WiFi Data Rates

• 5G:
  – IEEE 802.11ax: 7.3 Mbps to 1201 Mbps
  – IEEE 802.11ac: 6.5 Mbps to 867 Mbps
  – IEEE 802.11n: 6.5 Mbps to 300 Mbps
  – IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 2.4G:
  – IEEE 802.11ax: 7.3 Mbps to 573.5 Mbps
  – IEEE 802.11n: 6.5 Mbps to 300 Mbps
  – IEEE 802.11b: 1, 2, 5.5, 11 Mbps
  – IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
  *Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network

Frequency Bands

• 2.4GHz radio: 2400 – 2483.5 MHz(2412-2472MHz are channel central frequency range; 2400-2483.5MHz is Frequency band)
• 5GHz radio: 5150 – 5850 MHz

Channel Bandwidth

• 2.4G: 20 and 40 MHz
• 5G: 20, 40 and 80 MHz

WiFi and System Security

• WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device

MIMO

•  2×2:2 2.4GHz (MIMO)
• 2×2:2 5GHz (MU-MIMO)

Maximum TX Power

• 2.4G: 27dBm
• 5G: 26dBm
  *Maximum power varies by country, frequency band and MCS rate

Receiver Sensitivity

• 5G
  – 802.11a: -93dBm @6Mbps, -75dBm @54Mbps;
  – 802.11n: 20MHz: -73dBm @MCS7; 802.11n 40MHz: -70dBm @MCS7
  – 802.11ac 20MHz: -70dBm@MCS8; 802.11ac: HT40:- 66dBm @MCS9; 802.11ac 80MHz: -62dBm @MCS9;
  – 802.11ax 20MHz: -64dBm @ MCS11; 802.11ax 40MHz: -61dBm @MCS11;802.11ax 80MHz: -58dBm @MCS11
• 2.4G
  – 802.11b: -97dBm@1Mbps, -89dBm@11Mbps;
  – 802.11g: -93dBm @6Mbps, -75dBm@54Mbps;
  – 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz: -70dBm @MCS7;
  – 802.11ax 20MHz: -64dBm @ MCS11; 802.11ax 40MHz: -63dBm @MCS11

 Memory and NAT Sessions

•  512MB RAM, 120K NAT sessions

 NAT Routing & IPSec VPN Performance

•  2 Gbps NAT routing and 850Mbps IPSec VPN performance

SSIDs

• 32 SSIDs total, 16 per radio (2.4GHz & 5GHz)

Concurrent Wireless clients

•  Up to 256 wireless clients

Network Interfaces

• 1x Gigabit Ethernet WAN port, 1x Gigabit Ethernet port (WAN/LAN configurable), and 3x Gigabit Ethernet LAN ports

Auxiliary Ports

• 1x USB 3.0 port, 1x Reset button, 1x SYNC button

Mounting

• Desktop

LEDs

• 1 tri-color LED and 7 single-color LEDs for device tracking and status indication

Network Protocols

• IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM

Firewall

• DDNS, Port Forwarding, DMZ, UPnP, Anti-DoS, traffic rules, NAT, ALG

VPN

• IPsec VPN Client-to-Site /Site-to-Site
• PPTP VPN Server /Client
• L2TP Client-to-Site
• OpenVPN® Server/Client
• WireGuard®
• IPSec Encryption: DES, 3DES, AES
• IPSec Authentication: MD5, SHA-1, SHA2-256
• IPSec Key Exchange: Main/Aggressive Mode, Pre-shared Key, DH Groups 1/2/5/14
• IPSec Protocols: ESP
• IPSecNAT Traversal
• OpenVPN® Encryption: AES, DES
• OpenVPN® Authentication: MD5, SHA-1, SHA2-256, SHA2-384,SHA2-512
• OpenVPN® Certificate: RSA
• PPTP Encrpytion: MPPE 40-bit, 128-bit,IPSec
• PPTP/L2TP Authentication: MS-CHAPv1/2

Max Concurrent VPN Tunnels

• Up to 100 Tunnels

Network Management

• GWN7062 embedded controller can manage itself and up to 30 APs
• GWN.Cloud offers a free cloud management platform for unlimited GWN7062 routers and GWN APs
• SSH for CLI
• TR-069
• SNMP v1/v2c/v3
• Telnet (pending)

Power and Green Energy Efficiency

• Universal power adaptor included:
• Input 100-240VAC 50-60Hz
• Output: 12VDC 1.5A (18W);

Environmental

• Operation: 0°Cto 50°C
• Storage: -30°C to 60°C
• Humidity: 10% to 90% Non-condensing

Physical

• Unit Dimension: 95mm(L)x95mm(W)x193mm(H);
• Unit Weight: 690g
• Entire Package Dimension: 286mm(L)x126.5mm(W)x105mm(H);
• Entire Package Weight: 960g

Package Content

• GWN7062 Router, Universal Power Supply, Network Cable, Quick Installation Guide

Compliance

• FCC, CE, RCM, IC, UKCA
