Description

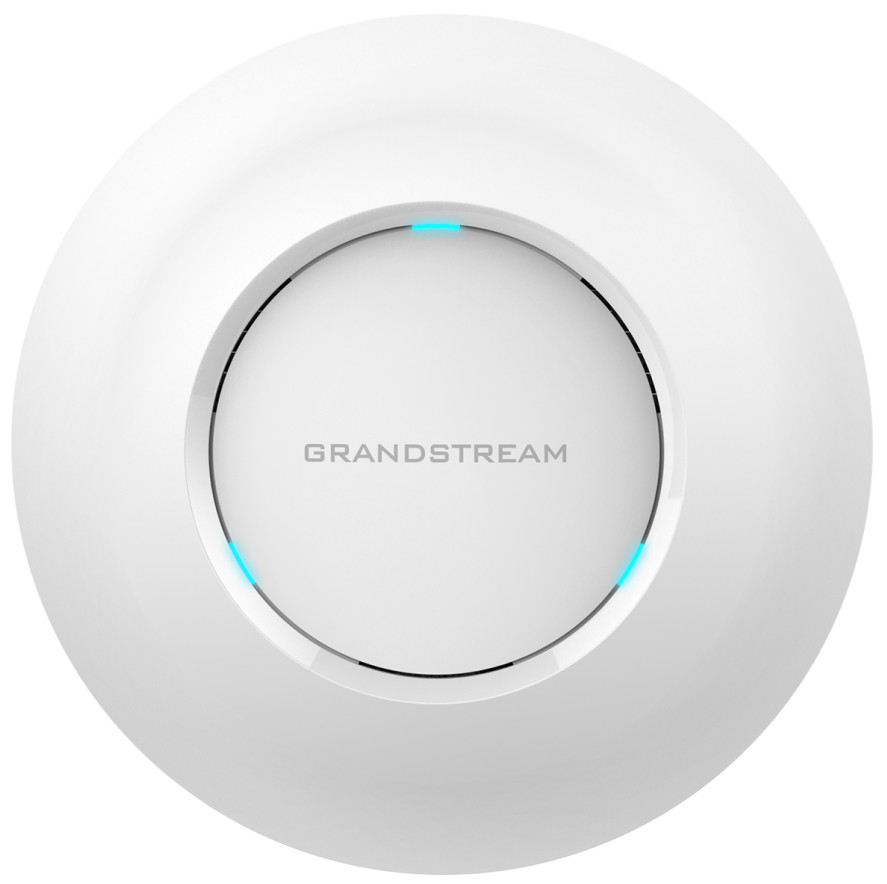

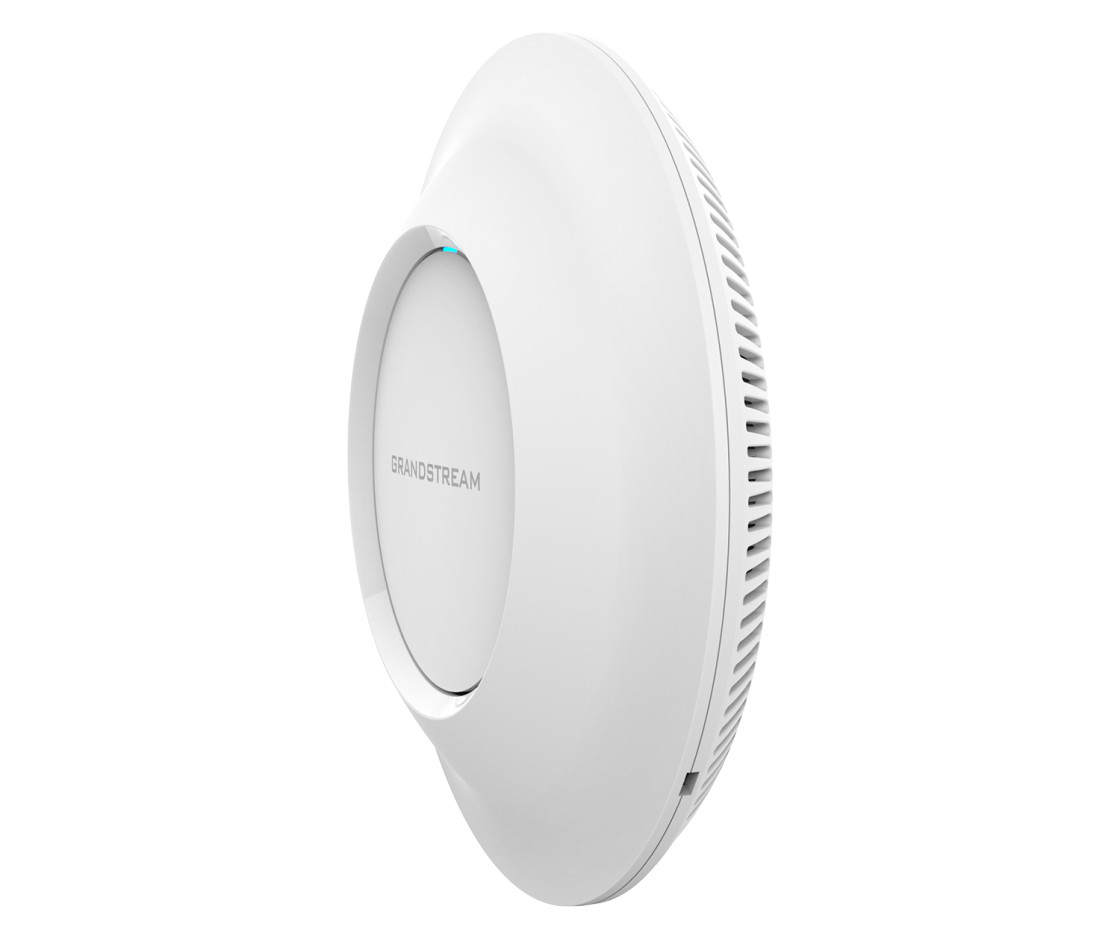

The GWN7610 is a high-performance 802.11ac wireless access point for small to medium sized businesses, multiple floor offices, commercial locations and branch offices. It offers dual-band 3×3:3 MIMO technology
and a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range. To ensure easy installation and management, the GWN7610 uses a controller-less distributed network
management design in which the controller is embedded within the product’s web user interface. This allows each access point to manage a network of up to 50 GWN7610s independently without needing
seperate controller hardware/software and without a single point-of-failure. This wireless access point can be paired with any third party routers as well as Grandstream GWN series routers. With support for
advanced QoS, low-latency real-time applications, 250+ client devices per AP and dual Gigabit network ports with PoE/PoE+, the GWN7610 is an ideal wireless access point for large and small wireless network
deployments.

Grandstream GWN7610 Key Features

• 1.75Gbps wireless throughput and 2x Gigabit wireline ports
• Dual-band 3×3:3 MIMO technology
• Self power adaptation upon auto detection of PoE/PoE+
• Support more than 250+ Wi-Fi client devices
• Up to 175-meter coverage range
• Advanced QoS to ensure real-time performance of low-latency applications
• Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
• Embedded controller can manage up to 50 local GWN series APs; GWN.Cloud offers unlimited AP management; GWN Manager offers premise-based software controller

Grandstream GWN7610 Technical Specifications

WiFi Standards

• IEEE 802.11a/b/g/n/ac (Wave-2)

Antennas

• 3x 2.4 GHz, gain 3 dBi, internal antenna
• 3x 5 GHz, gain 3 dBi, internal antenna

WiFi Data Rates

• IEEE 802.11ac: 6.5 Mbps to 1300 Mbps
• IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• IEEE 802.11n: 6.5 Mbps to 450 Mbps
• IEEE 802.11b: 1, 2, 5.5, 11 Mbps
• IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
  *Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network

Frequency Bands

• 2.4GHz radio : 2.400 – 2.4835 GHz
• 5GHz radio: 5.150 – 5.250 GHz, 5.725 – 5.850 GHz (FCC, IC, RCM)

Channel Bandwidth

• 2.4G: 20 and 40 MHz
• 5G: 20,40 and 80 MHz

WiFi and System Security

• WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES), anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device

MIMO

• 3×3:3 2.4GHz, 3×3:3 5GHz

Coverage Range

• Up to 575 ft. (175 meters)
  *coverage range can vary based on the environment

Maximum TX Power

• 5G: 26dBm (FCC) / 20dBm (CE)
• 2.4G: 26dBm (FCC) / 17dBm (CE)
  *Maximum power varies by country, frequency band and MCS rate

Receiver Sensitivity

• 2.4G
  802.11b:-92dBm@11Mbps; 802.11g:-76dBm@54Mbps; 802.11n 20MHz:
  -73dBm@MCS7; 802.11n 40MHz:-70dBm@MCS7
• 5G
  802.11a:-94dBm@6Mbps; 801.11a:-77dBm@54Mbps; 802.11ac 20MHz:
  -69dBm@MCS8; 802.11ac HT40:-65dBm@MCS9; 802.11ac 80MHz
  * Receiver sensitivity varies by frequency band, channel width and MCS rate

SSIDs

• 32 SSIDs total, 16 per radio (2.4ghz and 5 ghz)

Concurrent clients

• 250+

Network Interfaces

• 2 x autosensing 10/100/1000 Base-T Ethernet Ports

Auxiliary Ports

• 1x USB 2.0 port, 1x Reset Pinhole, 1x Kensington lock

Mounting

• Indoor wall mount or ceiling mount, kits included

LEDs

• 3 x tri-color LED for device tracking and status indication

Network Protocols

• IPv4,  802.1Q, 802.1p, 802.1x, 802.11e/WMM

QoS

• 802.11e/WMM, VLAN, TOS

Network Management

• Embedded controller can manage up to 50 local GWN APs
• GWN.Cloud offers a free cloud management platform for unlimited GWN APs
• GWN Manager offers premise-based software controller for up to 3,000 GWN APs

Auto Power Saving

• Self power adaptation upon auto detection of PoE or PoE+

Power and Green Energy Efficiency

• DC Input: 24VDC/1A
• Power over Ethernet 802.3af/802.3at compliant
• Maximum Power Consumption:13.8W

Environmental

• Operation: 0°C to 50°C
• Storage: -10°C to 60°C
• Humidity: 10% to 90% Non-condensing

Physical

• Unit Dimension: 205.3 x 205.3 x 45.9mm; Unit Weight: 540g
• Unit + Mounting Kits Dimension : 205.3 x 205.3 x 50.9mm; Unit + Mounting Kits Weight : 600g
• Entire Package Dimension: 258 x 247 x 86mm; Entire Package Weight: 900g

Package Content

• GWN7610 802.11ac Wireless AP, Mounting Kits, Quick Start Guide

Compliance

• FCC, CE, RCM, IC
