Description

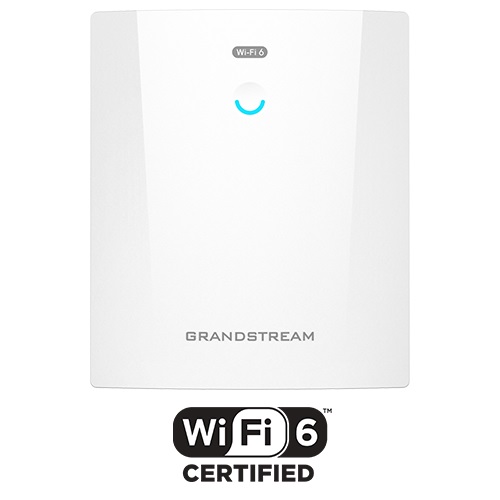

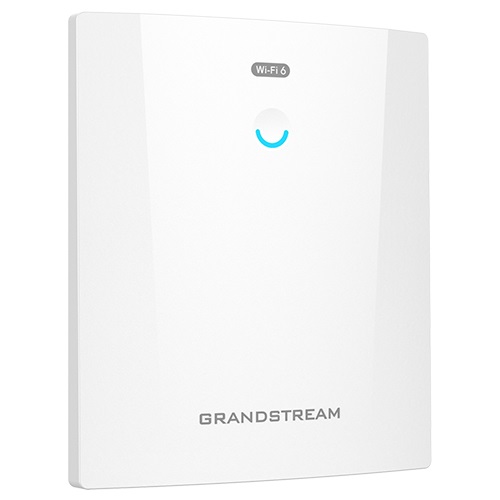

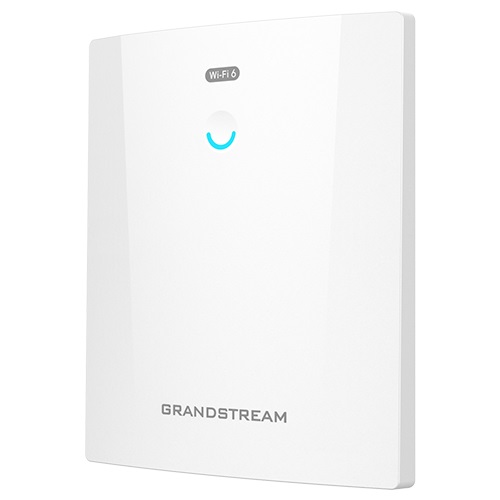

The GWN7660ELR is an enterprise-grade long range Wi-Fi 6 access point that allows businesses to build next-generation Wi-Fi networks for high-density environments. It supports weatherproof casing and heat resistant technology, dualband 2×2:2 MIMO with OFDMA technology and a sophisticated antenna design for maximum network throughput that supports 256 clients and an expanded 300-meter coverage range. It also provides IP67 weatherproof and dust-proof
ability, as well as -30 to 60°C operating temperature, this ensures that the Wi-Fi 6 access point can operate properly in difficult weather conditions.To ensure easy installation and management, the GWN7660ELR includes a built-in controller
embedded within the product’s web user interface. It is also supported by GWN.Cloud and GWN Manager, Grandstream’s free cloud and on-premise Wi-Fi management platform. The GWN7660ELR is the ideal Wi-Fi AP for voice-over-Wi-Fi
deployment and offers a seamless connection with Grandstream’s Wi-Fi voice and video IP phones. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals, Bluetooth® Low Energy (BLE) 5.2, a
gigabit Ethernet port with PoE/PoE+ and a 2.5 Gigabit SFP port. The GWN7660ELR is an ideal outdoor Wi-Fi access point for enterprises, multiple floor offices, warehouses, hospitals, schools, and more.

Grandstream GWN7660ELR Key Features

• 3 Gbps aggregate wireless throughput, 1 Gbps RJ45 and 2.5 Gbps SFP wireline ports
• Dual-band 2×2:2 MIMO with OFDMA technology
• Self power adaptation upon auto detection of PoE/PoE+
• Supports 256 concurrent Wi-Fi client devices
• Up to 300-meter coverage range
• Advanced QoS to ensure real-time performancem of low-latency applications
• Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
• Flexibility of 5 internal antennas
• Embedded controller manages up to 50 local GWN APs; GWN.Cloud offers unlimited AP management,
  & GWN Manager offers on-premise software AP management

Grandstream GWN7660ELR Technical Specifications

WiFi Standards

• IEEE 802.11 a/b/g/n/ac/ax

Antennas

• 5 individual internal antennas
• 2.4GHz x 2 , gain 5.5 dBi
• 5 GHz x 2, gain 6.0 dBi
• BT gain 4.5 dBi

WiFi Data Rates

• 5G:
  – IEEE 802.11ax: 7.3 Mbps to 2403 Mbps;
  – IEEE 802.11ac: 6.5 Mbps to 1734 Mbps;
  – IEEE 802.11n: 6.5Mbps to 300Mbps;
  – IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 2.4G:
  – IEEE 802.11ax: 7.3 Mbps to 573.5 Mbps;
  – IEEE 802.11n: 6.5Mbps to 300Mbps;
  – IEEE 802.11b: 1, 2, 5.5, 11 Mbps;
  – IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
  *Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network

Frequency Bands

• 2.4GHz radio: 2400-2483.5MHz
• 5GHz radio: 5150-5850MHz
  *Not all frequency bands can be used in all regions.

Channel Bandwidth

• 2.4G: 20 and 40 MHz
• 5G: 20,40,80 and 160MHz

WiFi and System Security

• WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/
  control lockdown via digital signatures, unique security certificate and random default password per device

MIMO

• 2×2:2 2.4GHz
• 2×2:2 5GHz

Coverage Range

• Up to 300 meters
  *coverage range can vary based on the environment

Maximum TX Power

• 5G: 26dBm
• 2.4G: 27dBm
  *Maximum power varies by country, frequency band and MCS rate

Receiver Sensitivity

• 2.4G
  – 802.11b: -96dBm @1Mbps, -88dBm @11Mbps;
  – 802.11g: -93dBm @6Mbps, -75dBm @54Mbps;
  – 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7;- 802.11ax 20MHz: -60dBm @MCS11; 802.11ax 40MHz: -58dBm @MCS11
• 5G
  – 802.11a: -90dBm @6Mbps, -72dBm @54Mbps;
  – 802.11n: 20MHz: -71dBm @MCS7; 802.11n 40MHz: -68dBm @MCS7
  – 802.11ac 20MHz: -65dBm @MCS8; 802.11ac: 40MHz: -61dBm @MCS9; 802.11ac 80MHz: -57dBm @MCS9;
  – 802.11ac 160MHz: -55dBm @MCS9;
  – 802.11ax 20MHz: -58dBm @MCS11; 802.11ax 40MHz: -56dBm @MCS11; 802.11ax 80MHz: -54dBm @MCS11;
  – 802.11ax 160MHz: -51dBm @MCS11;

SSIDs

• 32 SSIDs total, 16 per radio (2.4ghz and 5 ghz)

Concurrent clients

• 256

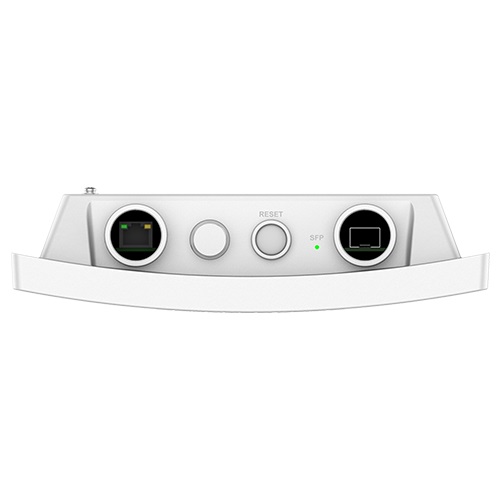

Network Interfaces

• 1x 1G RJ45 Port and 1x 2.5G SFP Port

Bluetooth

• BLE 5.2

Auxiliary Ports

• 1x Reset Button

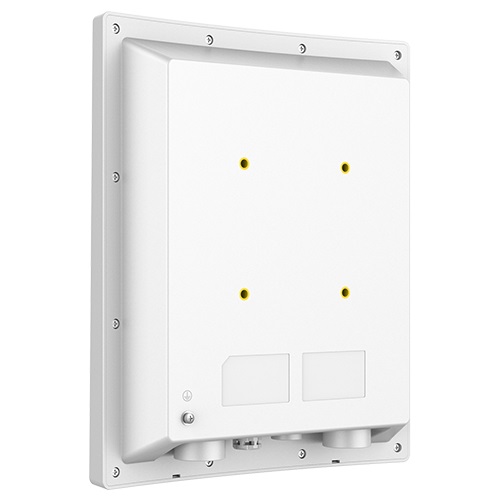

Mounting

• Wall mount or pole mount, kits included (The mounting kits can be adjusted and rotated by 60°)

LEDs

• 1 tri-color LED for device tracking and status indication; 1 single-color LED for SFP

Network Protocols

• IPv4/IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM

QoS

• 802.11e/WMM, VLAN, TOS

Network Management

• Embedded controller can manage up to 50 local GWN APs
• GWN.Cloud offers a free cloud management platform for unlimited GWN APs
• GWN.Manager offers premise-based software controller for up to 3,000 GWN APs

Power and Green Energy Efficiency

• PoE 802.3af/ 802.3at
• Max Consumption: 13W

Environmental

• Operation:-30°Cto 60°C
• Storage: -30°C to 70°C
• Humidity: 5% to 95% Non-condensing

Physical

• Unit Dimension: 270mm x 230mm x 57mm
• Unit (including brackets): 1kg
• Entire Package Dimension: 439mm x 329mm x 137mm
• Entire Package Weight: 2.4kg

Package Content

• GWN7660ELR AP, Mounting Kits, Quick Installation Guide

Weatherproof Grade

• IP67-level weatherproof capability

Compliance

• FCC, CE, RCM, IC
