Description

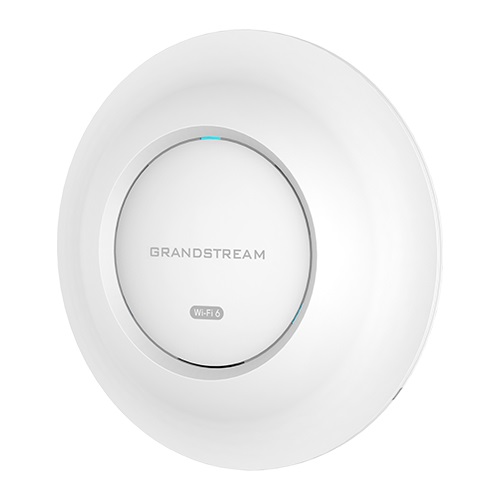

GWN7664 In-Wall Wi-Fi 6 Access Point

 The GWN7664 is a powerful, enterprise-grade 802.11ax Wi-Fi 6 access point, ideal for small-to-medium sized businesses, multiple floor buildings, residential settings and commercial locations. It offers dual-band 4×4:4 MUMIMO with DL/UL OFDMA technology and a sophisticated internal antenna design for stronger anti-interference, more stable connection, maximum network throughput and expanded Wi-Fi coverage range. The GWN7664 is supported by GWN.
Cloud and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform that and makes managing your network or several networks across multiple locations easier than ever before. It also uses a controller-less network management architecture in which the controller is embedded within the product’s web user interface for easy administration of locally deployed Wi-Fi Aps. The GWN7664 is the ideal Wi-Fi AP for voice-over-Wi-Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi capable IP phones. With support for advanced QoS, low latency real-time applications, mesh networks, captive portals, 750+ concurrent clients and dual Gigabit network ports with PoE/PoE+, the GWN7664 is an ideal Wi-Fi access point for business-grade wireless network deployments with
medium-to-high user density.

Grandstream GWN7664 Technical Specifications

WiFi Standards

•  IEEE 802.11 a/b/g/n/ac/ax

Antennas

• 8 individual internal antennas, 4 per band
• 2.4GHz, gain 3dBi
• 5 GHz, gain 4dBi

WiFi Data Rates

• 5G:
  – IEEE 802.11ax: 8 Mbps to 2402 Mbps
  – IEEE 802.11ac: 6.5 Mbps to 1733 Mbps
  – IEEE 802.11n: 6.5Mbps to 600Mbps
  – IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 2.4G:
  – IEEE 802.11ax: 8 Mbps to 1147 Mbps
  – IEEE 802.11n: 6.5Mbps to 600Mbps
  – IEEE 802.11b: 1, 2, 5.5, 11 Mbps
  – IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
  *Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network

Frequency Bands

• 2.4GHz Radio: 2412 – 2484 MHz
• 5GHz Radio: 5180 – 5825 MHz
  *Not all frequency bands can be used in all regions.

Channel Bandwidth

• 2.4G: 20 and 40 MHz (x4)
• 5G: 20, 40 and 80 MHz (x4)

WiFi and System Security

• WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device

MIMO

• 4×4:4 2.4GHz
• 4×4:4 5GHz

Coverage Range

• Up to 175 meters
  *coverage range can vary based on the environment

Maximum TX Power

• 5G: 25 dBm
• 2.4G: 26dBm
  *Maximum power varies by country, frequency band and MCS rate

Receiver Sensitivity

• 5G
  – 802.11a: -95dBm @6Mbps, -77dBm @54Mbps;
  – 802.11n 20MHz: -74dBm @MCS7; 802.11n 40MHz:-71dBm @MCS7
  – 802.11ac 20MHz: -70dBm@MCS8; 802.11ac: HT40:- 66dBm @MCS9; 802.11ac 80MHz: -62dBm @MCS9;
  – 802.11ax 20MHz: -64dBm @ MCS11; 802.11ax 40MHz: -62dBm @MCS11;802.11ax 80MHz: -59dBm @MCS11
• 2.4G
  – 802.11b: -99dBm@1Mbps, -91dBm@11Mbps;
  – 802.11g: -94dBm @6Mbps, -78dBm@54Mbps;
  – 802.11n 20MHz: -75dBm @MCS7; 802.11n 40MHz:-71dBm @MCS7;
  – 802.11ax 20MHz: -64dBm @ MCS11; 802.11ax 40MHz: -63dBm @MCS11

SSIDs

• 32 SSIDs total, 16 per radio (2.4ghz and 5 ghz)

Concurrent clients

• 750+

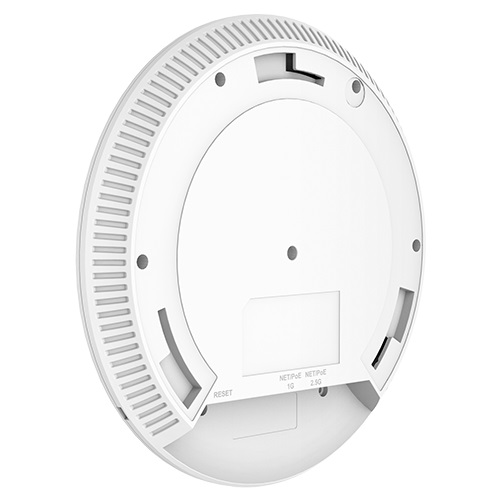

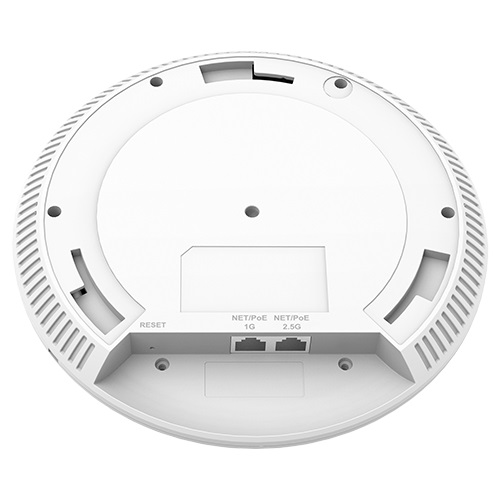

Network Interfaces

•  1x 1G Port and 1x 2.5G Port, support 3.5Gbps aggregate wire throughput

Auxiliary Ports

• 1x Reset Pinhole,  1x Kensington lock

Mounting

• Indoor wall mount or ceiling mount, kits included

LEDs

•  1 tri-color LEDs for device tracking and status indication

Network Protocols

• IPv4/IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM

QoS

• 802.11e/WMM, VLAN, TOS

Network Management

• Embedded controller can manage up to 50 local GWN APs
• GWN.Cloud offers a free cloud management platform for unlimited GWN APs
• GWN Manager offers premise-based software controller for up to 3,000 GWN APs

Power and Green Energy Efficiency

• PoE 802.3af/ 802.3at;
• Maximum Power Consumption: 17W

Environmenta

• Operation: 0°Cto 50°C
• Storage: -10°C to 60°C
• Humidity: 10% to 95% Non-condensing

Physical

• Unit Dimension: 205.3mmx205.3mmx45.9mm; Unit Weight: 0.714Kg
• Entire Package Dimension: 258mmx247mmx86mm; Entire Package Weight: 1.06Kg

Package Content

• GWN7664 802.11ax Wireless AP, Mounting Kits, Quick Start Guide

Compliance

• FCC, CE, RCM, IC
