Description

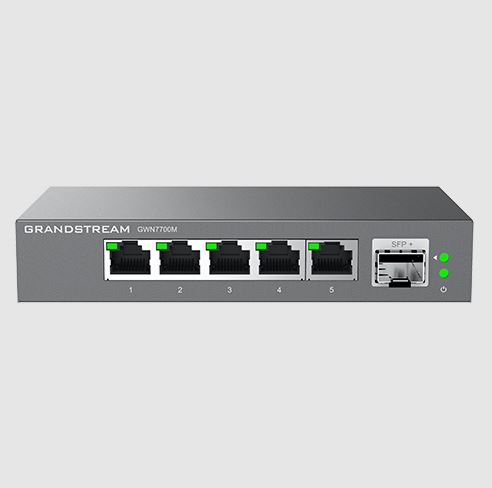

GWN7700M Unmanaged 2.5G Switch

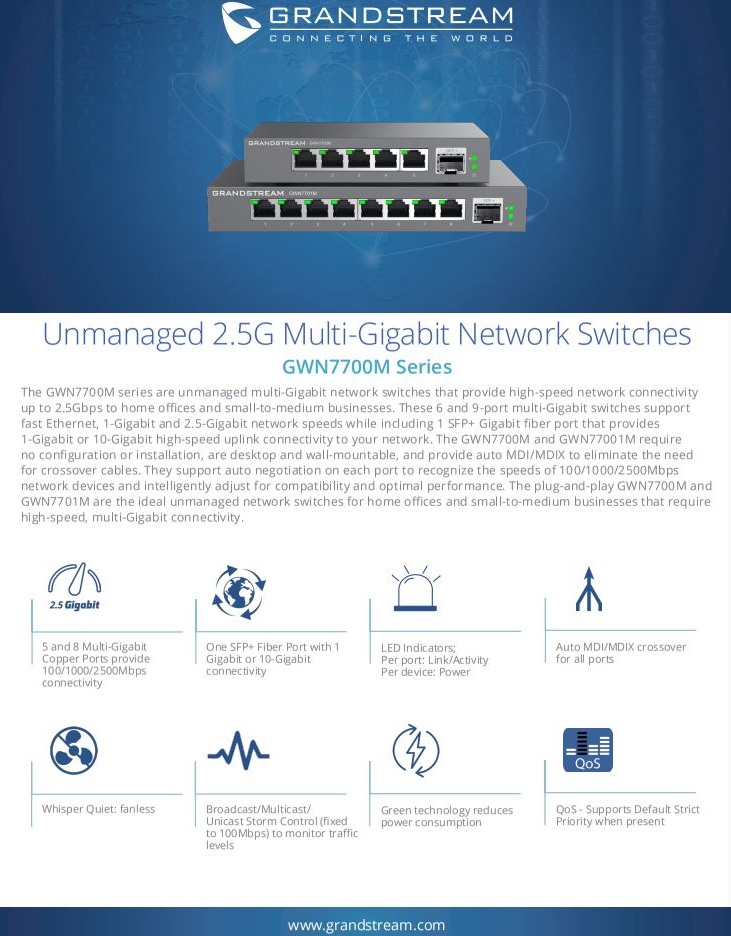

The GWN7700M series are 5 port unmanaged multi-Gigabit network switches that provide high-speed network connectivity up to 2.5Gbps to home offices and small-to-medium businesses

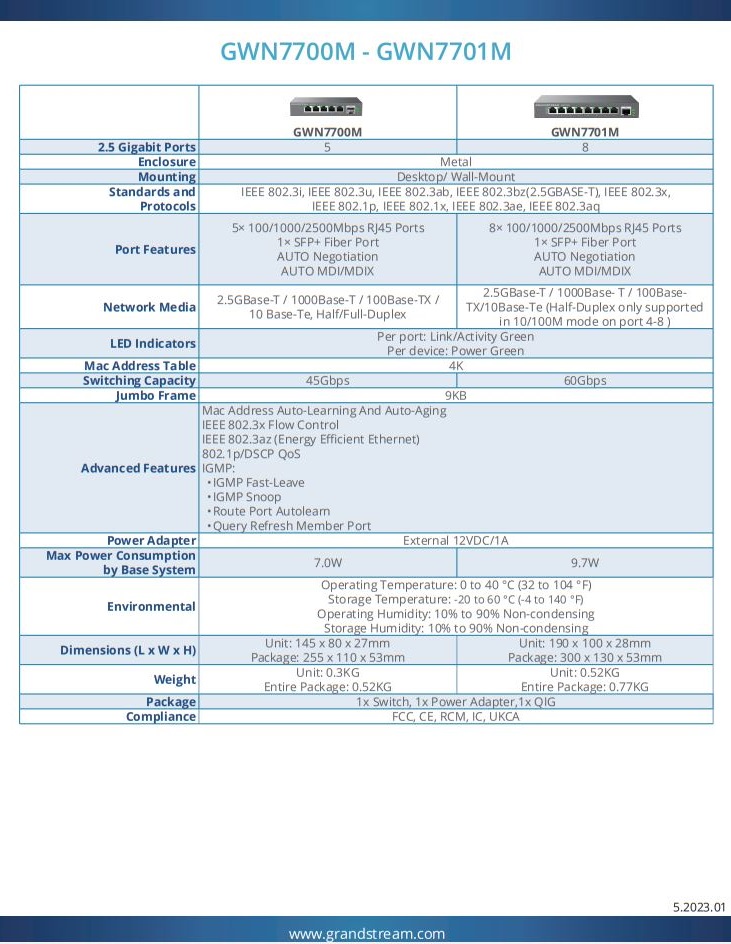

Grandstream GWN7700M Technical Specifications
Gigabit Ports
- 5
PoE Ports
- N/A
Enclosure
- Metal
Mounting
- Desktop/ Wall-Mount
Standards and Protocols
- IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz(2.5GBASE-T), IEEE 802.3x, IEEE 802.1p, IEEE
802.1x, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3af, IEEE 802.3at
Port Features
- 5× 100/1000/2500Mbps RJ45 Ports
- 1× SFP+ Fiber Port
- AUTO Negotiation
- AUTO MDI/MDIX
Network Media
- 2.5GBase-T / 1000Base-T / 100Base-TX / 10 Base-Te, Half/Full-Duplex
PoE Ports
- N/A
LED Indicators
- Per port: Link/Activity Green
- Per device: Power Green
- GWN7700MP Port1~4: PoE output – Yellow
Mac Address Table
- 4K
Switching Capacity
- 45Gbps
Jumbo Frame
- 9KB
Advanced Features
- Mac Address Auto-Learning And Auto-Aging
- IEEE 802.3x Flow Control
- IEEE 802.3az (Energy Efficient Ethernet)
- 802.1p/DSCP QoS
- IGMP:
• IGMP Fast-Leave
• IGMP Snoop
• Route Port Autolearn
• Query Refresh Member Port
Power Adapter
- External 12VDC/1A
Max Power Consumption by Base System
- 7.0W
Environmental
- Operating Temperature: 0 to 40 °C (32 to 104 °F)
- Storage Temperature: -20 to 60 °C (-4 to 140 °F)
- Operating Humidity: 10% to 90% Non-condensing
- Storage Humidity: 10% to 90% Non-condensing
Dimensions (L x W x H)
- Unit: 145 x 80 x 27mm
- Package: 255 x 110 x 53mm
Weight
- Unit Weight: 0.3KG
- Entire Package: 0.52KG
Package
- 1x Switch, 1x Power Adapter,1x QIG
Compliance
- FCC, CE, RCM, IC
