Description

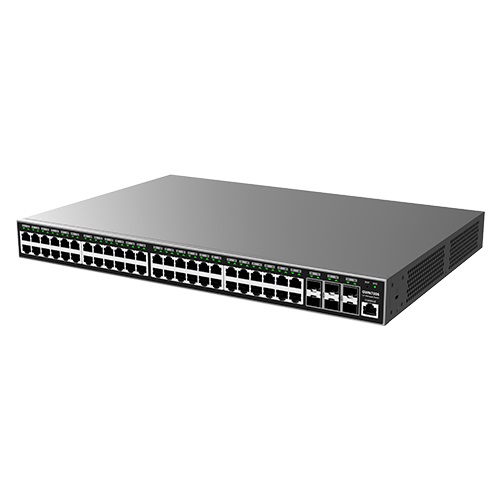

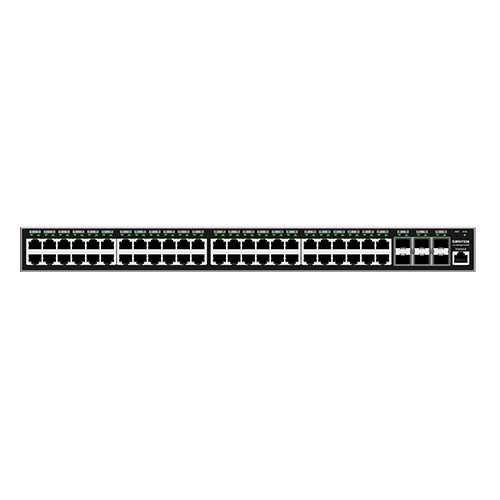

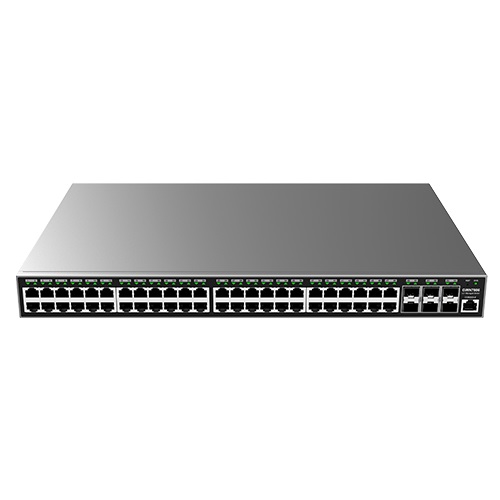

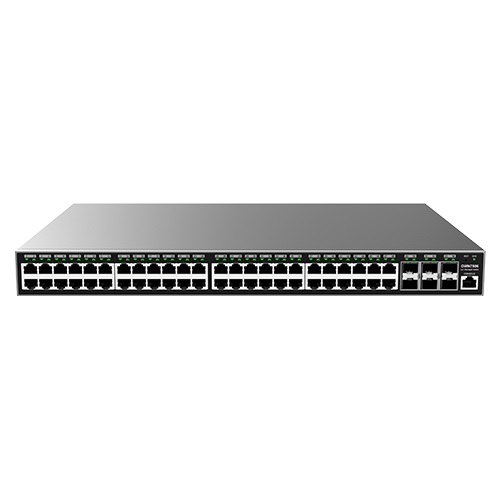

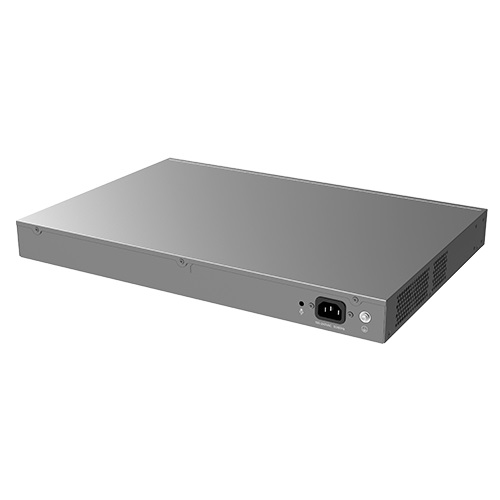

GWN7806 Managed Switch

The GWN7806(P) is layer 2+ stackable managed network switch that allows small-to-medium enterprises to build scalable, secure, high performance and smart business networks that are fully manageable. It supports advanced VLAN for flexible and sophisticated traffic segmentation, advanced QoS for prioritization of network traffic, IGMP/MLD Snooping for network performance optimization, and comprehensive security capabilities against potential attacks. The GWN7806P provides smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints. GWN7806(P) is easy to deploy and manage, including managed by the local Web user interface of the GWN7806(P) switch and CLI, the command-line interface. The switch is also supported by GWN Series Routers, GDMS Networking and GWN Manager; Grandstream’s cloud and on-premise network management platform. The GWN7806(P) is the best value enterprise-grade managed switch for small-to-medium businesses.



Grandstream GWN7806 Technical Specifications

 Network Protocol

• IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3AB, IEEE 802.1p, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x

PoE Standards

• N/A

Gigabit Ethernet Ports

• 48

 10Gigabit SFP+ Ports

• 6
  Note: Support DAC cable, and must be ≤ 5m

 Maximum no. of Supported Modules

• SM-10G: 6
• MM-10G: 6
• RJ45-10G: 3
  Note: RJ45-10G modules must be interval inserted

Console

• 1

# of PoE Ports

• N/A

Integrated Power Supply

• 60W

Max Output Power per PoE Port

•  N/A

 Max Total PoE Output Power

• N/A

 PoE Standards

• N/A

 Surge Protection

• ± 6KV CM and DM for power
• ± 4KV CM for network ports

ESD

• ± 12KV for contact discharge

 Auxiliary Ports

• 1x Reset Pinhole

 Forwarding Mode

• Store-and-forward

 Total non-blocking throughput

• 108Gbps

 Switching Capability

• 216Gbps

Forwarding Rate

• 160.704Mpps

 Packet Buffer

•  16Mb

Network Latency

•  Avg<4µs

Switching

• 32K MAC addresses, including static, dynamic, filtering and sticky MAC address
• 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, MAC-based VLAN, protocol-based VLAN, QinQ
• Voice VLAN including auto voice VLAN, tagged OUI and untagged OUI
• 32 VLAN virtual interface with 9216 MTU
• 1K ARP/NDP
• GVRP(pending)
• 32 link aggregation
• Spanning tree, 64 instances for STP/RTSP/MSTP/PVST(+)/RPVST(+)
• ERPS(pending)

Routing

•  32(IPv4)/32(IPv6) Static routing

Multicast

• IGMP Snooping with IGMPv2 and IGMPv3, 256 IGMP Snooping groups
• MLD Snooping with MLDv1 and MLDv2, 256 MLD Snooping groups
• MVR

QoS/ACL

• Port priority
• Priority mapping
• Queue scheduling, including SP, WRR, WFQ, SP-WRR and SP-WFQ
• Traffic shaping
• Rate limit
• 4K ACL for Ethernet, IPv4 and IPv6

DHCP

• DHCP server, DHCP relay, DHCP Option 82, 60, 160 and 43

Maintenance

• CPU and memory monitoring
• Fault detection and alarm for fan
• SNMP including SNMPv1, SNMPv2c, SNMPv3
• RMON
• LLDP&LLDP-MED
• Backup and restore
• Syslog
• Diagnostics including Ping, Traceroute, Mirroring including SPAN and RSPAN, UDLD(TBD) and copper test
• Upgrade via FTPS / TFTP / HTTP / HTTPS or local upload, mass provisioning using DHCP Option / TR-069 (pending) / GDMS Networking / GWN Manager / GWN Series Routers

Security

• User hierarchical management and password protection, HTTPS, SSH, Telnet
• Identity authentication including 802.1X and MAC authentication
• AAA authentication including RADIUS, TACACS+
• Storm control
• Port isolation, port security, sticky MAC
• Filtering MAC address
• IP/IPv6 source guard, DoS attack prevention, ARP inspection
• DHCP/DHCPv6 Snooping
• Loop protection including BPDU protection, root protection and loopback protection
• Kensington Security Slot (Kensington Lock) support

Mounting

•  Desktop, Rack-Mount(rack-mounting kits included)

LED

• 1x tri-color LED for device tracking and status indication
• 54x green-color LEDs for data transferring
• 48x yellow-color LEDs for PoE powered (GWN7806P

Fan

• 3

Environmental

• Operation: 0°C to 45°C, humidity: 10% to 90% RH(Non-condensing)
• Storage: -10°C to 60°C, humidity: 10% to 90% RH(Non-condensing)

Dimensions (L x W x H)

• 440mm(L)x301mm(W)x44mm(H)

Unit Wight

• 4.0kg

Package Content

• Switch, 1x 1.2m(10A) AC Cable, 1x 25cm Ground Cable, 4x Rubber Footpads, 2x Rack-Mounting Kits, 8x Screws(PM 3*6), 1x Power
  Cord Anti-Trip, 1x Simplified Quick Installation Guide, 1x Regulatory Paper

Compliance

•  FCC, CE, RCM, IC, UKCA
