Description

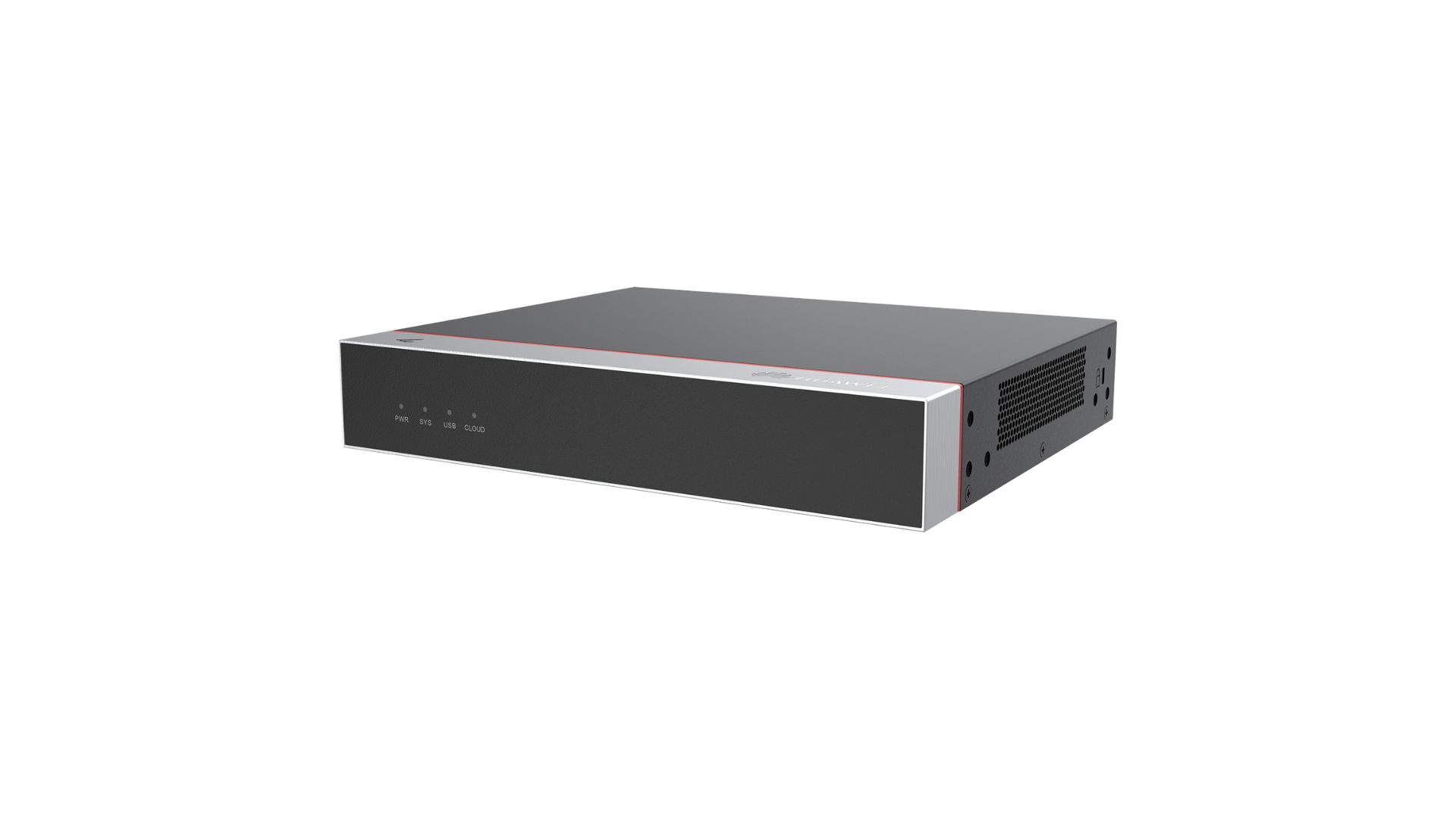

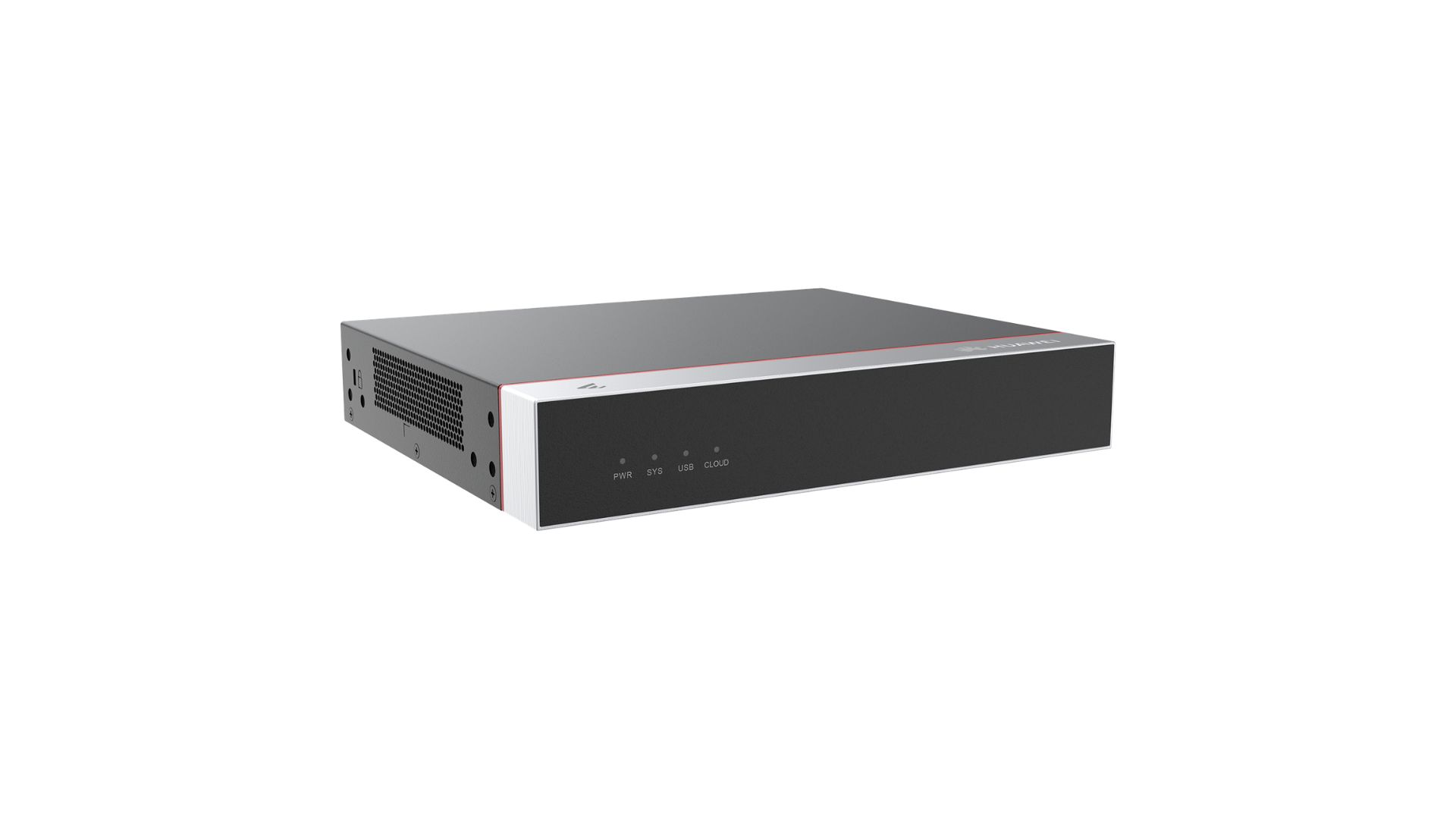

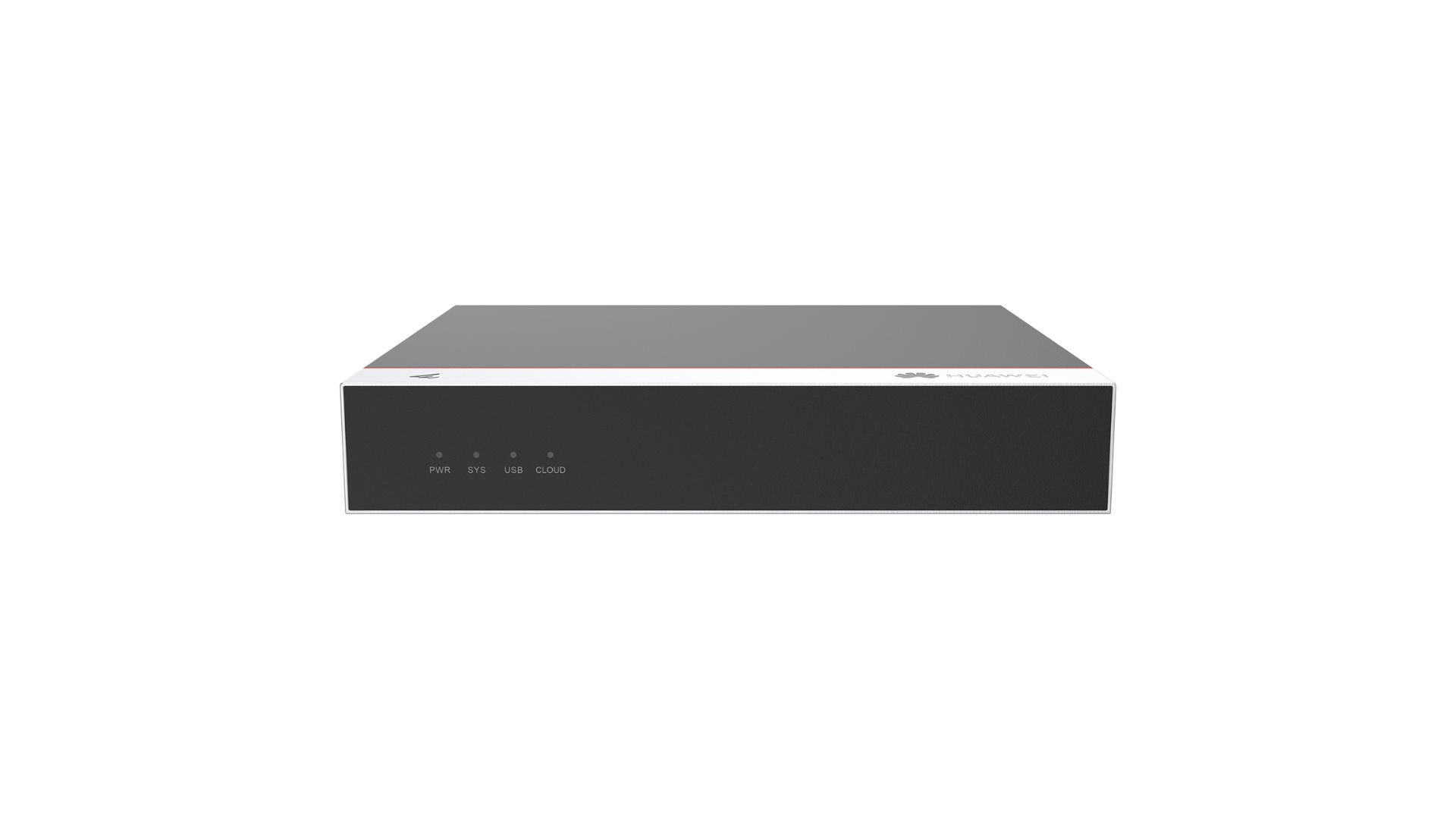

The eKitEngine AC650-512AP is a small-capacity box wireless access controller (AC) for small and medium enterprises. It can manage up to 512 access points (APs) and integrates the GE Ethernet switch function, achieving integrated access for wired and wireless users. The WLAN AC features high scalability and offers users considerable flexibility in configuring the number of managed APs. When used with Huawei’s full series 802.11ax, 802.11ac,802.11n and 802.11be APs, the eKitEngine AC650-512AP can be used to construct small and medium campus networks, enterprise office networks, wireless Metropolitan Area Networks (MANs), and hotspot coverage networks.

Product Features

• Large-Capacity And High-Performance Design
  • The eKitEngine AC650-512AP Can Manage Up To 512 APs, Meeting Requirements Of Small And Medium Campuses.
  • Provides 2 × 10GE Optical Interfaces And 10 × GE Electrical Interfaces, Supporting Up To 10 Gbit/s Forwarding Performance.
• SmartRadio For Air Interface Optimization
  • Load Balancing During Smart Roaming: The Load Balancing Algorithm Can Work During Smart Roaming For Load Balancing Detection Among APs On The Network After STA Roaming To Adjust The STA Load On Each AP, Improving Network Stability.
  • Intelligent DFA Technology: The Dynamic Frequency Assignment (DFA) Algorithm Is Used To Automatically Detect Adjacent-Channel And Co-Channel Interference, And Identify Any 2.4 GHz Redundant Radio. Through Automatic Inter-AP Negotiation, The Redundant Radio Is Automatically Switched To Another Mode (Dual-5G AP Models Support 2.4G-To-5G Switchover) Or Is Disabled To Reduce 2.4 GHz Co-Channel Interference And Increase The System Capacity.
  • Intelligent Conflict Optimization Technology: The Dynamic Enhanced Distributed Channel Access (EDCA) And Airtime Scheduling Algorithms Are Used To Schedule The Channel Occupation Time And Service Priority Of Each User. This Ensures That Each User Is Assigned Relatively Equal Time For Using Channel Resources And User Services Are Scheduled In An Orderly Manner, Improving Service Processing Efficiency And User Experience.
• Various Roles
  • The eKitEngine AC650-512AP Has A Built-In Portal/AAA Server And Can Provide Portal/802.1X Authentication For Users, Reducing Customer Investment.
• Flexible Networking
  • The WLAN AC Can Be Deployed In Inline, Bypass, Bridge, And Mesh Network Modes, And Supports Both Centralized And Local Forwarding.
  • The WLAN AC And APs Can Be Connected Across A Layer 2 Or Layer 3 Network. In Addition, NAT Can Be Deployed When APs Are Deployed On The Private Network And The WLAN AC Is Deployed On The Public Network.
  • The WLAN AC Is Compatible With Huawei Full-Series 802.11n, 802.11ac, 802.11ax, And 802.11be APs And Supports Hybrid Networking Of 802.11n, 802.11ac, 802.11ax, And 802.11be APs For Simple Scalability.
• Built-In Application Identification Server
  • Supports Layer 4 To Layer 7 Application Identification And Can Identify Over 6000 Applications, Including Common Office Applications And P2P Download Applications, Such As Lync, FaceTime, YouTube, And Facebook.
  • Supports Application-Based Policy Control Technologies, Including Traffic Blocking, Traffic Limit, And Priority Adjustment Policies.
  • Supports Automatic Application Expansion In The Application Signature Database.
• Comprehensive Reliability Design
  • Supports AC 1+1 HSB And N+1 Backup, Ensuring Uninterrupted Services.
  • Supports Port Backup Based On The Link Aggregation Control Protocol (LACP) Or Multiple Spanning Tree Protocol (MSTP).
  • Supports WAN Authentication Escape Between APs And WLAN ACs. In Local Forwarding Mode, This Feature Retains The Online State Of Existing STAs And Allows Access Of New STAs When APs Are Disconnected From WLAN ACs, Ensuring Service Continuity.
• Built-In Visualized Network Management Platform
  • The eKitEngine AC650-512AP Has A Built-In Web System That Is Easy To Configure And Provides Comprehensive Monitoring And Intelligent Diagnosis.
• Health-Centric One-Page Monitoring, Visualized KPIs
  • One Page Integrates The Summary And Real-Time Statistics. KPIs Are Displayed In Graphs, Including User Performance, Radio Performance, And AP Performance, Enabling Users To Extract Useful Information From The Massive Amounts Of Monitored Data, While Also Knowing The Device And Network Status Instantly.
• Profile-Based Configuration By AP Group Simplifies Configuration Procedure And Improves Efficiency.
  • The Web System Supports AP Group-Centric Configuration And Automatically Selects The Common Parameters For Users, Meaning That Users Do Not Need To Pre-Configure The Common Parameters, Simplifying The Configuration Procedure.
  • If Two AP Groups Have Small Configuration Differences, Users Can Copy The Configurations Of One AP Group To The Other. This Improves Configuration Efficiency Because Users Only Need To Modify The Original Configurations, Not Create Entirely New Ones Each Time.
• One-Click Diagnosis Solves 80% Of Common Network Problems.
  • The Web System Supports Real-Time And Periodic One-Click Intelligent Diagnosis From The Dimensions Of Users, APs, And WLAN ACs, And Provides Feasible Suggestions For Troubleshooting The Faults.

Technical Specifications

• Managed APs: 512

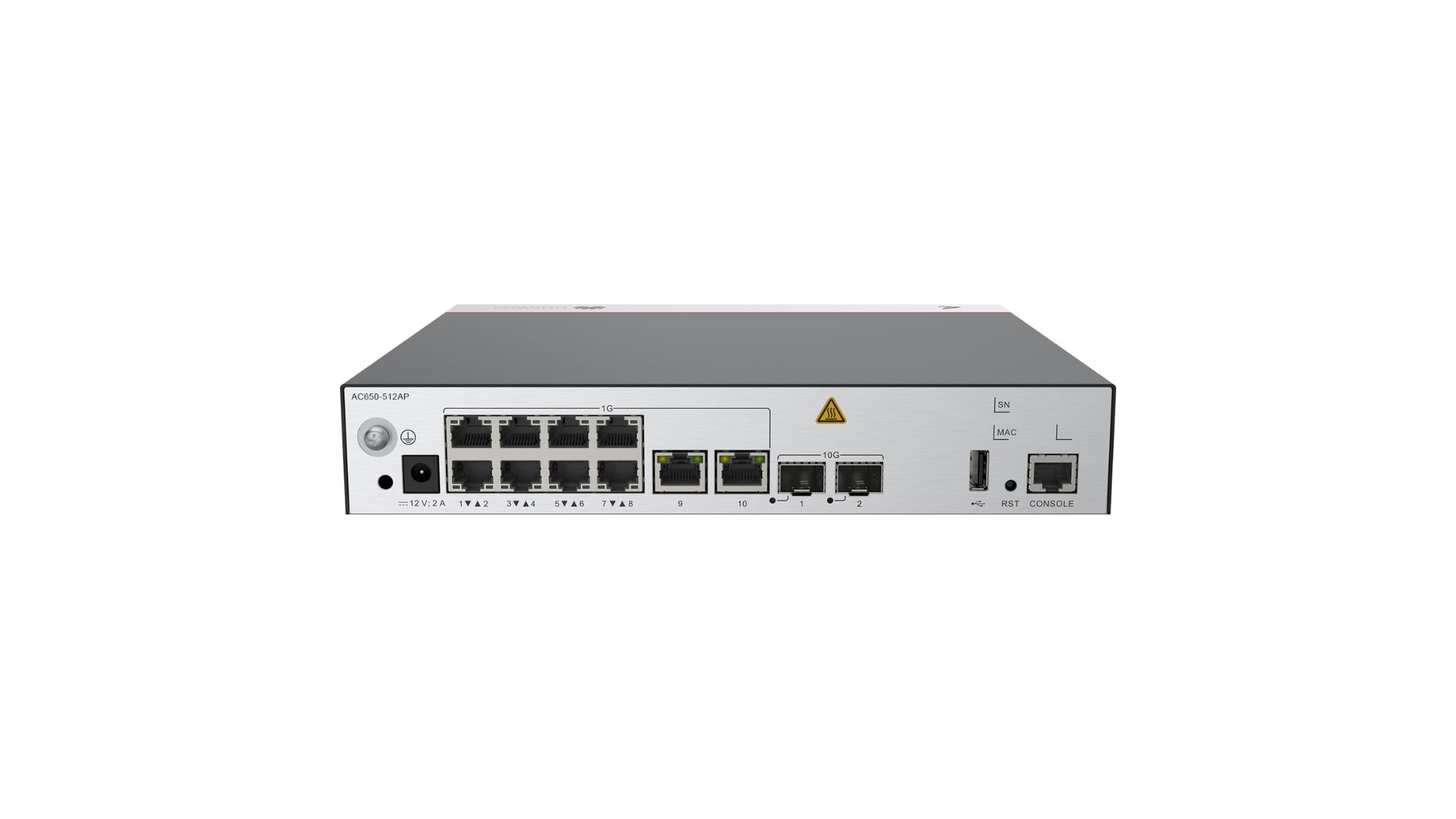

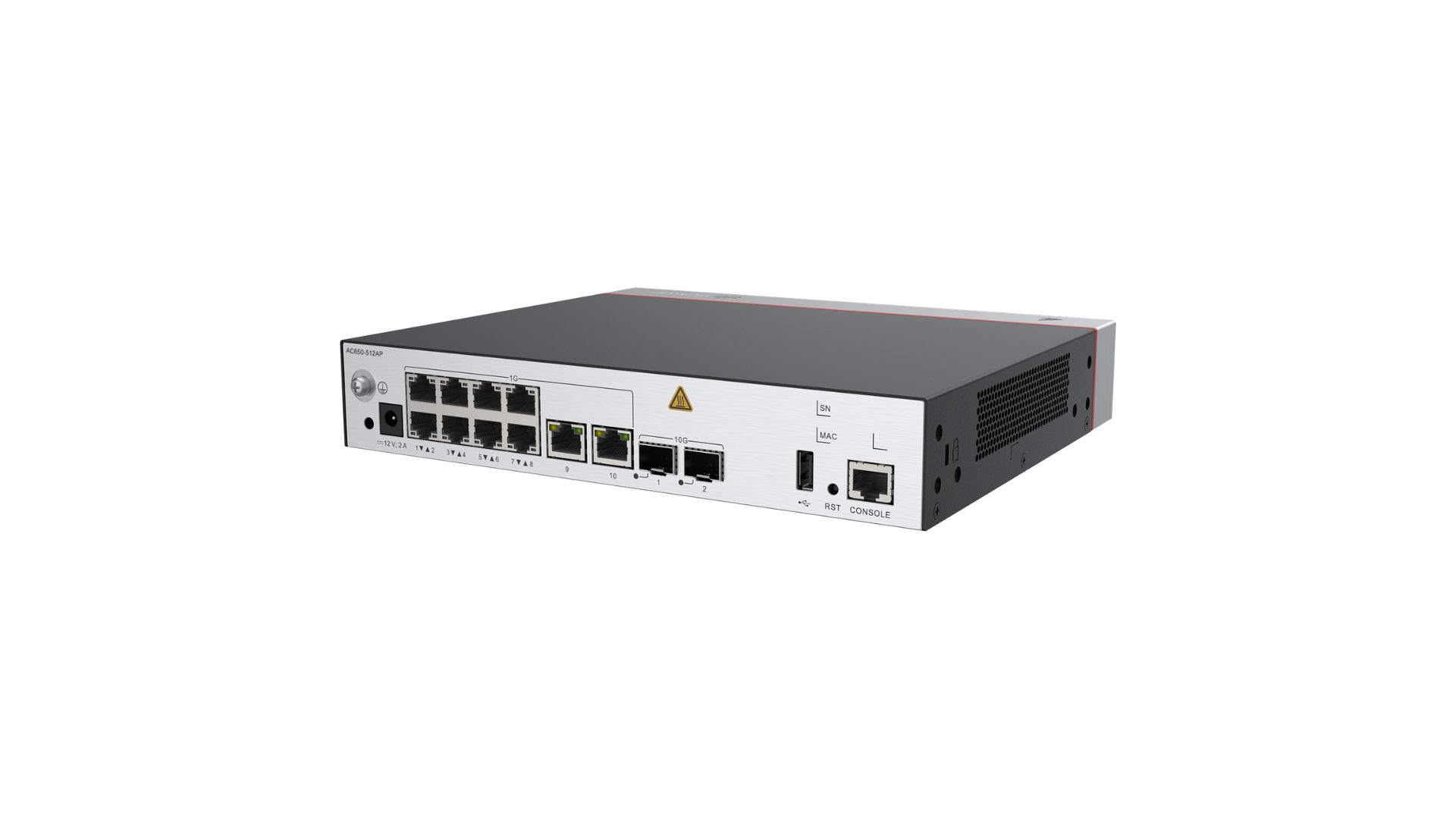

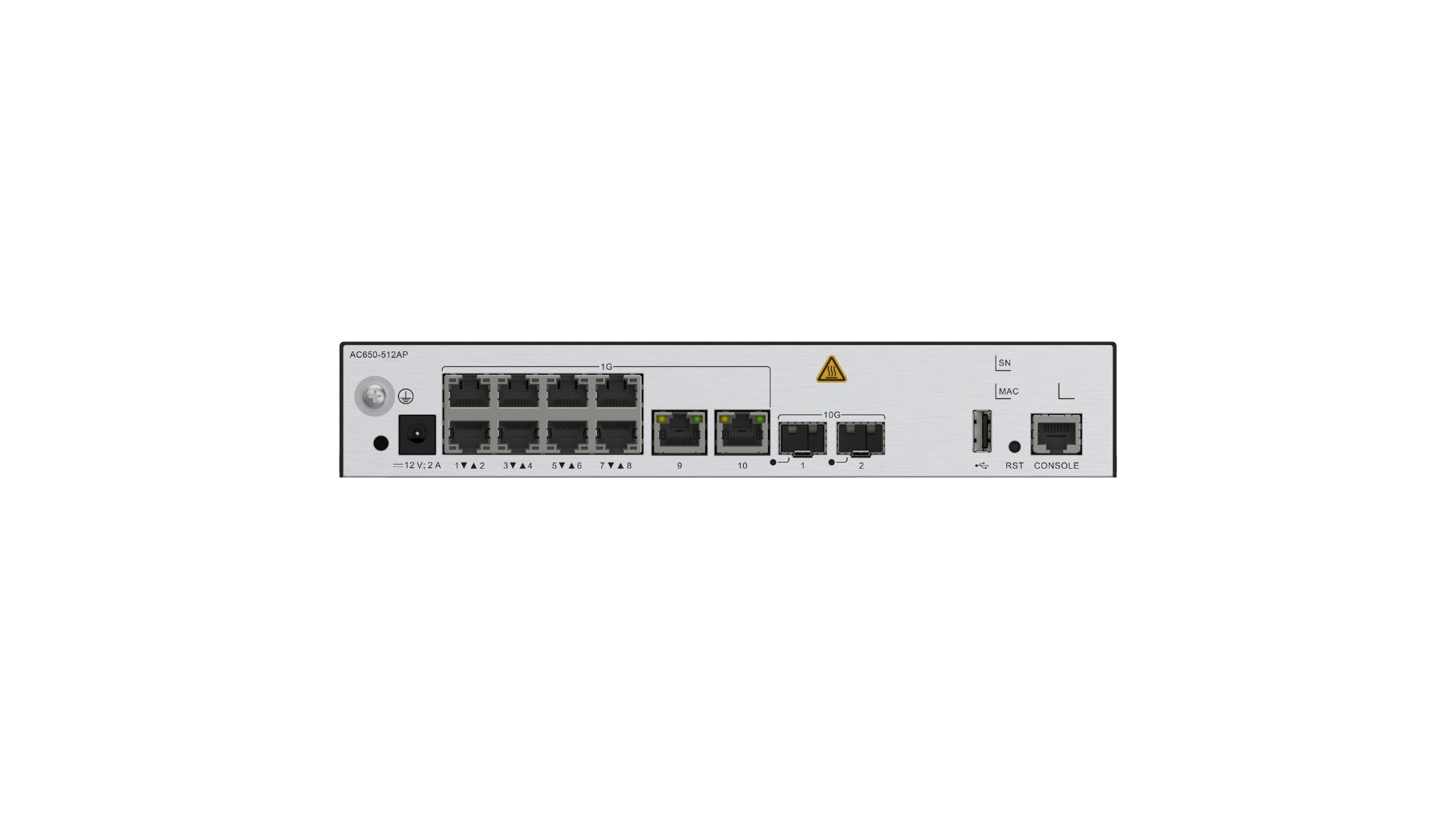

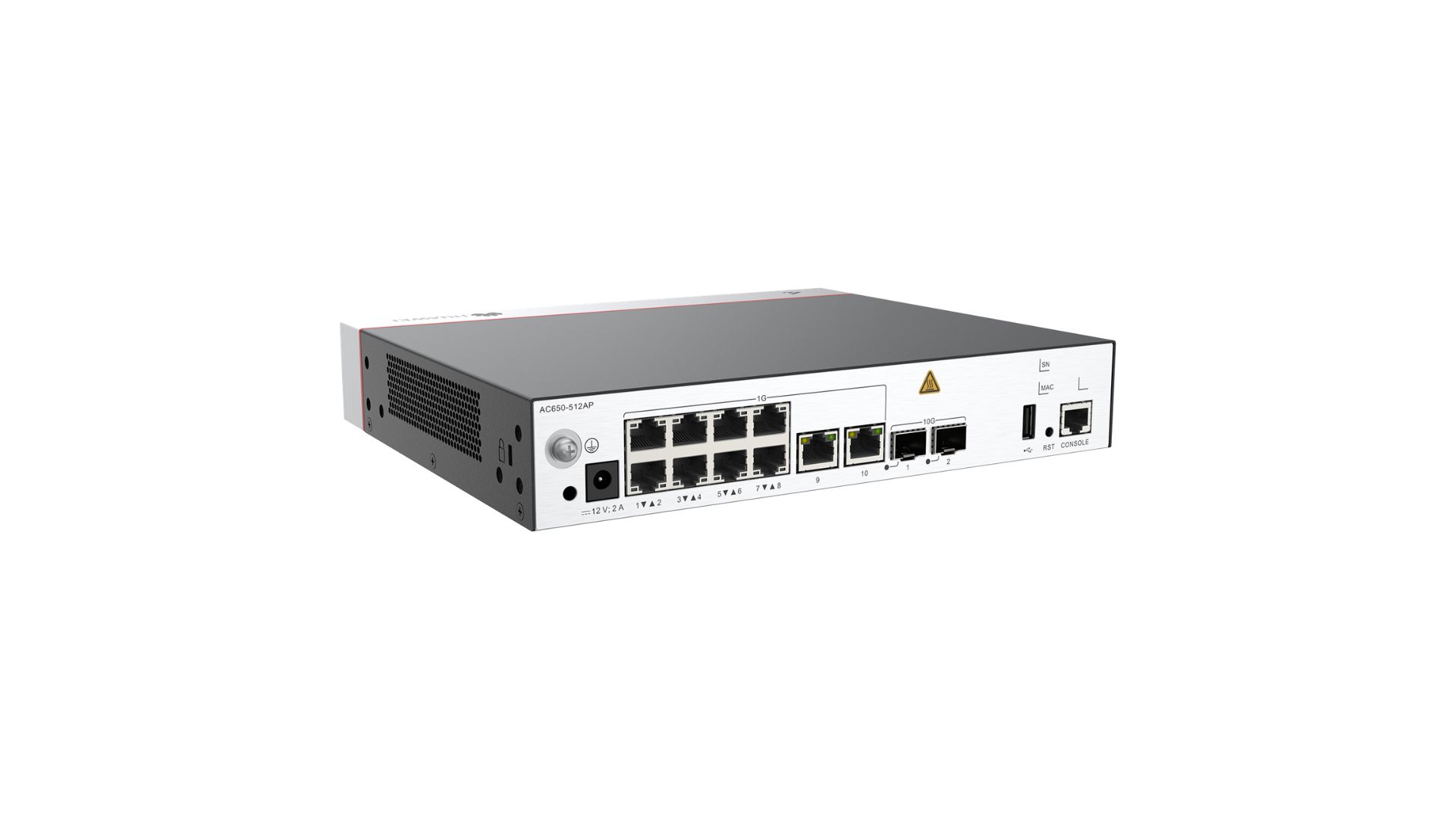

• Maximum Number of Physical Ports:
  • 2 × 10GE (SFP+)
  • 10 × GE (RJ45)
• Dimensions (H × W × D):
  • Basic dimensions: 43.6 mm × 250 mm × 210 mm (1.72 in. × 9.84 in. × 8.27 in.)
  • Maximum dimensions: 43.6 mm × 250 mm × 215 mm (1.72 in. × 9.84 in. × 8.46 in.)
  • With packaging: 110 mm × 465 mm × 335 mm (4.33 in. × 18.31 in. × 13.19 in.)
• Installation Type: Rack / Desk / Wall
• Weight: 1.9 kg without packaging / 2.55 kg (5.62 lb) with packaging
• Maximum Power Consumption: 25.06 W

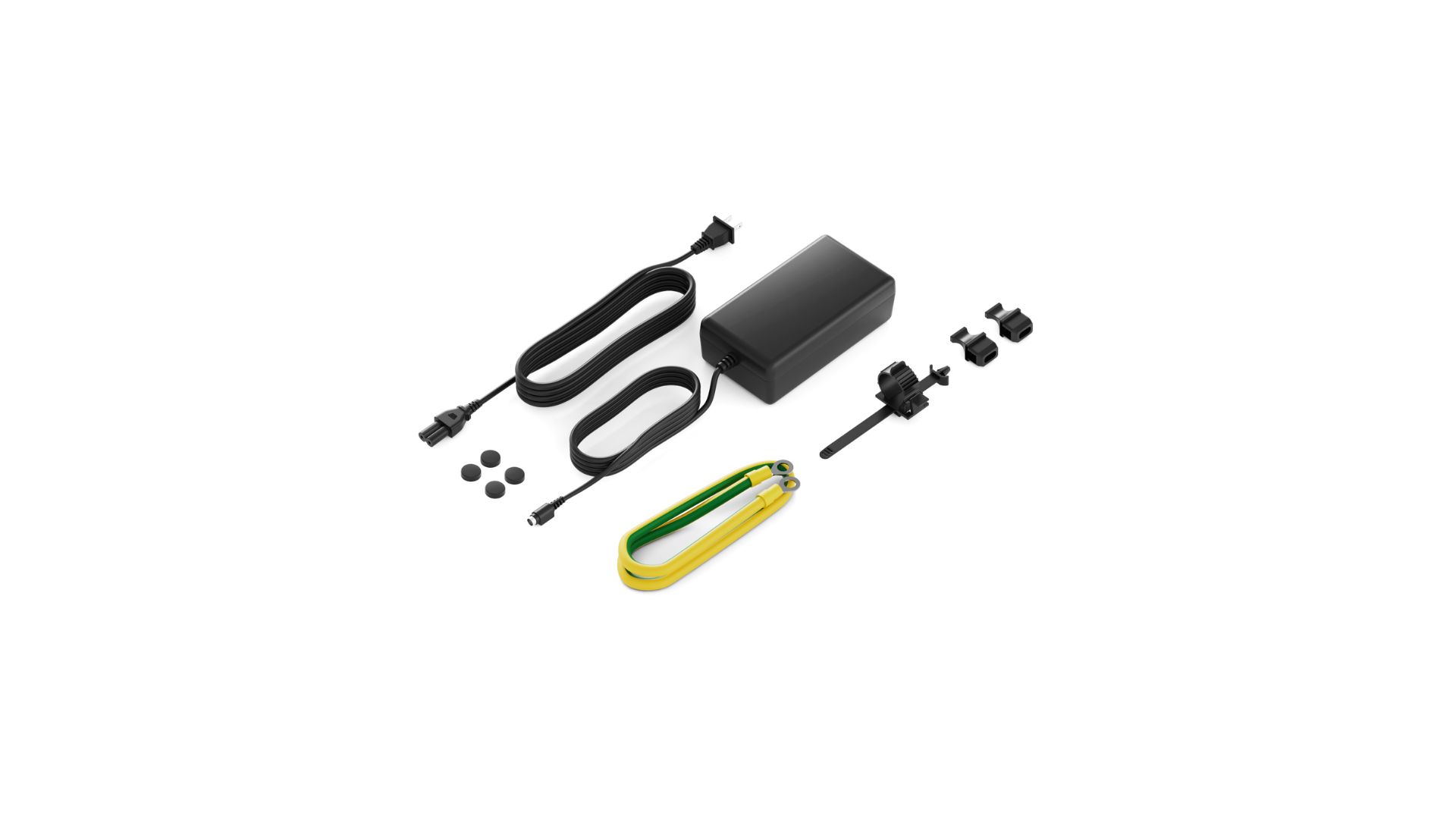

• Power Supply Mode: DC power adapter
• Long-Term Operating Temperature:
  • 0°C to 45°C (32°F to 113°F)
  • From 1800 m to 5000 m (5905.51 ft. to 16404.20 ft.), the maximum operating temperature decreases by 1°C (1.8°F) for every 300 m (984.25 ft.) increase in altitude.
• Long-Term Operating Relative Humidity [RH]: 5% RH to 95% RH, non-condensing
