Description

Wi-Fi 7 With Faster Transmission And Stronger Performance.

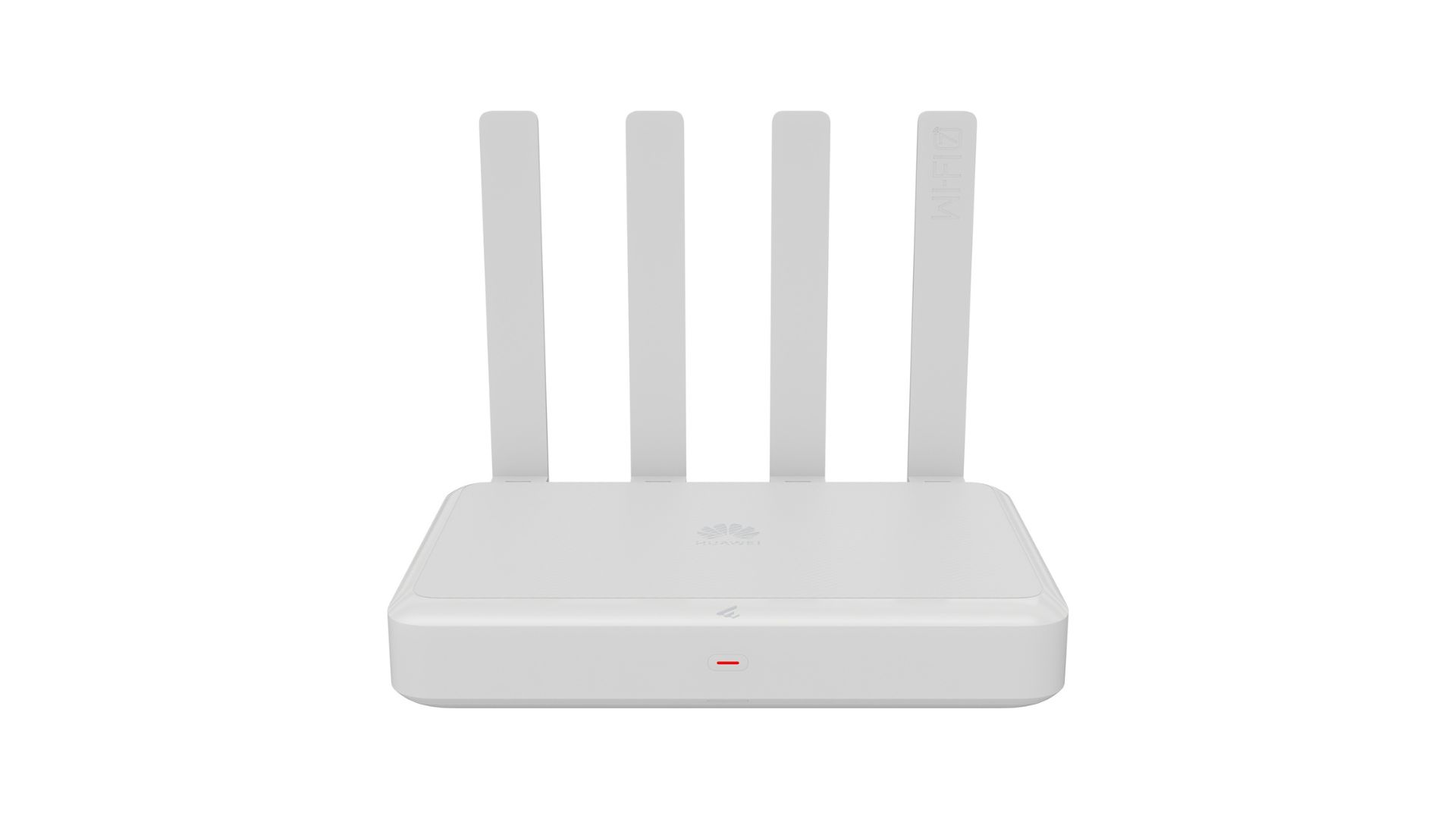

On the AR180 series, Wi-Fi 7 with Multi-Link Operation (MLO) aggregates bandwidth across two frequency bands, achieving faster speeds and more efficient transmission than Wi-Fi 6. Enhanced with 4096-QAM modulation and demodulation, the AR180 series offers a 20% increase in data throughput, significantly optimizing Internet access experience. In addition, the AR180 series can work with four external high-gain smart antennas that can dynamically adjust their angles based on environment conditions, enhancing network coverage.

Diverse Ports.

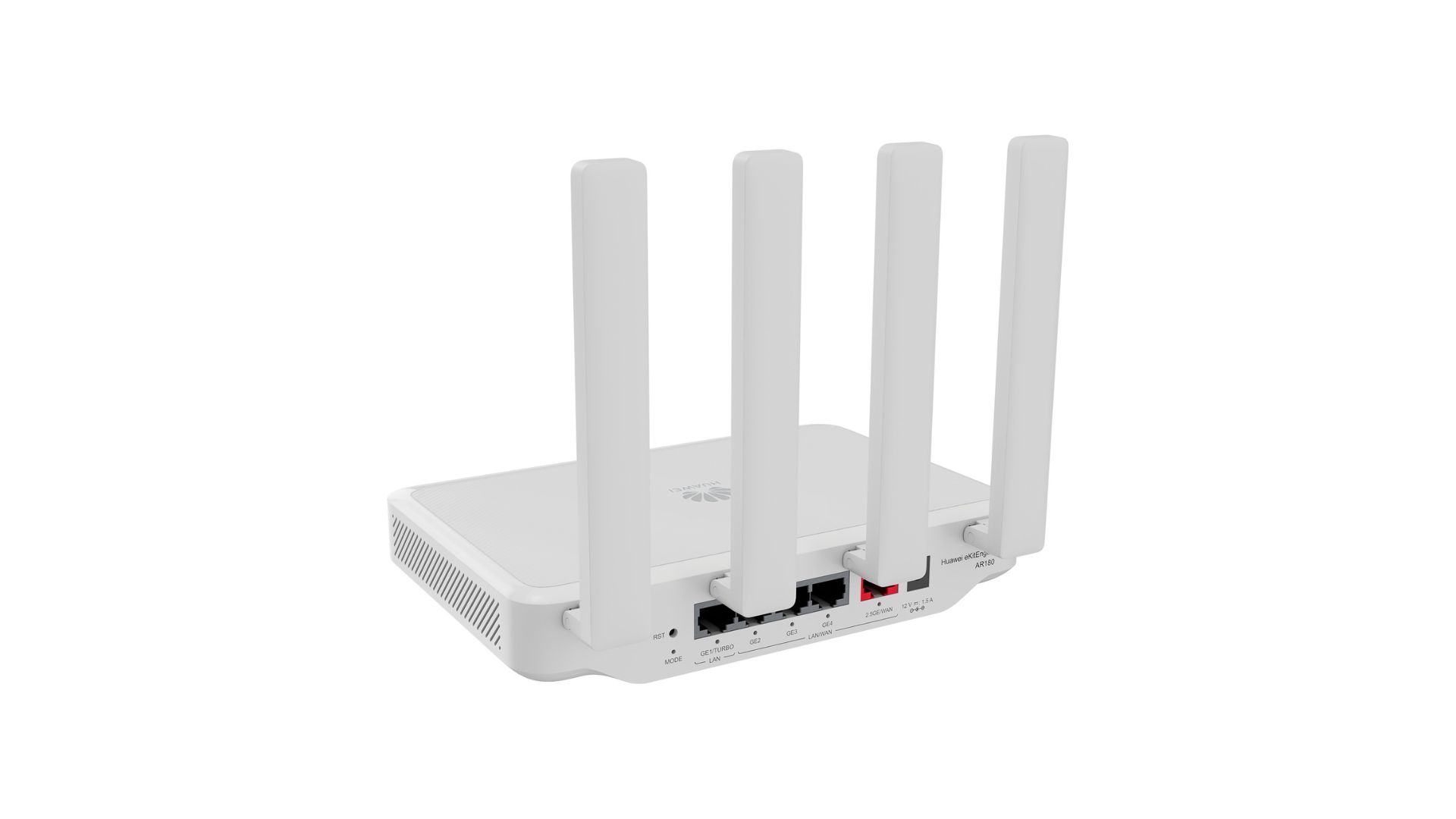

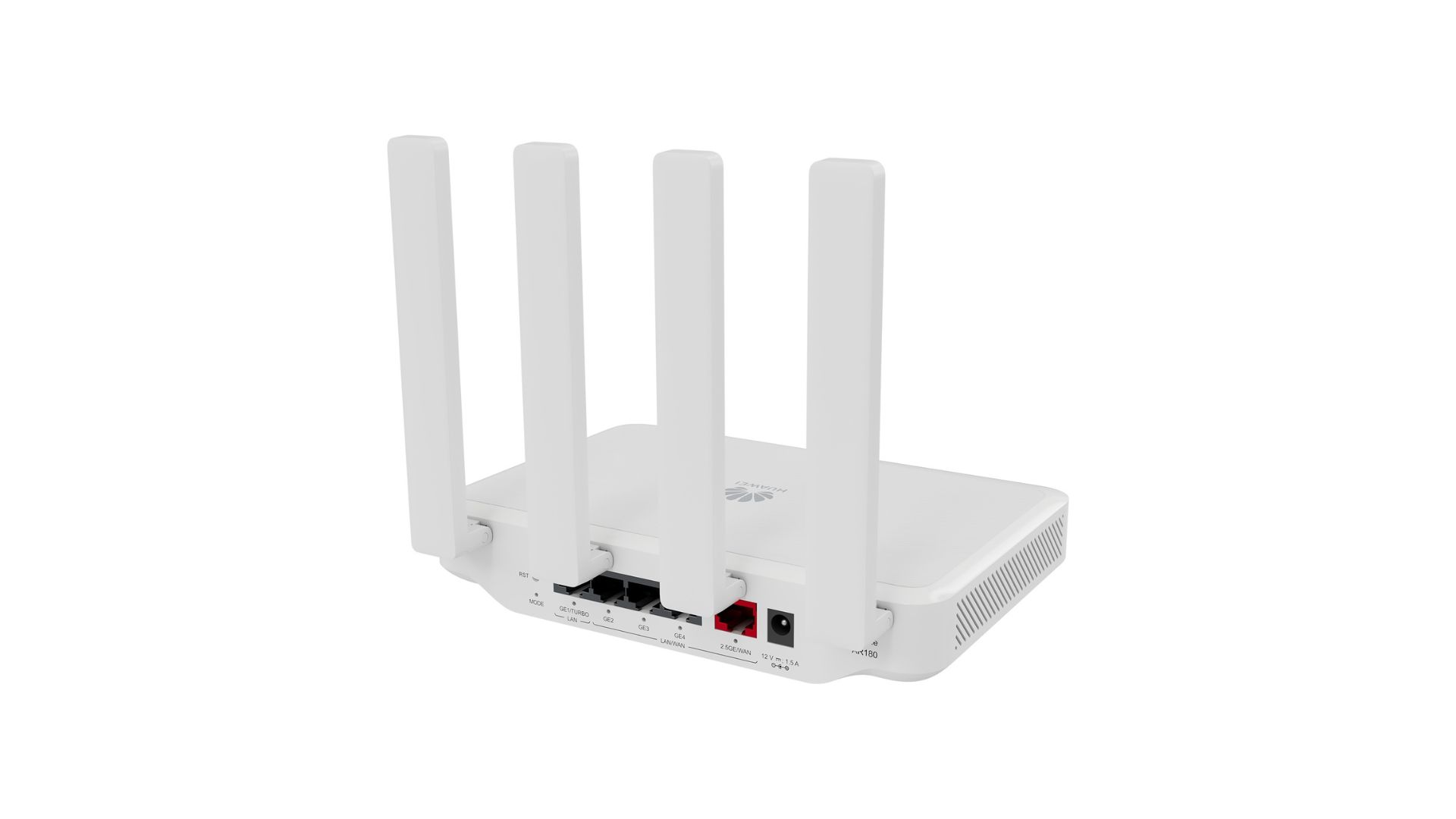

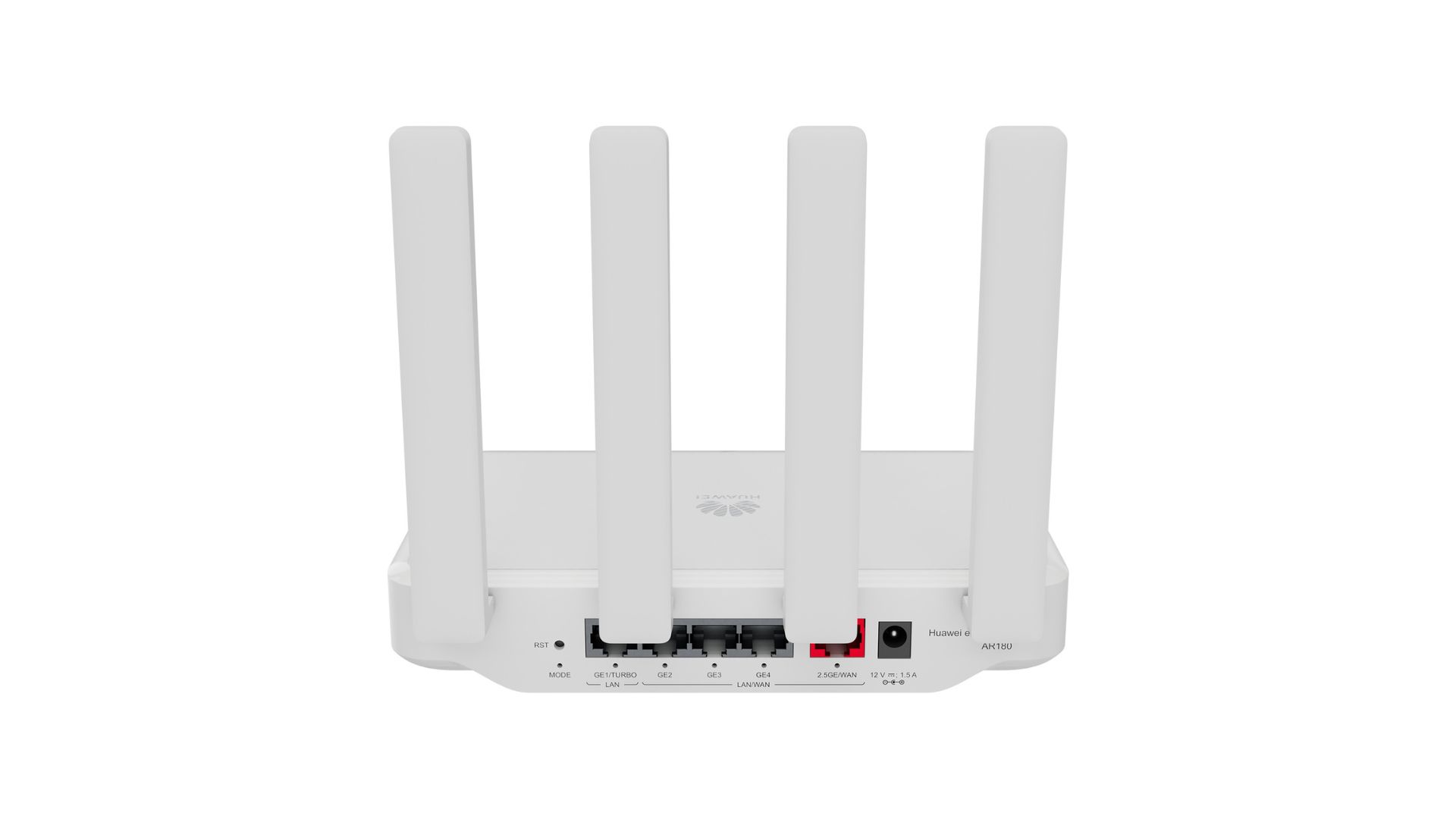

• • The AR180 series provides a 2.5GE high-speed WAN port that supports broadband access at 2000 Mbit/s. This port can be flexibly configured as a LAN port for high-speed transmission between devices. By offering one fixed LAN port and three GE LAN/WAN interchangeable ports, the AR180 series enables multi-path Internet access, Equal-Cost Multi-Path (ECMP), and Unequal Cost Multi-Path (UCMP), ensuring smooth forwarding of up to 48 channels of 4K ultra-high-definition video without packet loss or stuttering.
  • The AR180 series comes with a dedicated Turbo acceleration port. With no configuration required, traffic on this port is preferentially forwarded upon device connection, reducing latency and ensuring smooth gaming.

High-Speed Access.

In terms of Wi-Fi access, the AR180 series supports 160 MHz frequency bandwidth, which increases the number of available data subcarriers and expands transmission channels. In addition, it adopts 4096-QAM and MIMO to achieve a rate of up to 0.69 Gbps on the 2.4 GHz band and 2.88 Gbps on the 5 GHz band, meaning up to 3.57 Gbps for the device.

Smart Mesh Networking.

The AR180 series can set up mesh networking for up to 8 devices, with automatic long-range discovery up to 20 meters. Devices can be installed before configuration, enabling rapid self- networking without manual intervention. Wired and wireless mesh links back up each other, switching intelligently to keep networks stable and uninterrupted. Gateways work together to select the fastest frequency bands, ensuring high-speed data transmission and eliminating signal blind spots. This delivers a truly “deploy once, full coverage everywhere” networking experience.

Application Control.

The AR180 series offers Application control, capable of accurately identifying over 500 common applications. It supports three flexible management modes: application blocking, priority assurance, and bandwidth control. Policies can be defined by effective time and date, and applied to specific IP addresses to guarantee the experience of critical services. This enables efficient network management and control, contributing to higher efficiency.

IPSec VPN.

The AR180 series supports the IPSec VPN function, enabling the establishment of secure, encrypted communication channels between branches. This secures data transmitted across branch networks, enabling safe and reliable interconnectivity.

Various Management Modes For Easy O&M.

The AR180 series supports multiple management platforms, including HUAWEI eKit app, cloud platform, and EasyWeb (only the AR180 Pro supports local management), allowing you to manage network devices anytime and anywhere. Its cloud-based management mode can enable PSK and Portal authentication without the need for dedicated WACs or authentication servers, greatly simplifying networking and reducing CAPEX. In addition, the AR180 series supports online network planning, deployment, inspection, and O&M on the Huawei SME Network cloud management platform.

Technical Specifications

• • Dimensions (H x W x D):
    • Basic dimensions: 35 mm × 195 mm × 130 mm (1.38 in. × 7.68 in. × 5.12 in.)
    • Maximum dimensions: 163 mm × 195 mm × 150 mm (6.42 in. × 7.68 in. × 5.91 in.)
    • With packaging: 90 mm × 230 mm × 185 mm (3.54 in. × 9.06 in. × 7.28 in.)
  • Weight: 0.63 kg (without packaging) / 0.99 kg (with packaging)
  • Installation Type: Work bench / Against the wall
  • Chassis Height: 0.8 U
  • CPU: 1.3 GHz dual-core
  • Typical Power Consumption: 7 W
  • Maximum Power Consumption: 13 W
  • Power Supply Mode: AC power adapter
  • Number of Power Modules: 1
  • Rated Input Voltage: 110 V AC–220 V AC, 50/60 Hz
  • Input Voltage Range: 90 V AC–264 V AC, 45 Hz–65 Hz
  • Maximum Output Power: 24 W
  • LAN Ports:
    • 4 × GE electrical interfaces
  • WAN Ports:
    • 1 × 2.5GE electrical port
  • GE RJ45: 4 (1G/100M/10M)
  • 2.5GE RJ45: 1 (2.5G/1G/100M/10M)
  • Heat Dissipation Mode: Natural heat dissipation
  • Airflow: Natural heat dissipation
  • Long-Term Operating Temperature [°C(°F)]: 0°C to 40°C (32°F to 104°F). When the altitude is 1800 m–5000 m (5906 ft.–16404.2 ft.), the highest operating temperature decreases by 1°C (1.8°F) for every 220 m (722 ft.) increase in altitude.
  • Storage Temperature [°C(°F)]: -40°C to +70°C (-40°F to +158°F)
  • Long-Term Operating Relative Humidity [RH]: 5% RH to 95% RH, non-condensing
  • Environmental Standards Compliance:
    • EN 300 019-2
    • IEC 60068-2
  • Overtemperature Alarm: Supported
  • Safety Regulation Certification:
    • IEC/EN/UL 62368-1
    • GB 4943.1
    • CSA C22.2 No. 62368-1
    • AS/NZS 62368-1
  • EMC Certification:
    • EN 55032
    • EN 55035
    • EN 300386
    • EN 61000-3-2
    • EN 61000-3-3
    • EN 301 489-1
    • EN 301 489-17
    • ICES-003
    • AS/NZS CISPR32
    • VCCI-CISPR32
    • GB/T 9254.1
    • FCC CFR47 Part 15
  • Certification:
    • EMC certification
    • Safety certification
    • Manufacturing certification
