Description

Technical Specifications

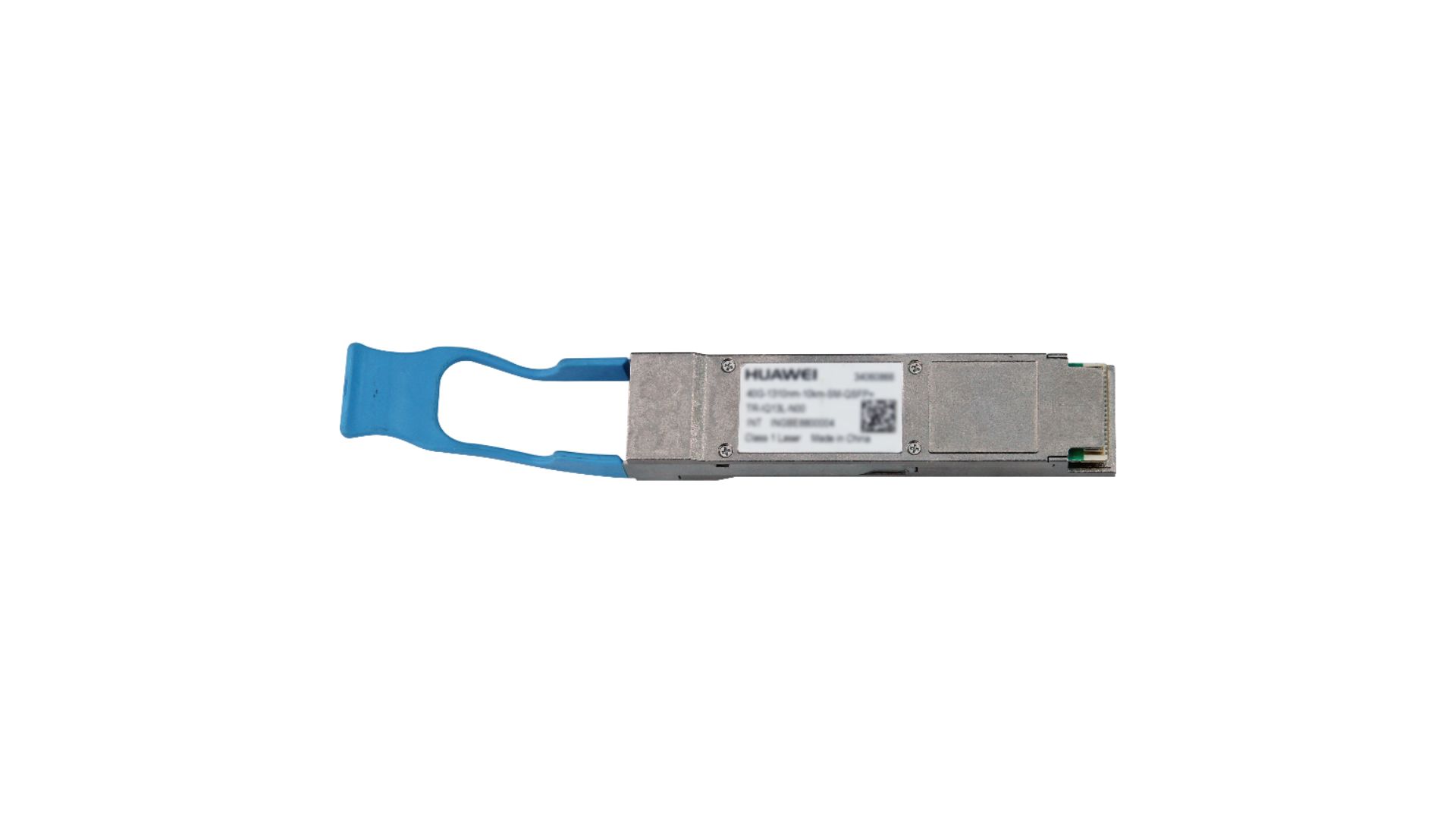

• Module Name: QSFP-40G-iSR4-eKit
• Part Number: 02315HPD
• Form Factor: QSFP+
• Application Standard:
  • 40GBASE-SR4
  • 40GBASE-iSR4 (non-standard)
• Connector Type: MPO/PC (8-strand or 12-strand, Type B, female connector)
• Optical Fiber Type: MMF
• Working Case Temperature: 0°C to 70°C (32°F to 158°F)
• Digital Diagnostic Monitoring (DDM): Supported
• Transmission Rate:
  • 40 Gbit/s
• Target Transmission Distance:
  • OM3 multimode fiber: 0.1 km
  • OM4 multimode fiber: 0.15 km
• Transmitter Optical Characteristics:
  • Center Wavelength: 850 nm
  • Maximum Tx Optical Power: 0.5 dBm
  • Minimum Tx Optical Power: -7.6 dBm
  • Minimum Extinction Ratio: 3.0 dB
• Receiver Optical Characteristics:
  • Rx Sensitivity: -9.5 dBm
  • Overload Power: 2.4 dBm
