Description

Technical Specifications

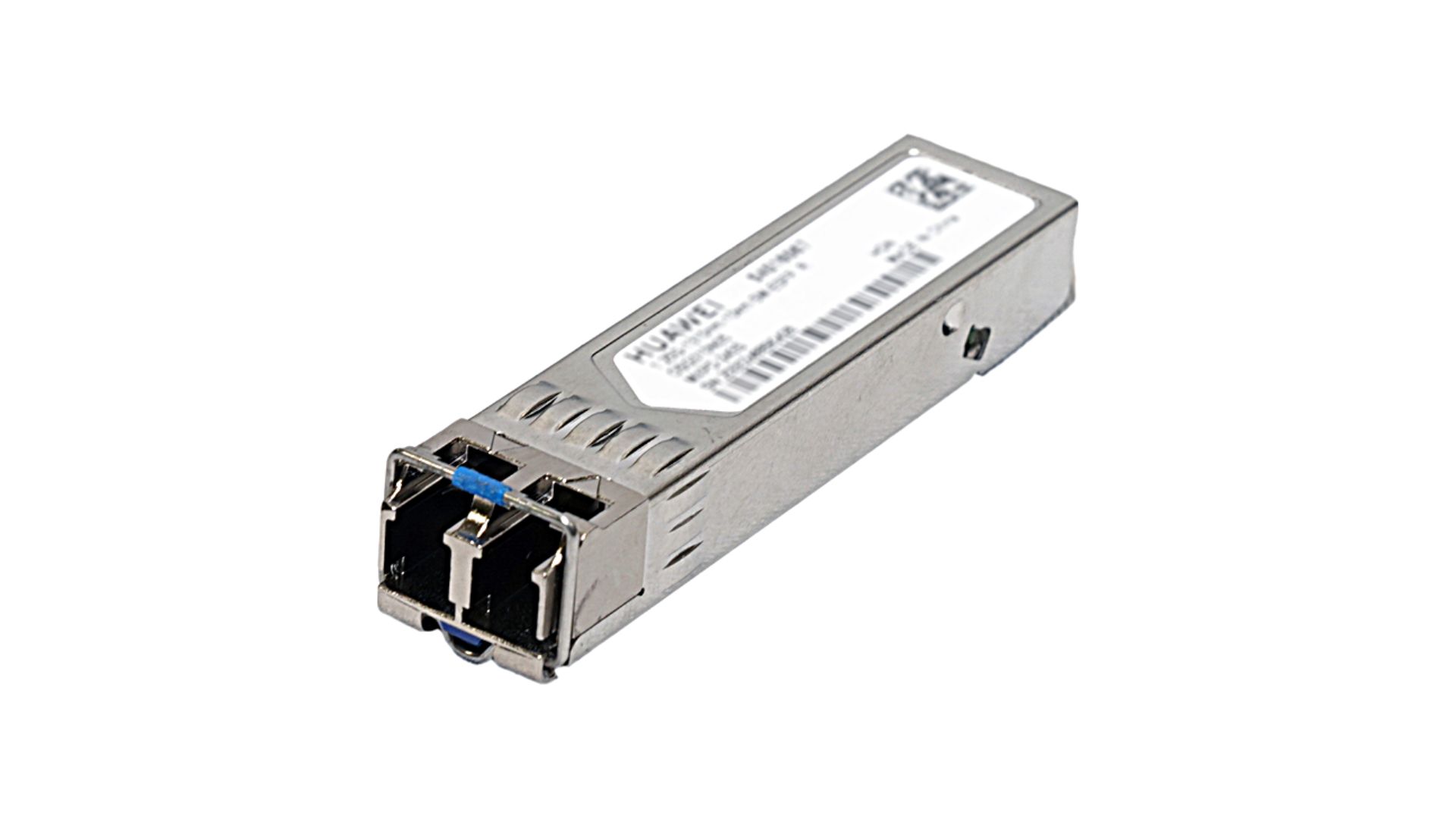

• Module Name: SFP-GE-SX-eKit
• Part Number: 02315HNY-
• Form Factor: eSFP
• Application Standard: 1000BASE-SX
• Connector Type: LC
• Optical Fiber Type: Multimode Fiber (MMF)
• Working Case Temperature: -20°C to +85°C (-4°F to +185°F)
• Digital Diagnostic Monitoring (DDM): Supported
• Transmission Rate:
  • 1 Gbit/s
• Target Transmission Distance:
  • Multimode fiber (62.5 μm, 160 MHz·km): 0.22 km
  • Multimode fiber (OM1): 0.275 km
  • Multimode fiber (50 μm, 400 MHz·km): 0.5 km
  • Multimode fiber (OM2): 0.55 km
  • Multimode fiber (OM3/OM4): 1 km
• Transmitter Optical Characteristics:
  • Center Wavelength: 850 nm
  • Maximum Tx Optical Power: -2.5 dBm
  • Minimum Tx Optical Power: -9.5 dBm
  • Minimum Extinction Ratio: 9 dB
• Receiver Optical Characteristics:
  • Rx Sensitivity: -17.0 dBm
  • Overload Power: 0 dBm
