Description
IP Audio conference Terminal
Intuitive user interface, superior HD voice, comprehensive range of terminals meet the needs of your entire organization for today and future.

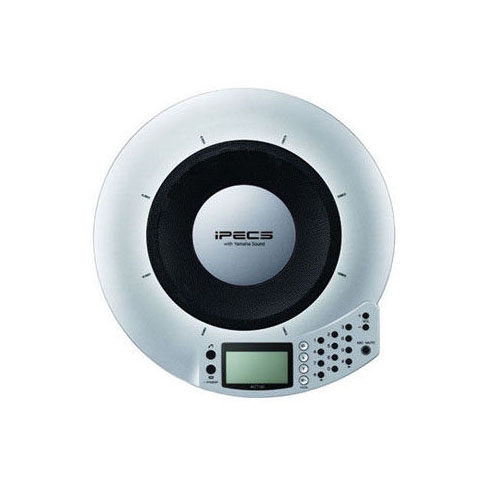

LG-Ericsson’s new iPECS Audio Conference Terminal delivers high performance audio conferencing with multiple sources. Connect to a LAN and ACT-50 is ready to bring your conference experience to a new level with advanced audio technology and high-fidelity sound.
Easy on listeners
Audio is delivered by the 4 speaker array, reproducing audio with rich and clear sound.
A selection of terminals support many types of conferences
ACT-50 has three built-in interfaces. The LAN port provides high sound quality conferencing between conference phones. The LINE port (for analog phone lines) facilitates emergency calls with land line phones, cell phones, and analog phone terminals. And to connect to a PC as a microphone speaker for Web conferencing or soft phone use, you can use the AUDIO(IN/OUT) port. ACT-50 offers a multi-interface voice conference system that can be used in various ways according to the application. [Figure 1]
Easy to connect
ACT-50 quickly connects to an IP network to establish a VoIP call. In addition, a standard audio input can connect to external sources such as a PC softphone. Also, the high performance adaptive echo canceller facilitates conferencing in a variety of environments from large, openspace offices to small meeting rooms with high reverberation.
Integrated audio mixer enables conferencing with mixed line types connects to a PC with an audio cable
With its various interfaces, ACT-50 can open calls with IP, analog phone, and audio connections. Parties away from the office can join IP audio conferences from their cell phones, or join Web conferences from a telephone (voice only). [Figure 2]
Microphone mode
ACT-50 provides 3 microphone modes for various environments. The default “Zone mode” is used for quiet environments and picks up audio from all directions. Spot mode is used when the number of talkers is limited to one or two, or when there is equipment that produces noise such as a projector nearby. ACT-50 fixes the audio pick up area to the front of the microphone by narrowing the directivity. Tracking mode automatically tracks and focuses on the audio of the talker. The audio can be picked up with narrow directivity so that other noises can be reduced. This mode is suitable to pick up the audio clearly in a noisy environment.
Specifications
General
- External interfaces : Ethernet(10/100Base-TX), Analog phone/modular jack, Stereo analog audio in/out x 1 each (mini-jacks), AC adapter connector (DC-12V IN): for the provided AC power adapter
- Power consumption : Approx. 8W
- Radio interference standard : FCC part 15 (US), EN 55022 (EU)
- Operating environment : Operating temperature:0-40℃ (32-104℉), Operating humidity:20%-85% (no condensation)
- Size : 283.4(W) x 51.5 (H) x 297.5 (D)mm
- Weight : Approx. 1.4kg (excl.power adapter)
- Power supply : 100 to 240 V AC (50/60 Hz)
- Accessories : AC adapter, power cable, LAN cable, phone cable, owner’s manual
- Other : Logging facility (SYSLOG), Firmware revision update (HTTP, TFTP) Settings (Web menu and front panel key operations)
Audio
- Arrayed microphones : Zone audio pickup function, spot audio pickup function, microphone auto tracking function
- Arrayed speakers : Output level: 85dB
- Frequency range : 300-7000Hz(wide band)
- Signal processing : Adaptive echo canceller, noise reduction, microphone/speaker array control
Communications
- Supported audio codec : G.722 G.711 A-Law / μ-Law G.729
- Other functions : Compliance with DHCP, and SIP: internal clock time synchronization with SNTP server
