Description

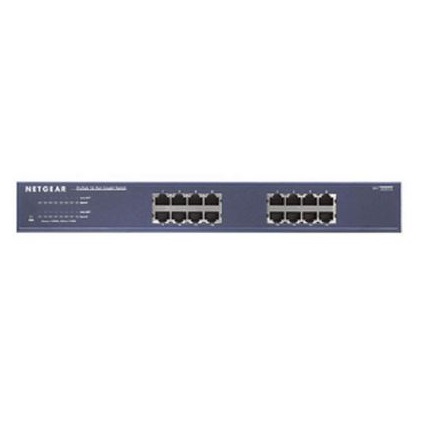

Take Gigabit to the Desktop

NETGEAR’s JGS500 Gigabit Switch Series gives your office network a megaboost of speed and capacity that is within your budget. With up to 32 Gbps of bandwidth, these 16-port switches can blast 2000 Mbps per port while their affordable prices enable you to put them everywhere. Use it to take Gigabit Ethernet directly to the desktop! Standards-based for easy integration of 10, 100, and 1000 Mbps devices, these unmanaged, rack-mountable switch feature 10/100/1000 automatic speed and full/half-duplex sensing plus Auto Uplink™ on every port. Users can take advantage of the their ability to deliver large amounts of multimedia, image, and video  information in no time at all. Ideal for workgroups, labs, departments, or growing offices looking for oustanding performance at a low price.

Highlights

High Capacity

1000 Mbps speeds and a switching capacity of up to 32 Gbps meet the performance needs for even the most bandwidth-hungry applications. The JGS516 series are perfect for graphics, multimedia, and other applications that have to move large files across the network quickly.

Affordable

Aggressive prices enable your workgroup, department or small network to ramp up to Gigabit speeds, even all the way to the desktop.

Flexible

Each port is equipped with automatic speed and duplex sensing, plus Auto Uplink to adjust for straight-through or crossover cables to make the right link. Standards-based design makes it easy to combine 10, 100, and 1000 Mbps devices on your network

Convenient

Easy to set up and easy to use, these unmanaged switches have per port LED’s for effortless network monitoring. Compact enough for desktop but comes with a rack mount kit. Compatible with PC, Macintosh, Linux, and Unix operating systems.

SPECIFICATIONS

Physical Specifications

• Network Ports
– JGS516: 16 10/100/1000 Mbps twisted-pair RJ-45 ports

• Performance
– Switching bandwidth: 48 gigabit per sec
– Forward rate (1000 Mbps port): 1,480,000 packest per sec
– Forward rate (100 Mbps port): 148,000 packets per sec
– Forward rate (10 Mbps port): 14,800 packets per sec
– Latency (1000 to 1000 Mbps): 20 µs max
– Packet Buffer Memory: 2 Mb
– MAC address database: 8,000
– Mean Time Between Failure (MTBF): 87,600 hours

• Power Consumption
– 100~240V; 50-60Hz; plug is localized to country of sale
– JGS516: 25W max

• Standards Compliance
– IEEE 802.3i 10BASE-T Ethernet
– IEEE 802.3u 100BASE-TX Fast Ethernet
– IEEE 802.3ab 1000BASE-T Gigabit Ethernet
– IEEE 802.3x Flow Control

• Status LEDs
– Unit: power
– Per network port: Link, Activity, Speed

• Physical Specifications
– Dimensions (h x w x d): 43 x 330x 207 mm (1.7 x 13 x 8.2″)
– Weight: 2.4 kg (5.3 lbs)

• Environmental Specifications
– Operating temperature: 0 to 40° C (32 to 104° F)
– Operating humidity: 90% maximum relative humidity, noncondensing
– Storage temperature: -20 to 70° C (-4 to 158º F)
– Storage humidity: 10 to 95% Relative Humidity JGS500 Series 16- and 24-port Gigabit Ethernet Switches

• Electromagnetic Compliance
– CE mark, commercial
– FCC Part 15 Class A
– VCCI Class A
– EN 55022 (CISPR 22), Class A, EN 50082-1,
– EN 55024
– C-Tick

• Safety Agency Approvals
– UL listed (UL 1950)/cUL
– IEC950/EN60950

• Warranty
NETGEAR 2-year warranty

System Requirements

– UTP Category 5 cables or better
– Network card for each PC or server (e.g. NETGEAR GA3)

Package Contents

– 16-port Gigabit Ethernet Switch JGS516
– Power adapter
– Installation guide
– Rack-mount kit
– Warranty/Support information card
