Description

This Type-C to Type-C USB 3.2 Gen 1×1 active optical cable offers data speeds up to 5Gbps and allows users to connect their laptop or other devices to Lightware’s USB-C compatible extenders and switchers. The cable’s length is ideal for most meeting rooms and presenter’s desk applications.

The cable proved itself to work with great efficiency with our USB-C capable Taurus product family as well as with various source devices. Its reliability, build quality and technical parameters make this accessory our number one choice for projects involving USB-C connectivity.

Supports peripherals via USB 2.0 and USB 1.1 up to 480 Mbps (Mouse, Keyboard, Thumb Drive, Speakerphone and Webcam) adding only one tier to USB 2.0 topology.

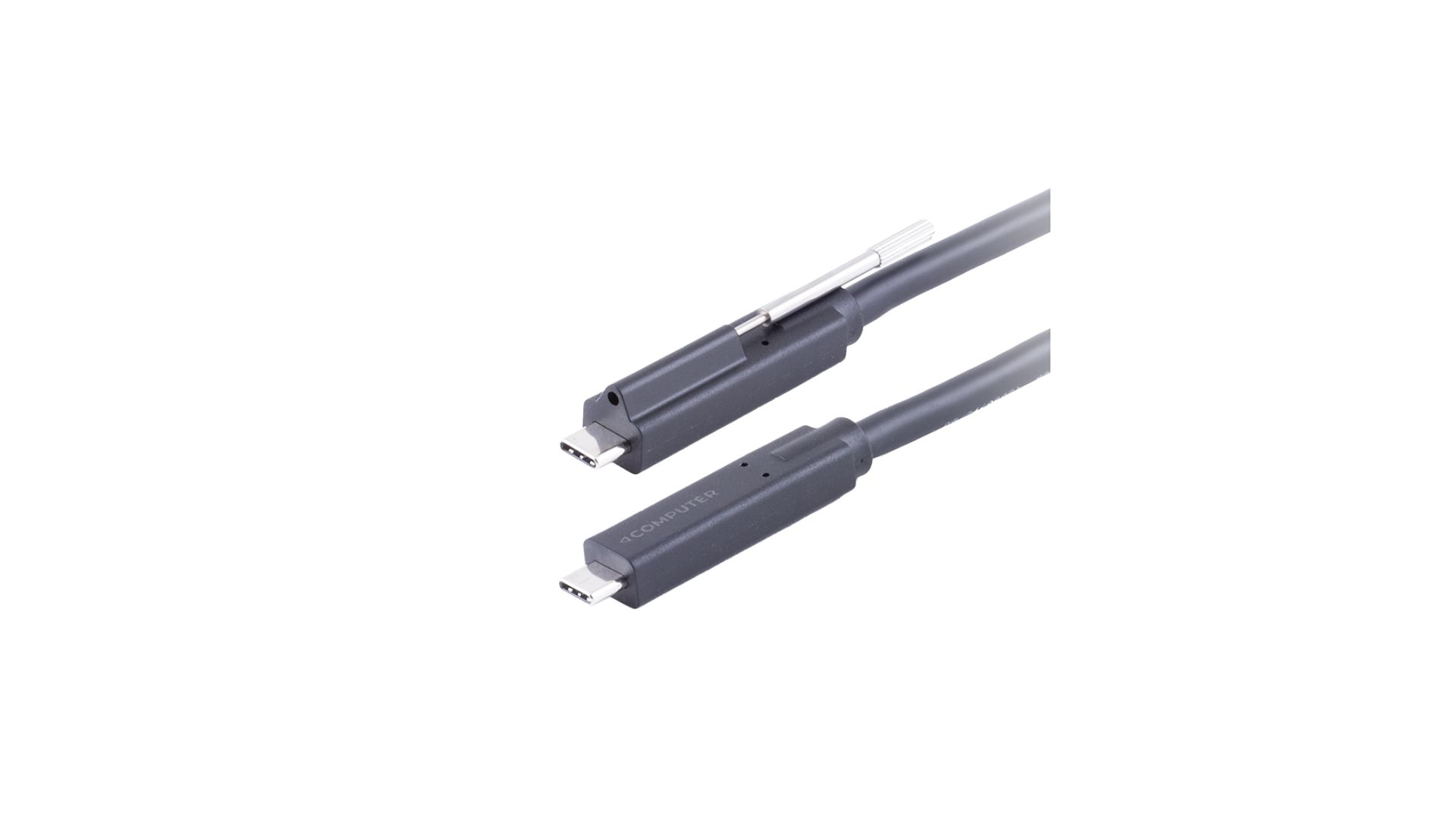

The cables are equipped with a Screw Lock USB-C plug that ensures a secure connection to the Taurus UCX. The plug is designed to prevent accidental disconnections during operation, providing users with a reliable and stable connection.

Hardware Specifications

Interface

• Connectors: USB Type-C Male, USB Type-C Male with Flange

Technical Parameters

• Maximum Data Speed: 5 Gbps (5 Gbps/lane)
• Data Type: USB 3.2 Gen 1×1, USB 2.0, USB 1.1
• eMarker Chip: Yes
• DisplayPort Alternate Mode: Yes, HBR3, 2-Lane
• Video Format: Up to 4096 × 2160 @ 60Hz (RGB 4:4:4) and 5120 × 2160 @ 30Hz (RGB 4:4:4)
• Number of USB3 Tier: 0
• Number of USB2 Tier: 1
• Rated Voltage: 20 V
• Rated Current: 3 A
• Operating Temperature: -10°C to +60°C
• Flammability: VW-1

Physical Parameters

• Length: 9.8 m
• Cable Diameter: 6.5 mm
• Jacket Material: PVC
• Wire Material: Fiber, Copper
• Mold Material: PVC
• Pin Coating: Gold-plated
• Bending Radius: 50.0 mm
• Pulling Force: 11 kg
• Tensile Strength: 200 N
• Compliance: TBD
• Color: Black
