Description
Product Details

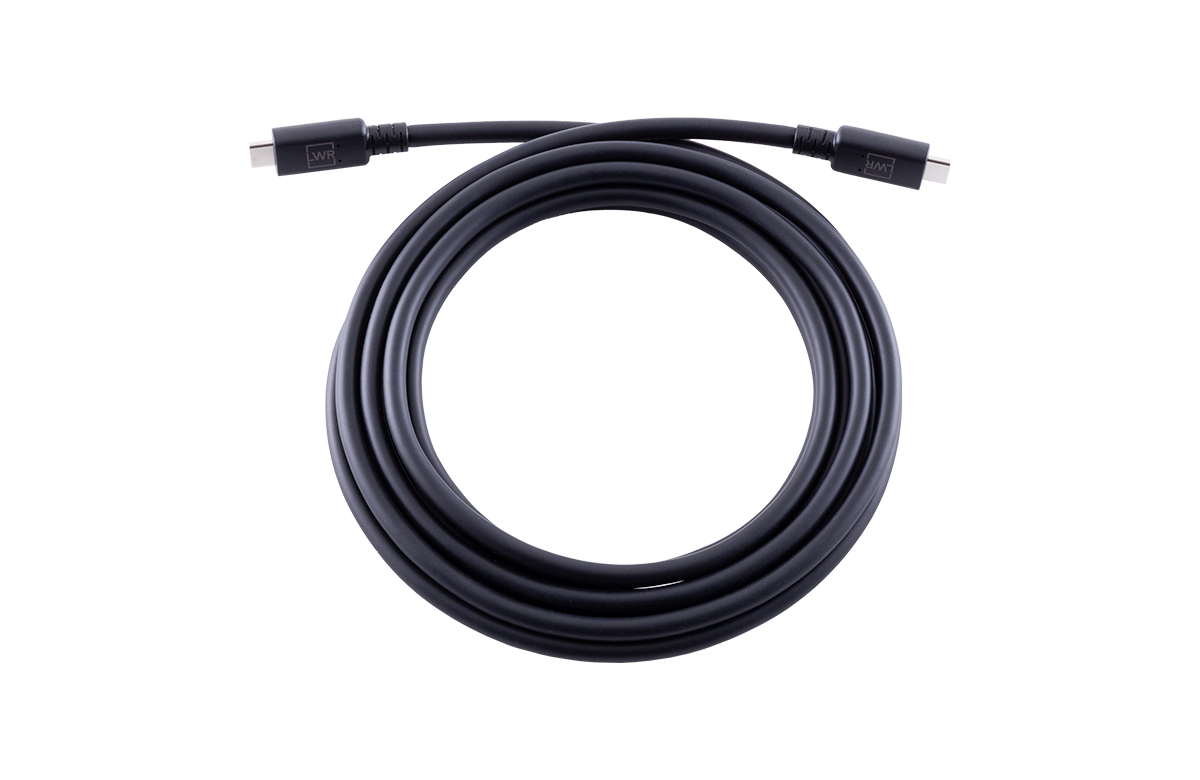

This Type-C to Type-C USB cable offers data speeds up to 20 Gbps (10 Gbps/lane) and allows users to connect their laptop or other devices to Lightware’s USB-C compatible extenders and switchers. The cable’s length of 3m is ideal for most meeting rooms and presenter’s desk applications.
The cable proved itself to work with great efficiency with our USB-C capable Taurus UCX/TPX/TPN family as well as with various source devices. Its reliability, build quality and technical parameters make this accessory our number-one choice for projects involving USB-C connectivity.
Hardware Specifications
Interface
- Connectors: 2 × USB Type-C Male
Technical Parameters
- Maximum Data Speed: 20 Gbps (10 Gbps/lane)
- Data Type: USB 3.2 Gen 2×2, USB 2.0, USB 1.1
- eMarker Chip: Yes
- DisplayPort Alternate Mode: Yes, HBR3, 2–4 Lane
- Video Format: Up to 4096 × 2160 @ 75Hz (RGB 4:4:4) and 5120 × 2160 @ 60Hz (RGB 4:4:4)
- Number of USB3 Tier: 0
- Number of USB2 Tier: 0
- Rated Voltage: 20 V
- Rated Current: 5 A
- Operating Temperature: -10°C to +60°C
- Flammability: VW-1
Physical Parameters
- Length: 3 m
- Cable Diameter: 5.9 mm
- Jacket Material: TPE
- Wire Material: Copper, 28 AWG
- Mold Material: PVC
- Pin Coating: Gold-plated
- Bending Radius: 23.6 mm
- Pulling Force: 4 kg
- Compliance: TBD
- Color: Black
