Description
Product Details

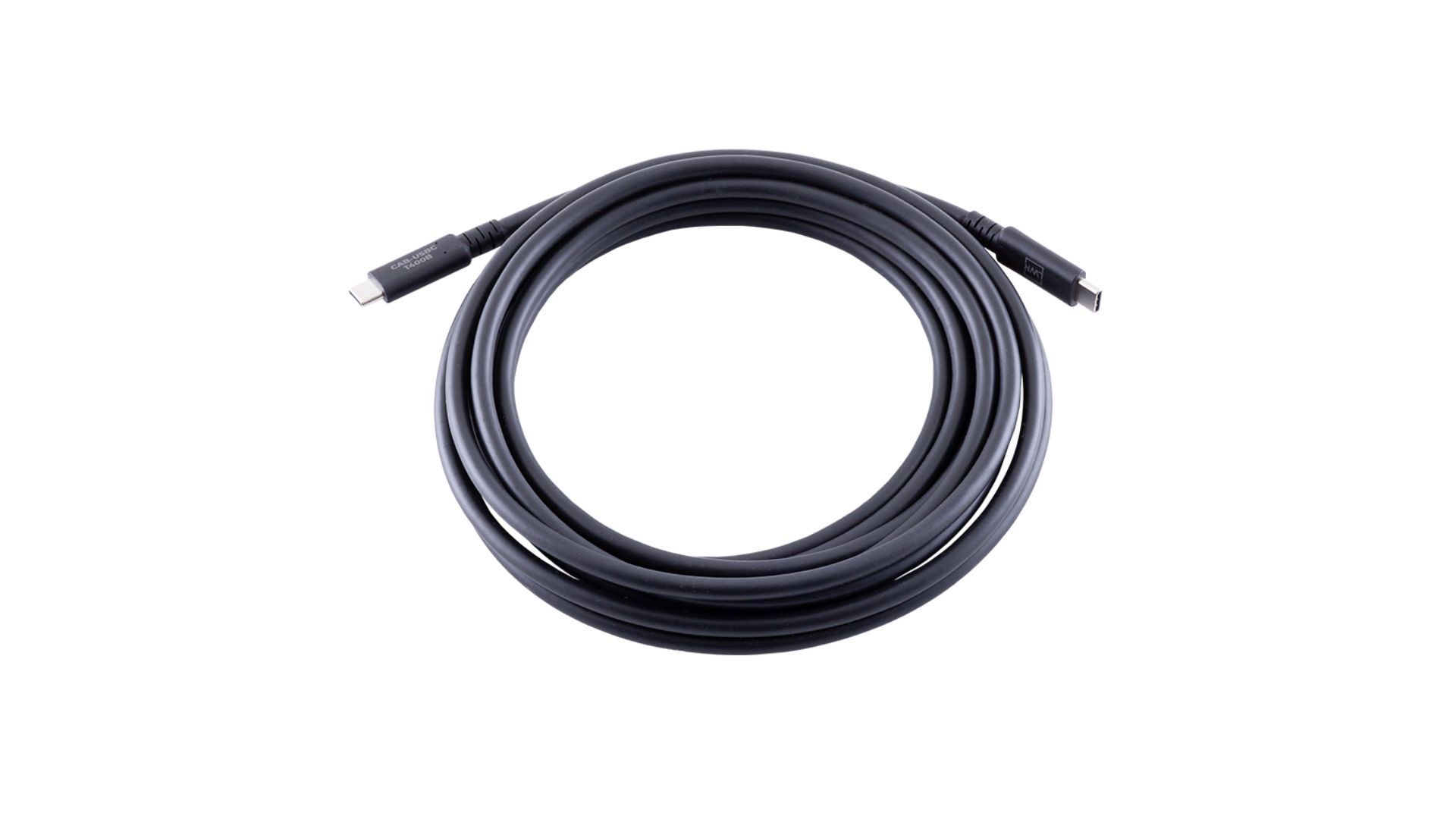

This Type-C to Type-C USB cable offers data speeds up to 10Gbps (5Gbps/lane) and allows users to connect their laptop or other devices to Lightware’s USB-C compatible extenders and switchers. The cable’s length of 4m is ideal for most meeting rooms and presenter’s desk applications.
The Microcoax technology makes it possible to send video signals to greater distances with a thinner cable that, combined with the TPE outer jacket, results in more flexible cable that is also less sensitive to noise. Furthermore, low intrapair skew and interpair skew values mean more optimal transmission for DisplayPort Alt mode.
The cables offer low delay and high compatibility with various of USB peripherals such as mouse, keyboard, thumb drive, speakerphone and webcam and are recognized by all major operating systems (Windows, iOS, macOS, Android, Linux)
The cable plug easily fits all USB-C laptop and tablet ports and the lack of bulky repeaters along the cable allows more convenient installation.
The cable proved itself to work with great efficiency with our new USB-C capable Taurus UCX as well as with various source devices. Its reliability, build-quality and technical parameters make this accessory our number one choice for projects involving USB-C connectivity.
Hardware Specifications
Interface
- Connectors: 2 × USB Type-C Male
Technical Parameters
- Maximum Data Speed: 10 Gbps (5 Gbps/lane)
- Data Type: USB 3.2 Gen 1×2, USB 2.0, USB 1.1
- eMarker Chip: Yes
- DisplayPort Alternate Mode: Yes, HBR2, 2–4 Lane
- Video Format: Up to 4096 × 2160 @ 60Hz (RGB 4:4:4) and 5120 × 2160 @ 30Hz (RGB 4:4:4)
- Number of USB3 Tier: 0
- Number of USB2 Tier: 0
- Rated Voltage: 20 V
- Rated Current: 3 A
- Operating Temperature: -10°C to +60°C
- Flammability: VW-1
Physical Parameters
- Length: 4 m
- Cable Diameter: 5.3 mm
- Jacket Material: TPE
- Wire Material: Copper, 28 AWG
- Mold Material: PVC
- Pin Coating: Gold-plated
- Bending Radius: 21.2 mm
- Pulling Force: 4 kg
- Compliance: RoHS
- Color: Black
