Description

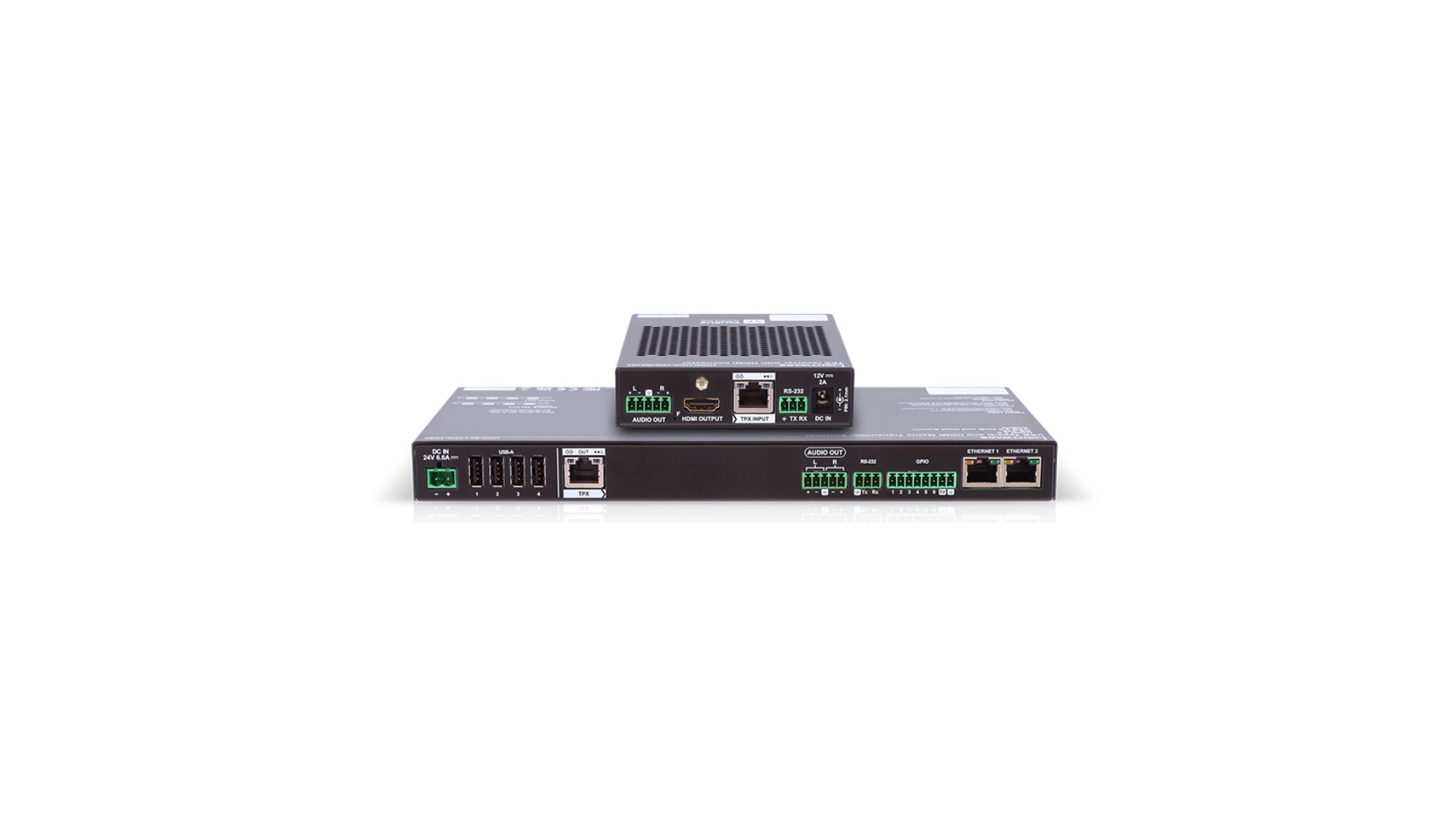

Lightware’s universal transmitter-receiver configuration provides the same functionality as the UCX product range in terms of signal management and connectivity. (Such functionality includes video resolution up to 4K@60Hz 4:4:4 through the USB-C and HDMI inputs, easy USB host switching, and advanced security features). At the same time, the bundle overcomes the limitations imposed by the USB and HDMI cables and allows for the extension of video, audio, and control signals in one direction and the USB 2.0 data in the other up to a transmission distance of 100m.

Moreover, the transmitter can provide remote power to the connected receiver up to the power limit of 25.4W of the PoE+ specification.

Hardware Specifications

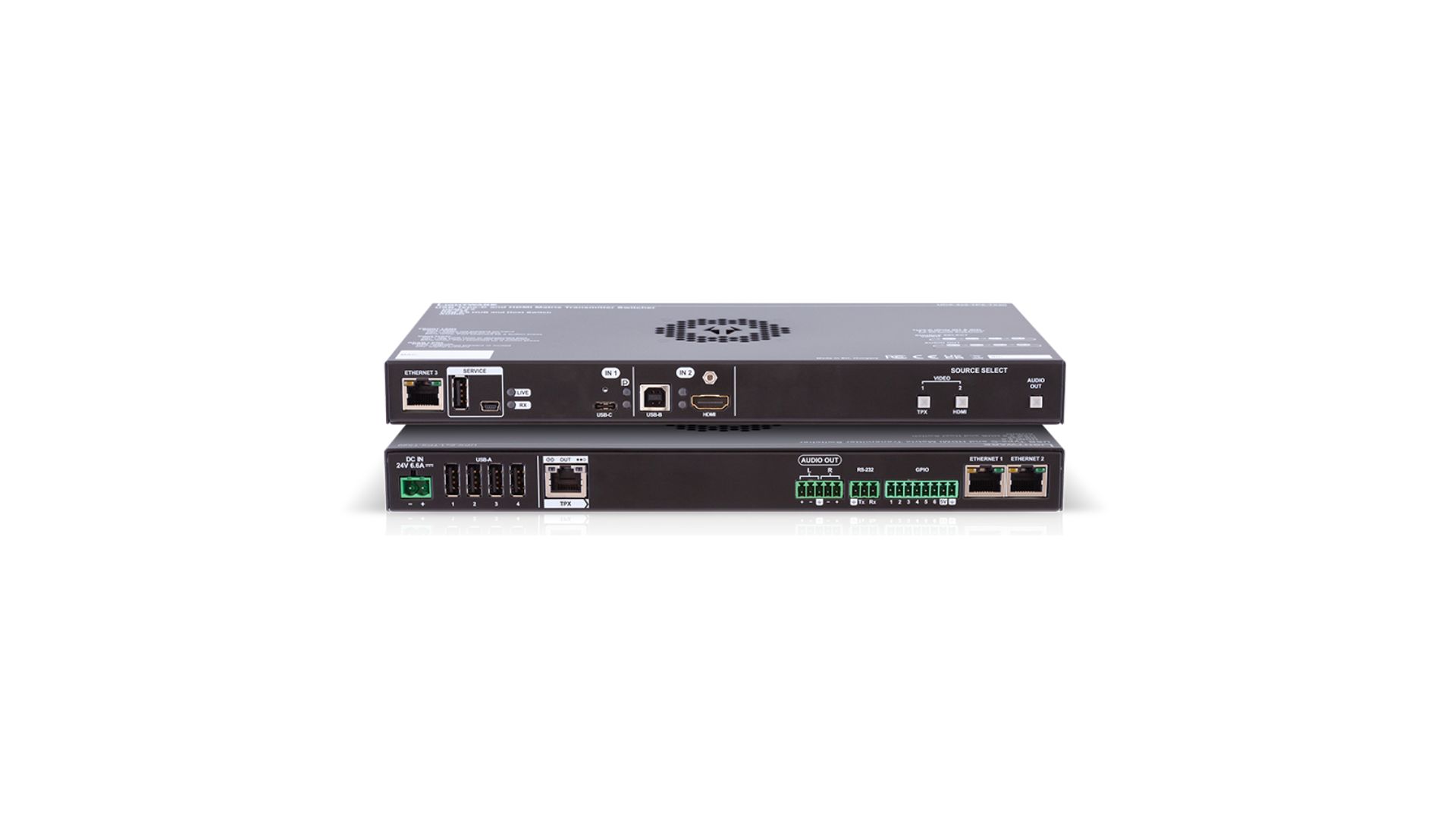

UCX-2×1-TPX-TX20

General

• Compliance: CE; UKCA
• Electrical Safety: IEC 61000-3-3:2013+AMD1:2017
• EMC (Emission): IEC/EN 55032:2015
• EMC (Immunity): IEC/EN 55035:2017
• RoHS: EN 63000:2018
• Warranty: 3 years
• Operating Temperature: 0° to +50°C (+32° to +122°F)
• Operating Humidity: 10% to 90%, non-condensing
• Cooling: Cooling fan

Power

• Power Supply Option: External 160W Power Supply (if remote powering UCX-TPX-RX)
• Supported Power Source: 100-240 V AC; 50/60 Hz
• AC Power Plug: Interchangeable (EU, UK, JP/US, AUS/NZ)
• Battery Cell Type: BR1632A

Enclosure

• Enclosure Material: 1 mm steel
• Dimensions in mm: 271 W x 140,3 D x 26 H
• Dimensions in inch: 10.7 W x 5.57 D x 1.01 H
• Weight: TBD

Video Inputs

USB-C Input

• Connector Type: 24-pole USB type C receptacle
• A/V Standard: DP 1.2a
• HDCP Compliance: HDCP 1.4, HDCP 2.2
• Color Space: RGB, YCbCr
• Video Delay: 0 frame
• Max. Video Resolution: 4096×2160@60Hz RGB 4:4:4 (up to 600MHz pixel clock); 1920×1080@120 Hz, 36 bit
• Audio Formats: all formats in line with HDMI 2.0 standard
• 3D Support: yes

HDMI Input

• Connector Type: 19-pole HDMI Type A receptacle (with screw locking option)
• A/V Standard: DVI 1.0, HDMI 1.4, HDMI 2.0
• Maximum Data Rate: 18Gbps
• Maximum Pixel Clock: 597MHz
• HDCP Compliance: HDCP 1.4, HDCP 2.2
• Color Space: RGB, YCbCr
• Video Delay: O frame
• Max. Video Resolution: 4096×2160@60Hz RGB 4:4:4 (up to 600MHz pixel clock); 1920×1080@120 Hz, 36 bit
• 5K Resolution: 5120×2160 HDMI 2.0: 30hz 4:4:4 or 60hz 4:2:0
• Max. Input HDMI Cable Length (with premium certified cable) at 3840×2160@60Hz 4:4:4: 5m
• Re-clocking: Pixel Accurate Re-clocking
• 3D Support: yes
• Audio Mode: Simultaneous pass-through and de-embedding to the Audio layer
• Supported Audio Formats for Pass-through: All HDMI2.0 audio formats
• Supported Audio Formats for De-embedding: Uncompressed

Compressed: Dolby Digital, DTSCompressed HBR, Dolby TrueHD, DTS-HD

Video Outputs

HDMI Output

• Connector Type: 19-pole HDMI Type A receptacle
• A/V Standard: DVI 1.0, HDMI 1.4, HDMI 2.0
• HDCP Compliance: HDCP 1.4, HDCP 2.2
• Color Space: RGB, YCbCr
• Supported Resolutions: Up to UHD/4K@60Hz 4:4:4
• Audio Formats: 8 channel PCM, Dolby TrueHD; DTS-HD Master Audio 7.1

Audio Ports

Analog Audio Output

• Connector Type: 5-pole Phoenix connector
• Audio Formats: 2-ch PCM
• Sampling Frequency: 48 kHz
• Volume: -95.62 dB-0 dB
• Balance: -100 +100 (0 = center)

Control Ports

GPIO Port

• Connector Type: 8-pole Phoenix
• Function (Pin 1-6): Configurable (input/output)
• Function (Pin 7): 5V output
• Function (Pin 8): Ground

USB Ports

• Host Port (UFP):
  • Connector Type: C-type receptacle
  • USB Compliance: USB 2.0
  • Connector Type: B-type receptacle
  • USB Compliance: USB 2.0
• Device Port (DFP):
  • Connector Type: A-type receptacle
  • USB Compliance: USB 2.0

Ethernet Port

• Connector Type: RJ45 female connector
• Ethernet Data Rate: 10/100/1000 Base-T, full duplex with auto detect
• Power over Ethernet (PoE): Not supported

USB Port

• Connector Type: A-type receptacle
• USB Compliance: USB 2.0
• Connector Type: mini B-type
• USB Compliance: USB 2.0

RS-232 Port

• Connector Type: 3-pole Phoenix connector
• Baud Rates: between 9600 and 115200 baud
• Data Bits: 8
• Parity: None Odd/Even
• Stop Bits: 1/2
• Output Voltage: Low Level: 3-15V
• Output Voltage: High Level: -15V – 3V

HDMI-UCX-TPX-RX107

General

• Compliance: CE; UKCA
• Electrical Safety: EN 62368-1:2014
• EMC (Emission): EN 55032:2015
• EMC (Immunity): EN 55035:2017
• RoHS: EN 63000:2018
• Warranty: 3 years
• Operating Temperature: 0° to +50°C (+32° to +122°F)
• Operating Humidity: 10% to 90%, non-condensing
• Cooling: passive

Power

• Power Supply Option: Power adaptor 12V /PoE PD
• Supported Power Source: 100-240 V AC, 50/60 Hz
• Power Consumption: 24W (TBC)

Power Adaptor

• Supplied power: 12V DC, 2A
• AC Power Plug: Interchangable (EU, UK, JP/US, AUS/NZ)
• DC Power Plug: Locking DC connector (2.1/5.5 mm pin)

Enclosure

• Rack Mountable: yes, with mounting accessories
• Enclosure Material: 1 mm steel
• Dimensions: 151.8 x 104.9 x 26 mm
• Weight: (TBD)

Video Ports

HDMI Output

• Connector Type: 19-pole HDMI Type A receptacle
• AV Standard: DVI 1.0, HDMI 20
• HDCP Compliance: HDCP 2.3
• Color Space: RGB, YCbCr
• Supported Resolutions at 8 Bits/Color: up to 4096×2160@60Hz (4:4:4)
• Audio Formats: 8-channel PCM, Dolby TrueHD, DTS-HD Master Audio 7.1

TPX Input

• Connector Type: RJ45 connector
• Power over Ethernet: POE PD (IEEE802.3af)
• Data Rate: 10GBase-T
• Compliance: AVXT
• HDCP Compliance: HDCP 2.3
• Transferred Signals: Video, Audio, USB 2.0, RS-232, OCS, Ethernet
• Color Space: RGB, YCbCr
• Supported Resolutions at 8 Bits/Color: up to 4096×2160@60Hz (4:4:4)
• Audio Formats: 8-channel PCM, Dolby TrueHD, DTS-HD Master Audio 7.1

Audio Ports

Analog Audio Output

• Connector Type: 5-pole Phoenix connector
• Audio Formats: 2-channel PCM
• Sampling Frequency: 48 kHz
• Signal Transmission: Balanced signals

Control Ports

Ethernet Port

• Connector Type: RJ45 female connector
• Number of Connectors per Unit: 2
• Ethernet Data Rate: 1GBase-T, full duplex with autodetect

RS-232 Serial Port

• Connector Type: 3-pole Phoenix connector
• Default Settings: 9600 BAUD, 8N1
