Description

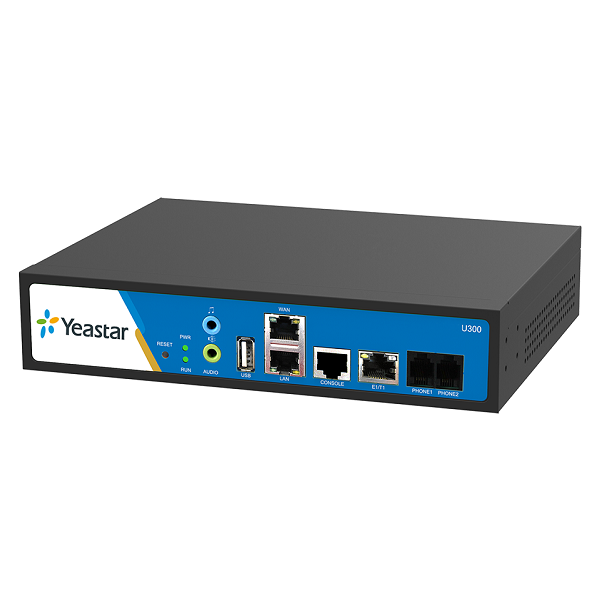

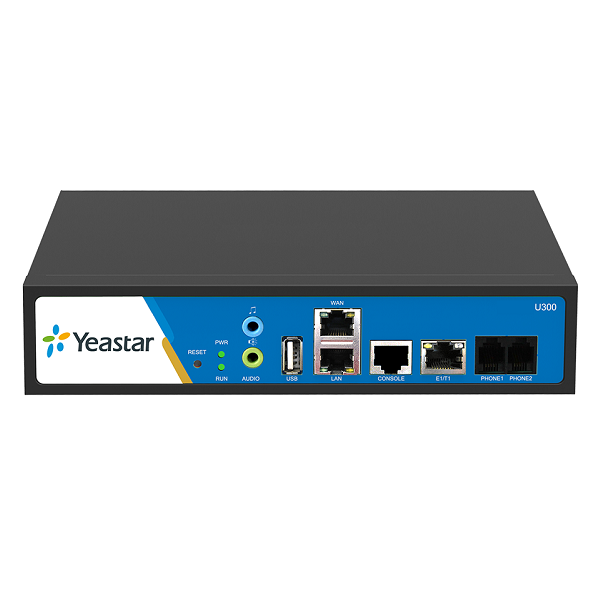

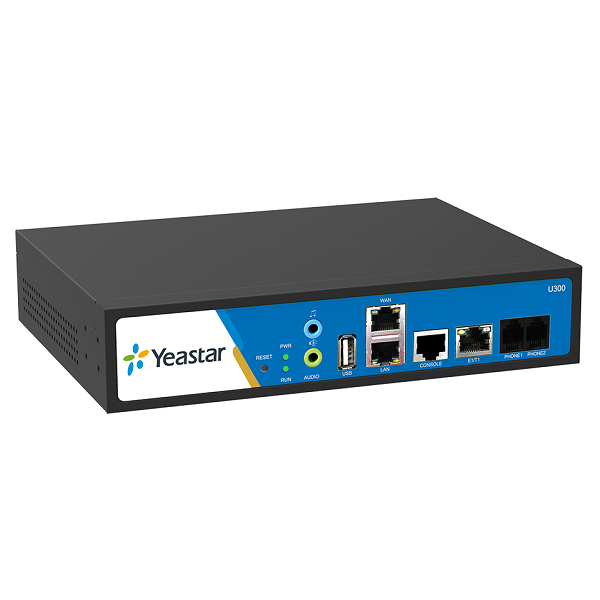

MyPBX U300 – IP-PBX for SMBs The new compact, feature rich PBX for every-day use.MyPBX U300 boasts an embedded PRI (E1/T1/J1) port and 2 FXS ports in the one compact system, providing higher density trunking for offices using E1 PRI signaling. This system supports up to 300 users and 50 concurrent calls. Also it could be used as a gateway to legacy PBX systems in applications.
SPECIFICATION
Users: 300
Concurrent Calls: 50
Voicemail: Default 3000min
Interface:
One E1/T1/J1 ports (Support PRI,MFC R2,SS7), 2 FXS Ports
One RS232 Port
LAN: 1 (10/100Mbps)
WAN: 1 (10/100Mbps)
USB: 1 (USB2.0)
Audio In/Out: Supported
Size: 213x160x44 mm (1U half-width)
Weight: 1.2kg
Power Supply: AC 100-240V 50/60Hz 0.5A MAX
SIP Protocol: SIP(RFC3261), IAX2
Transport Protocol: UDP,TCP,TLS,SRTP
Codec: G.711, GSM, SPEEX, G.722, G.726, ADPCM, G.729 A, H261,
H263,H263p, H264 ,MPEG4.
DTMF: Inband, RFC2833, SIP INFO
Echo Cancellation: Supported
Network: Static IP, PPPoE, DHCP, Firewall, VLAN, DDNS, QoS,
DHCP Server,OpenVPN
Multiple Languages Support:
Chinese, Dutch, English, French, German, Hebrew, Korean, Italian,Polish,Portuguese, Romanian, Russian, Spanish, Thai, Turkish
FEATURES
Attend Transfer -Blind Transfer -BLF Support -Blacklist -Callback -CDR (Call Detail Records) -Call Forward -Call Parking -Call Pickup -Call Routing -Call Transfer -Call Waiting -Caller ID -Conference -Define Office Time -DDNS -Dial by Name -DISA (Direct Inward System Access) -DIDs -Distinctive Ringtone -DND (Do Not Disturb) -FAX (T.38) -Firewall -Follow Me -IVR (Interactive Voice Response) -Intercom/Zone Intercom -Mobility Extension -Multi-language Prompt -Music On Hold -Music On Transfer -MyTwins (Double System) -One touch record -OpenVPN -Phone Provisioning -PIN User
