Description

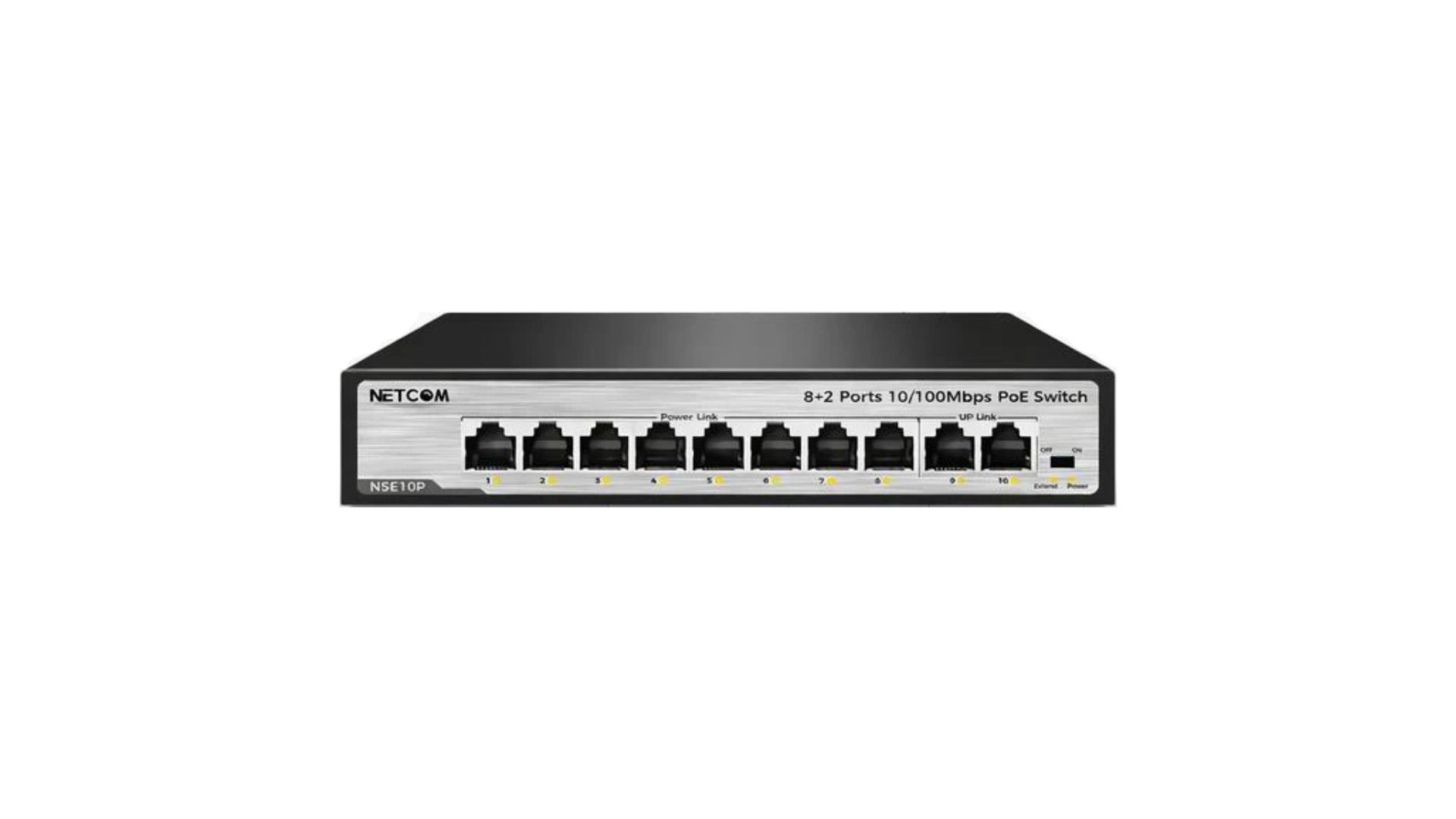

The NSE10P PoE switch features a high-speed ethernet switching chip and large backplane bandwidth for stable, high-performance data transmission. It includes 8 PoE ports and 2 uplink ports, supporting IEEE 802.3af standard with up to 15.4W per port and 130W total power. The switch automatically detects and powers compatible devices, ensuring efficient and reliable PoE network operation.

Product Features

• High-Speed Performance:
  • Uses an advanced ethernet switching chip and high backplane bandwidth to ensure smooth, stable, and fast data transmission.
• Flexible Port Configuration:
  • Equipped with 8x 10/100 Mbps PoE ports and 2x 10/100 Mbps uplink ports for efficient network expansion.
• Compliant with IEEE 802.3af Standard:
  • Supports up to 15.4W per port and 100W total PoE power, automatically detects and powers IEEE-compliant PD devices.
• Intelligent Power Management:
  • Auto power detection with priority mechanism to protect and optimize power distribution among ports.
• Stable Data Forwarding:
  • Each port supports MDI/MDIX auto-flip, IEEE 802.3x full-duplex, and backpressure half-duplex for reliable communication.
• Plug And Play Operation:
  • No configuration required; strong compatibility and easy deployment.
• Flexible And Cost-Effective:
  • Simplifies installation by eliminating separate power lines, ideal for cost-efficient network setups.
• Wide Application Range:
  • Perfect for offices, campuses, hotels, hospitals, malls, and SMEs requiring stable PoE power and fast network performance.

Technical Specifications

• Model: NSE10P
• PoE port: 1 to 8 IEEE802.3 af
• SFP port: No support
• PoE port output power: 15.4W
• PoE wire core: 1/2+,3/6-
• PoE total power: ≤130W
• PoE connection standard: IEEE802.3 AF
• PoE type: End Transconnection
• Network standards:
  • IEEE 802.3
  • IEEE 802.3 i
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3af
• Network media: 10/100 BASE-TX: 5 class and above unshielded twisted pair
• Backplane bandwidth: 2 Gbps
• Forwarding mode: Storage Forwarding
• Forward Rate:
  • 10BASE-T: 14880pps/port
  • 100BASE-TX: 148800pps/port
• MAC address list: 2K
• Indicator: access to power priority mechanism, fast and forwarding, MAC automatic learning and aging
• Working Environment: -25-50°C
• Input Power: 100-240VAC 1A
• Power: PoE status indicator lamp power indicator
• Weight: 1kg
• Size: 200mm*118mm*44mm (L*W*H)
